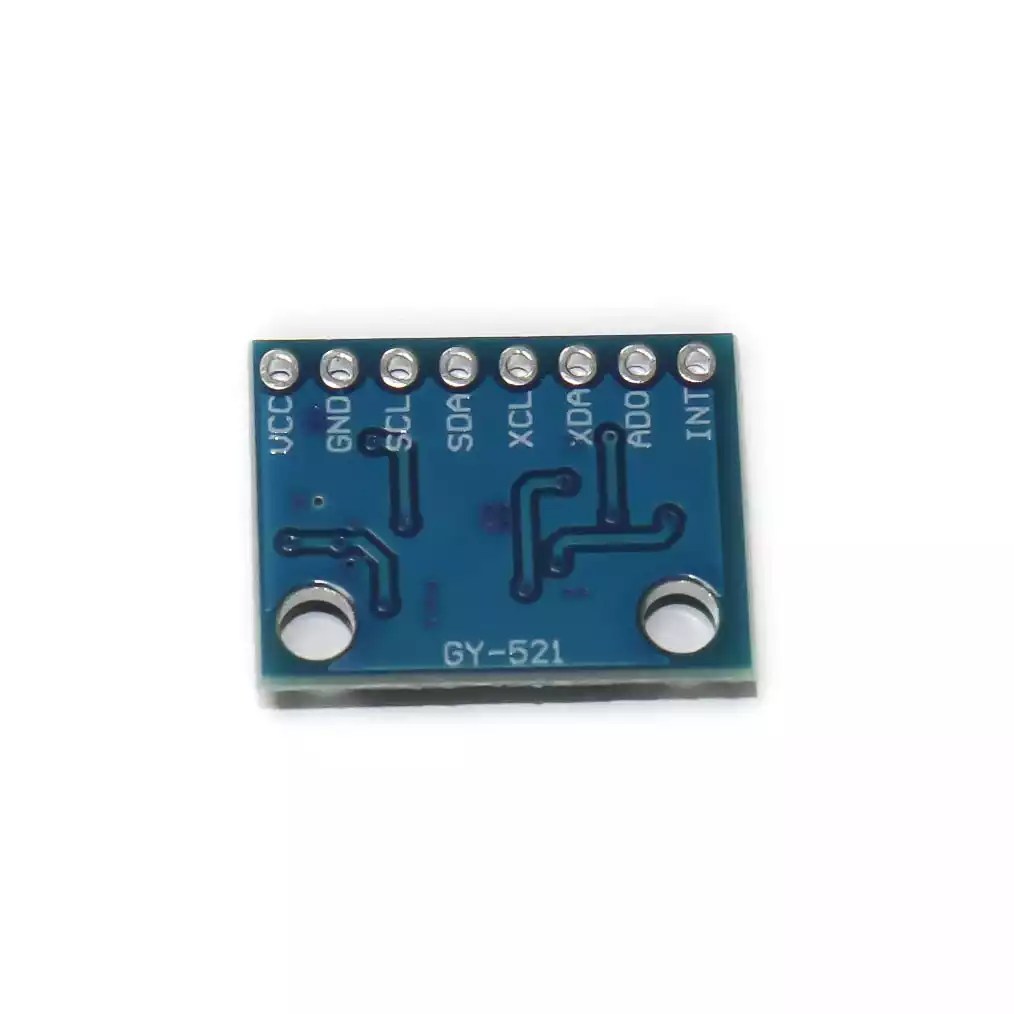

MPU-6050 3-Axis Accelerometer and Gyro Sensor
Original price was: ₹399.00.₹139.00Current price is: ₹139.00. (Excl. 18% GST)
Price (Excl. GST): ₹139.00
Price (Incl. GST): ₹164.02
- Chip built-in 16bit AD converter, 16-bit data output
- Driver Chip: MPU6050
- Operating Voltage: 3-5V DC
- Communication: I2C/IIC Protocol
- Gyro Range: ± 250, 500, 1000, 2000 °/s
- Accelerometer Range: ± 2 ± 4 ± 8 ± 16 g
| Weight | 10 g |
|---|---|
| Dimensions | 20 × 16 mm |
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The MPU-6050 3-Axis Accelerometer and Gyro Sensor module use MPU-6050 which is a little piece of motion processing tech. The MPU6050 datasheet is available in the attachment section to get this visit.
There are different types of magnetometers are available the basic differences between MPU6000, MPU6050 and MPU6500 is:
| MPU6000 | MPU6050 | MPU6500 |
| 1. A sampling rate of 8 kHz. | 1. A sampling rate of 8 kHz. | 1. A sampling rate of 32 kHz. |
| 2. Supports SPI and I2C interface. But I2C is too slow to handle 8 kHz gyro update. | 2. Supports I2C interface communication protocol. | 2. Supports both I2C and SPI interface. |
| 3. Vibration Sensitivity is better than MPU6500. | 3. Vibration Sensitivity is better than MPU6500 but the speed of operation is less than MPU6000. | 3. It is more susceptible to vibrations, so the need for some vibration isolation methods.
It is faster than both MPU. |
The MPU6050 devices combine a 3-axis gyroscope and a 3-axis accelerometer on the same silicon together with an onboard Digital Motion Processor (DMP) capable of processing complex 9-axis Motion Fusion algorithms. To get more insights about specifications visit the MPU6050 datasheet.
Features :
- Chip built-in 16bit AD converter, 16-bit data output.
- I2C Digital-output of 6 or 9-axis MotionFusion data in rotation matrix, quaternion, Euler Angle, or raw data format.
- Selectable Solder Jumpers on CLK, FSYNC, and AD0.
- Digital Motion Processing™ (DMP™) engine offloads complex MotionFusion, sensor timing synchronization, and gesture detection.
- Embedded algorithms for run-time bias and compass calibration. No user intervention is required.
- Digital-output temperature sensor.

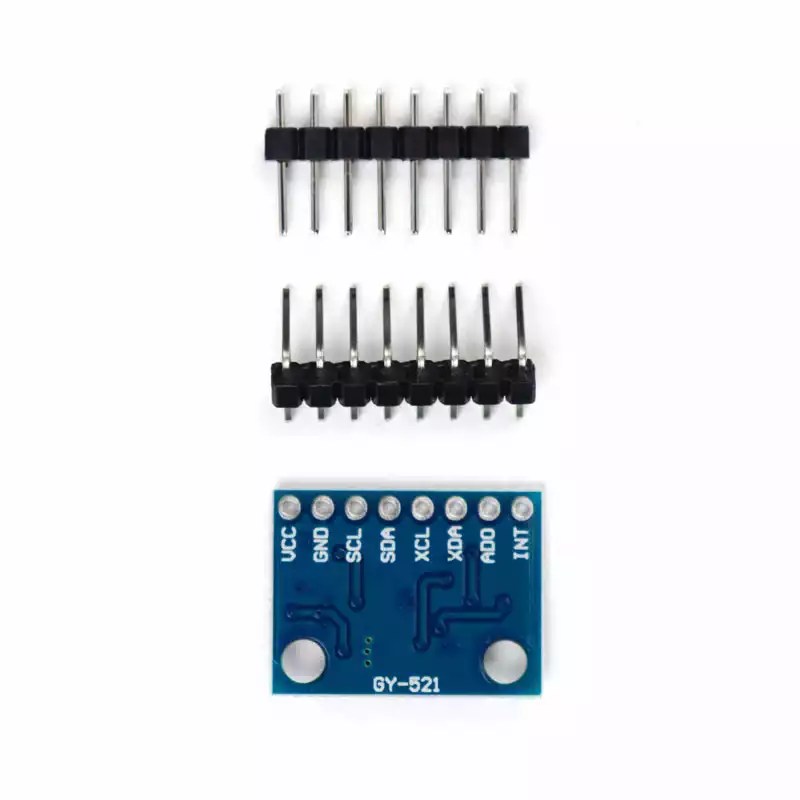

Package Includes:
1 x MPU-6050 Gyro Sensor 2 + Accelerometer.
1 x 1*8 Burg connector Pins(Right angle).
1x 1*8 Burg connector Pins(Straight).
