12mm 12528 LDR 10- 20K
SKU:
SEN0165
Original price was: ₹59.00.₹29.00Current price is: ₹29.00. (Excl. 18% GST)
- Diameter: 12 mm
- No. of pins: 2
- Type of mounting: PCB Through Hole
- Maximum Operating Temperature: +70ËšC (Approx.)
- Dark resistance: 1-20MΩ
- Spectral peak: 560nm
- Maximum voltage: 250 VDC
- Maximum wattage: 200 mW
- Light resistance (10 Lux): 10-20 KΩ
- Dark resistance: 2 MΩ
- Resistance illumination: 3
- Response time: 20ms (Rise), 30ms (Down)

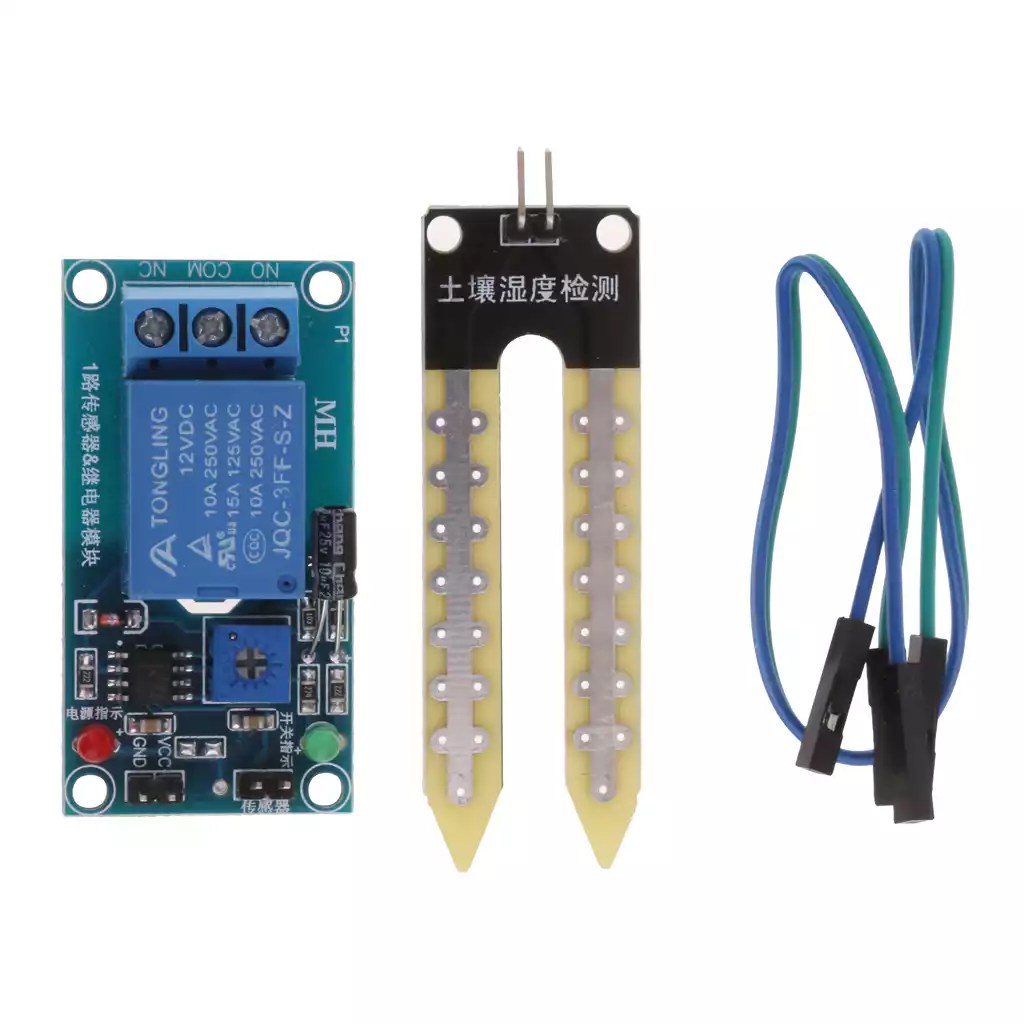

12V Soil hygrometer Humidity Detection Module Moisture Monitoring Module Automatic Watering Device Garden Sensor
SKU:
SEN0061
Original price was: ₹999.00.₹229.00Current price is: ₹229.00. (Excl. 18% GST)
- Power supply voltage: 12V DC
- Input current: More than 100ma
- Load: 250V 10A AC or 30V 10A DC(suitable for any current less than this current)
13.56Mhz MFRC-522 RC522 RFID + S50 Card + Keychain(Original Chip)
SKU:
SEN0178
Original price was: ₹141.93.₹65.00Current price is: ₹65.00. (Excl. 18% GST)
- Voltage:Â DC 3.3V (Do not use 5V supply)
- Operating Current :13-26mA
- Idle Current :10-13mA
- Operating Frequency: 13.56MHz
- Highly integrated analog circuitry to demodulate and decode responses
- Supports ISO/IEC 14443 A/MIFARE
- Typical operating distance in reading/Write mode up to 50 mm
13.56Mhz RC522 MFRC- 522 RFID Module
SKU:
SEN0179
Original price was: ₹124.50.₹60.00Current price is: ₹60.00. (Excl. 18% GST)
- Integrated MF RC522
- 13.56MHz contactless communication card chip.
- Low-voltage, low-cost, small size of the non-contact card chip to read and write.
- Suitable for Smart meters and portable handheld devices.
- Advanced modulation and demodulation concept completely integrated in all types of 13.56MHz passive contactless communication methods and protocols.
- 14443A compatible transponder signals.
- ISO14443A frames and error detection.
- Supports rapid CRYPTO1 encryption algorithm, terminology validation MIFARE products.
- MFRC522 support MIFARE series of high-speed non-contact communication, two-way data transmission rate up to 424kbit/s.
- Low cost, and ideal for user equipment development.
- The reader and RF card terminal design meets advanced applications development and production needs.
- Can be directly loaded into the various reader molds, very convenient.
13.56MHz RFID IC Key Tags
SKU:
SEN0181
Original price was: ₹58.00.₹16.00Current price is: ₹16.00. (Excl. 18% GST)
- Material : ABS
- Chip Type : FM1108 Fudan
- Response Frequency : 13.56 MHz
- Dimensions (mm) LxWxH : 40.5 mm * 32 mm * 4.2 mm
- Memory Capacity : 8 Kbit
1×4 4 Key Matrix Membrane Switch Keypad Keyboard Control Panel SCM Extended Keyboard
SKU:
SEN0189
Original price was: ₹229.00.₹51.80Current price is: ₹51.80. (Excl. 18% GST)
- Ultra-thin design & adhesive backing provides easy integration to any project
- Excellent price-performance ratio
- Easy communication with any microcontroller
- Mount Style: Self-Adherence
- Max. Circuit Rating: 35 VDC, 100 mA.
- Contact Bounce : <=5ms
- Life Expectancy : 1 million closures
- Operation Temperature : -20 to +40 °C

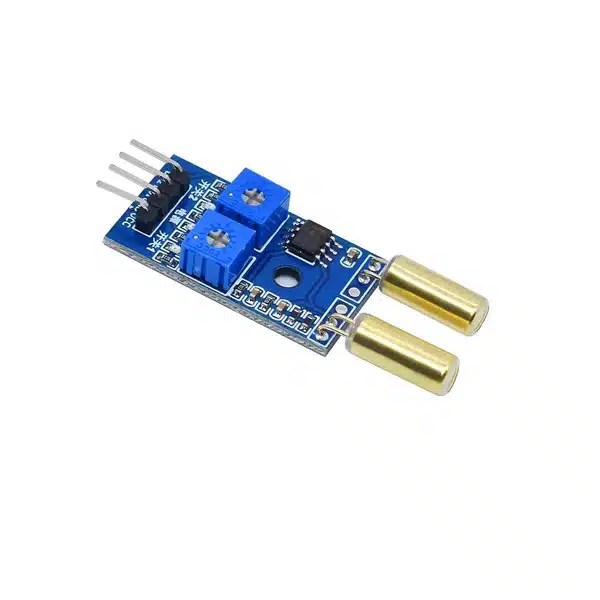

2 Channel Tilt Sensor Module
SKU:
SEN0097
Original price was: ₹554.00.₹149.00Current price is: ₹149.00. (Excl. 18% GST)
- Operating voltage 3.3V-12V
- AÂ fixed bolt hole for easy installation
- Wide voltage LM393 comparator
- Maximum output current: 15mA
- Can work on low voltages
25*25*8mm 28db High Gain 5cm Length Built- in Ceramic Active GPS Antenna for NEO-6M NEO-7MNEO-8M
SKU:
SEN0197
Original price was: ₹199.00.₹89.00Current price is: ₹89.00. (Excl. 18% GST)
- Product: ceramic antenna cable
- Frequency: 1575.42MHz ± 4 MHz
- Antenna gain: 28dB
- Operating temperature: -45 ~ +85
- Polarization: right-hand circular polarization
- Interference suppression: 30dB ± 100MHz
- Weight: 15g
2X2 Matrix 4 Button Module
SKU:
SEN0190
Original price was: ₹98.00.₹42.00Current price is: ₹42.00. (Excl. 18% GST)
- 2×2 Matrix Keyboard Module with 4 buttons
- Small in size and hence Save space
- More convenient to use
- Expanded development application modules for single chip
- With 4 keys and 4 pin
3 Channel Path tracing Module
SKU:
SEN0130
Original price was: ₹384.00.₹158.00Current price is: ₹158.00. (Excl. 18% GST)
- Working voltage: 5V
- Uses infrared light detection, anti-jamming capability, using CTRT5000 sensor, adjustable sensitivity, stable performance
- With lights, a fixed bolt hole for easy installation
3-Way Soil Meter For Moisture Light Intensity and pH Testing Meter
SKU:
SEN0202
Original price was: ₹499.00.₹250.00Current price is: ₹250.00. (Excl. 18% GST)
- Three different soil test meters in one device; Measures moisture, pH/Acidity, and light.
- Measures moisture, pH/Acidity, and light.
- 100% Accuracy; Easy to read moisture, pH and light levels.
- Compact, portable & easy to use, just plug and use.
- Compact soil meter works indoor/outdoors.
3.3-5.5V HC-SR04+ Ultrasonic Sensor 4pin
SKU:
SEN0041
Original price was: ₹150.00.₹99.00Current price is: ₹99.00. (Excl. 18% GST)
- Power Supply +5V DC
- Working Current 15mA
- Output Signal Electrical frequency signal
- Ranging Distance 2cms – 400 cms
- Resolution 0.3 cm
360 Degree Trajectory Ball Module Hall Effect Sensor
SKU:
SEN0088
Original price was: ₹649.00.₹357.00Current price is: ₹357.00. (Excl. 18% GST)
- Operating Voltage: 2.5-5.25 V
- Operating Temperature:20~70 °C
- Material: Plastic.
- Application: Electronic Circuits.
- Dimensions: 28 x 22 x 8 (LxWxH) mm
- Weight: 2 gm
37 pcs Sensors Kit compatible with Arduino
SKU:
SEN0174
Original price was: ₹1,618.50.₹880.00Current price is: ₹880.00. (Excl. 18% GST)
- For beginners who are interested in Arduino
- A complete set of Arduino’s most common and useful electronic components
- Infrared sensor receiving module
- Laser sensor module
- Temperature and humidity sensor module
- Infrared sensor module
- 5v relay module
- Obstacle avoidance sensor module.
37 Sensor Kit V2.0
SKU:
SEN0176
Original price was: ₹3,095.07.₹1,450.00Current price is: ₹1,450.00. (Excl. 18% GST)
- For beginners who are interested in Arduino
- A complete set of Arduino’s most common and useful electronic components
- Infrared sensor receiving module
- Laser sensor module
- Temperature and humidity sensor module
- Infrared sensor module
- 5v relay module
- Obstacle avoidance sensor module.
3M GPS GLONASS GNSS Antenna with SMA Male Connector
SKU:
SEN0197-2
Original price was: ₹399.00.₹211.02Current price is: ₹211.02. (Excl. 18% GST)
- The antenna assembly consists of a patch antenna for receiving GNSS signals and a preamplifier for signal amplification.
- Power supply to the antenna preamplifier must be provided by the application on the same RF signal trace as the GNSS RF signal is carried to the application.
- The antenna has an internal magnet so that it can be fixed on a metallic surface.
- Easy to use an antenna. Does not require RF or antenna knowledge.
3mm 3528 LDR 10-20K
SKU:
SEN0164
Original price was: ₹30.00.₹16.00Current price is: ₹16.00. (Excl. 18% GST)
- Diameter: 3mm
- No. of Pins: 2
- Type of Mounting: PCB Through Hole
- Maximum Operating Temperature: +80°C (Approx.)
- Dark resistance:1-20 Mohm
3PIN IR Infrared Flame Detection Sensor Module
SKU:
SEN0089
Original price was: ₹89.90.₹29.00Current price is: ₹29.00. (Excl. 18% GST)
- 1.Can detect the flame or the light with the wavelength at the range of 760 nm to 1100 nm.
- 2.The detection angle is about 60 degrees,extremelty sensitive to the flame spectrum.
- 3.Sensitivity is adjustable. (shown in blue digital potentiometer)
- 4.The comparator output with clean signal,good waveform,strong driving ability of more than 15mA.
- 5.With an adjustable precision potentiometer to adjust the sensitivity.
- 6.Operating voltage:3.3V-5V.
- 7.The output form:DO digital switching outputs (0 and 1).
- 8.A fixed bolt hole is set for easy installation.
- 9.Small plates PCB size:3.2cm * 1.4cm.
- 10.Using LM393 comparator with wide voltage.
3pin Photosensitive Sensor Module Light- Dependent Control LM393
SKU:
SEN0092
Original price was: ₹95.00.₹29.00Current price is: ₹29.00. (Excl. 18% GST)
- Operating Voltage: 3.3V to 5V
- Operating Current: 15mA
- Length: 32mm
- Width: 14mm
- Height: 8mm
- Weight: 3g

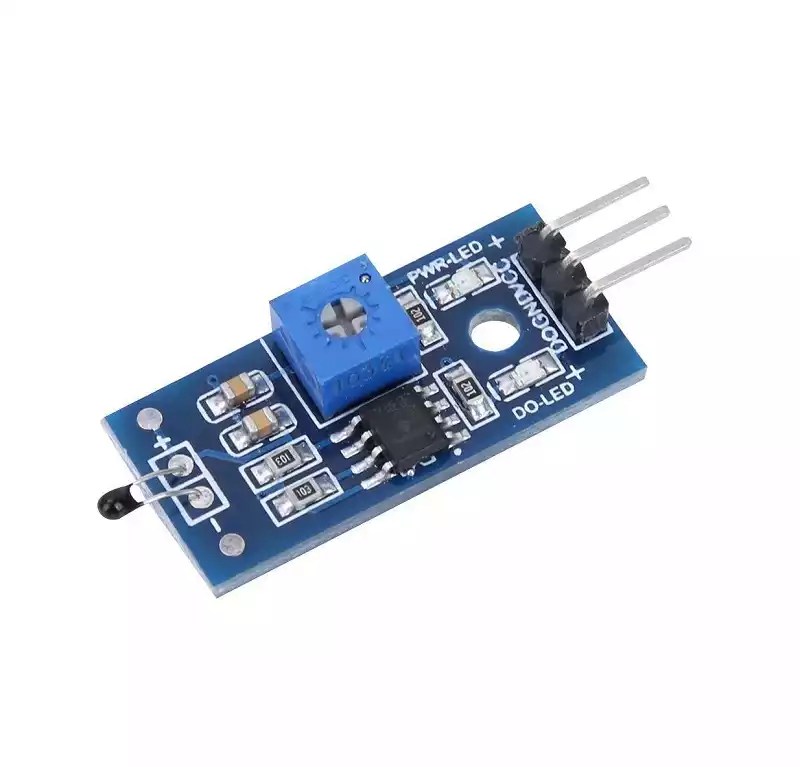

3pin Thermal Thermistor Temperature Sensor Module
SKU:
SEN0094
Original price was: ₹159.00.₹36.00Current price is: ₹36.00. (Excl. 18% GST)
- Adopt the NTC thermistor sensor, sensitivity is good
- The comparator output, signal clean, good waveform, driving ability is strong, for more than 15 ma.
- With potentiometer to adjust the temperature detection threshold
- Working voltage: 3.3 V to 5 V
- Output form: digital switch output (0 and 1)
- It has a fixed bolt hole, convenient installation
