W25Q32 Large Capacity Flash Storage Module
Original price was: ₹120.00.₹50.00Current price is: ₹50.00. (Excl. 18% GST)
Price (Excl. GST): ₹50.00
Price (Incl. GST): ₹59.00
- Support SPI interface
- Provide STM32 test code
-
Capacity: 32M-bit / 4M-byte
-
The clock frequency is less than 104MHz
-
Operating voltage: 2.7~3.6V
-

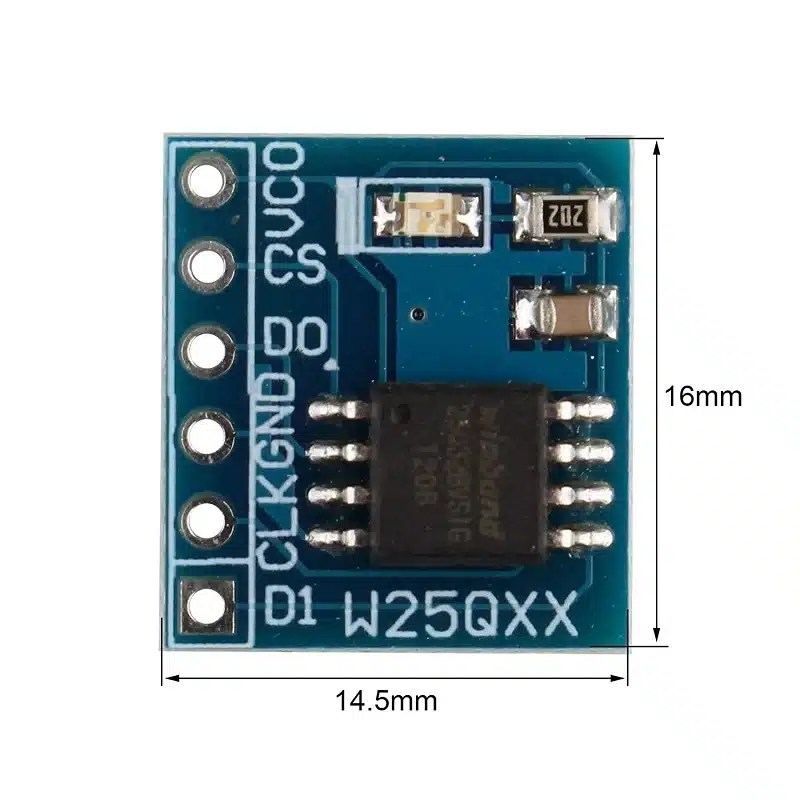

Size: 14mm * 15mm
7 in stock
Out of stock
Out of stock
6 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The W25Q32JV (32M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins, and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP), and storing voice, text, and data. The device operates on a single 2.7V to 3.6V power supply with 1µA for power-down. All devices are offered in space-saving packages.
Features:
- Support SPI interface
- Provide STM32 test code
- Using serial Nor flash external extender memory chip W25Q32
Package Includes:
1 x W25Q32 Large Capacity Flash Storage Module
