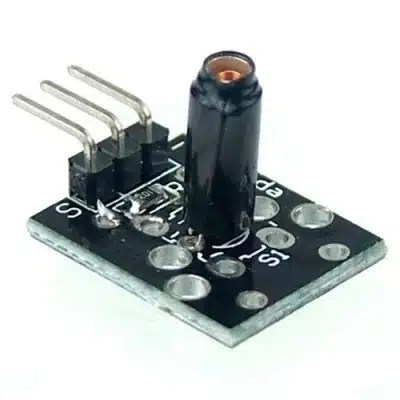

KY-002 Vibration Switch Module
Original price was: ₹99.00.₹24.00Current price is: ₹24.00. (Excl. 18% GST)
Price (Excl. GST): ₹24.00
Price (Incl. GST): ₹28.32
- Component Type SW- 18015P
- Maximum Voltage(V)- 12
- Rated Heating Current(mA)- 20
- PCB Size ( L x W ) mm- 20 x 15
- Height (mm)- 18
80 in stock
Out of stock
8 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The KY-002 Vibration Switch Module is a reliable module designed to detect shocks and vibrations with precision. It features a conductive outer casing and an internal spring. When the sensor experiences a shock, the spring compresses and makes contact with the outer casing, generating an electrical signal. This simple mechanism ensures quick and accurate detection of vibrations.
The KY-002 operates within a voltage range of 3.3 V to 5 V, making it versatile for various applications. Its compact size allows for easy integration into different projects. Due to its robustness and ease of use, the KY-002 is ideal for security systems to monitor vibrations on doors and windows. It is also useful in industrial automation for detecting unusual vibrations in machinery and systems, and can be applied in sports and fitness to measure impacts and vibrations during physical activities.
Pin Connection:
- GND- connect to GND of the Arduino
- Middle Pin +5 v- connect to Arduino +5
- Pin S signal,- connect to Arduino pin 10
Features :
- No direction, any angle can trigger the work.
- Sensitivity switches can be selected for the trigger sensitivity according to circuit requirements.
- This switch is suitable for the trigger of the small current circuit.
Package Includes :
- 1 x KY-002 Vibration Switch Module
