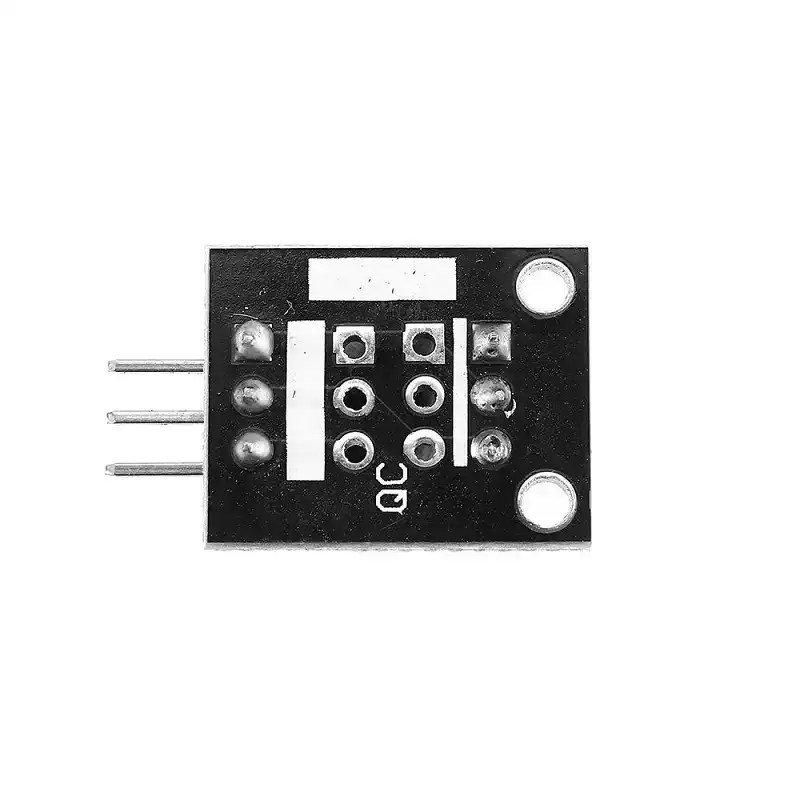

KY-001 DS18B20 Temperature Sensor Module
Original price was: ₹208.05.₹69.00Current price is: ₹69.00. (Excl. 18% GST)
Price (Excl. GST): ₹69.00
Price (Incl. GST): ₹81.42
- Digital signal output
- 18B20 Temperature Sensor Chip
- Resolution adjustment ranges from 9-12 bytes.
- Send data via a pin
- Temperature measurement ranges: -55°C to +125°C, be accurate to 0.5°C.
| Weight | 9 g |
|---|---|
| Dimensions | 19 × 15 × 6 mm |
56 in stock
28 in stock
8 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The KY-001 DS18B20 Temperature Sensor Module functions as a digital thermometer that seamlessly integrates with Arduino using a simple setup involving only a 4.7kΩ resistor. Its connection scheme is straightforward: connect ground to pin 1, output to pin 2 with a resistor to the positive source at pin 3. Operating on the 1-wire protocol, multiple sensors can be daisy-chained to Arduino using a single shared wire. With a digital precision of 12 bits, it achieves temperature measurements with exceptional accuracy down to 0.0625°C.
Applications:
The DS18B20 Temperature Sensor finds utility in various settings including cold storage, granaries, storage tanks, telecommunications rooms, and electric power rooms for temperature measurement and control. It’s also suitable for industrial equipment like bearings, cylinders, and textile machinery, as well as for monitoring small spaces in air conditioning systems. Additionally, it serves in applications such as refrigerators, freezers, low-temperature drying ovens, heating/cooling pipe calorie measurement, household thermal energy measurement in central air conditioning systems, and industrial temperature measurement and control, among others.
Features:
- Digital signal output
- 18B20 Temperature Sensor Chip
- Resolution adjustable within the 9-12 byte range
- Data transmission via a pin
- Temperature measurement range: -55°C to +125°C, with accuracy up to 0.5°C.
Package Includes:
- 1 x KY-001 DS18B20 Temperature Sensor Module
