5V HC-SR04 Ultrasonic Sensor 4pin

This HC-SR04-Ultrasonic Sensor module is a very popular sensor that is found in many applications where it requires measuring distance and detecting objects.

The hc-sr04 ultrasonic module  is a versatile sensor module widely used for distance measurement in various applications. It utilizes ultrasonic waves to determine distances by measuring the time taken for the waves to reflect back from an object. This non-contact method is effective for obstacle avoidance, liquid level detection, and other tasks in robotics, automation, and IoT projects.

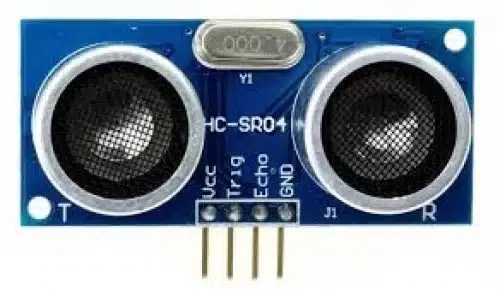

The module has two eyes like projects in the front which forms the Ultrasonic transmitter and Receiver.  The HC-SR04 ultrasonic sensor uses sonar to determine the distance to an object like bats or dolphins do.

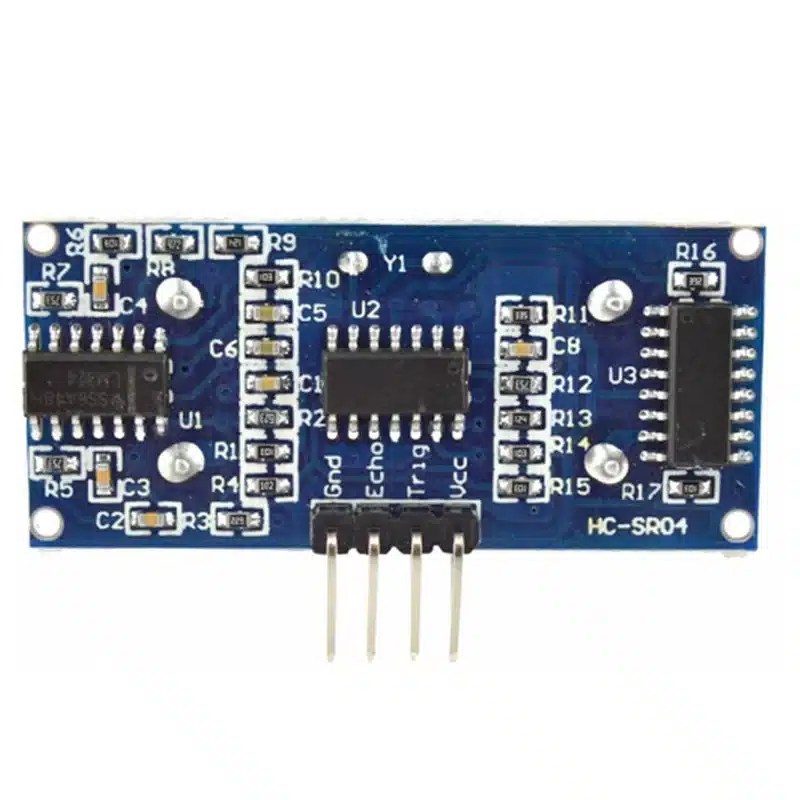

This Ultrasonic Sensor module is a transmitter, a receiver, and a control circuit in one single pack!! It has very handy and compact construction. It offers excellent range accuracy and stable readings in an easy-to-use package. Its operation is not affected by sunlight or black material like Sharp rangefinders are (although acoustically soft materials like cloth can be difficult to detect).

The Trigger and the Echo pins are the I/O pins of this module and hence they can be connected to the I/O pins of the microcontroller/Arduino. When the receiver detects the return wave the Echo pin goes high for a particular amount of time which will be equal to the time taken for the wave to return back to the sensor.

Ultrasonic Ranging Module HC-SR04 provides 2cm-400cm non-contact distance sensing capabilities, Ranging accuracy up to 3mm.

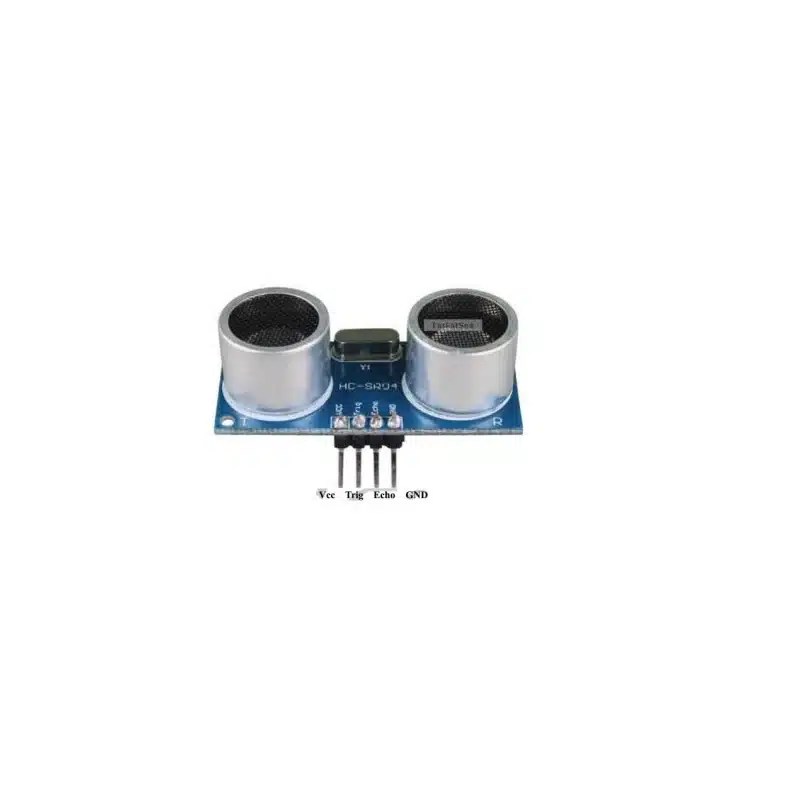

Wiring

+5V(positive)

Trig(control)

Echo(receive)

GND(negative)

Features :

1. Measures the distance within a wide range of 2cm to 400cm
2. Stable performance
3. Accurate distance measurement
4. High-density
5. Small blind distance

Package Includes:

1 x HC-SR04-Ultrasonic Sensor

Tutorials:

Please visit our website link provided below to understand how the product is working,

• HC-SR04-Ultrasonic Sensor Interfacing with 8051
• HC-SR04-Ultrasonic Sensor Interfacing with LPc2148
