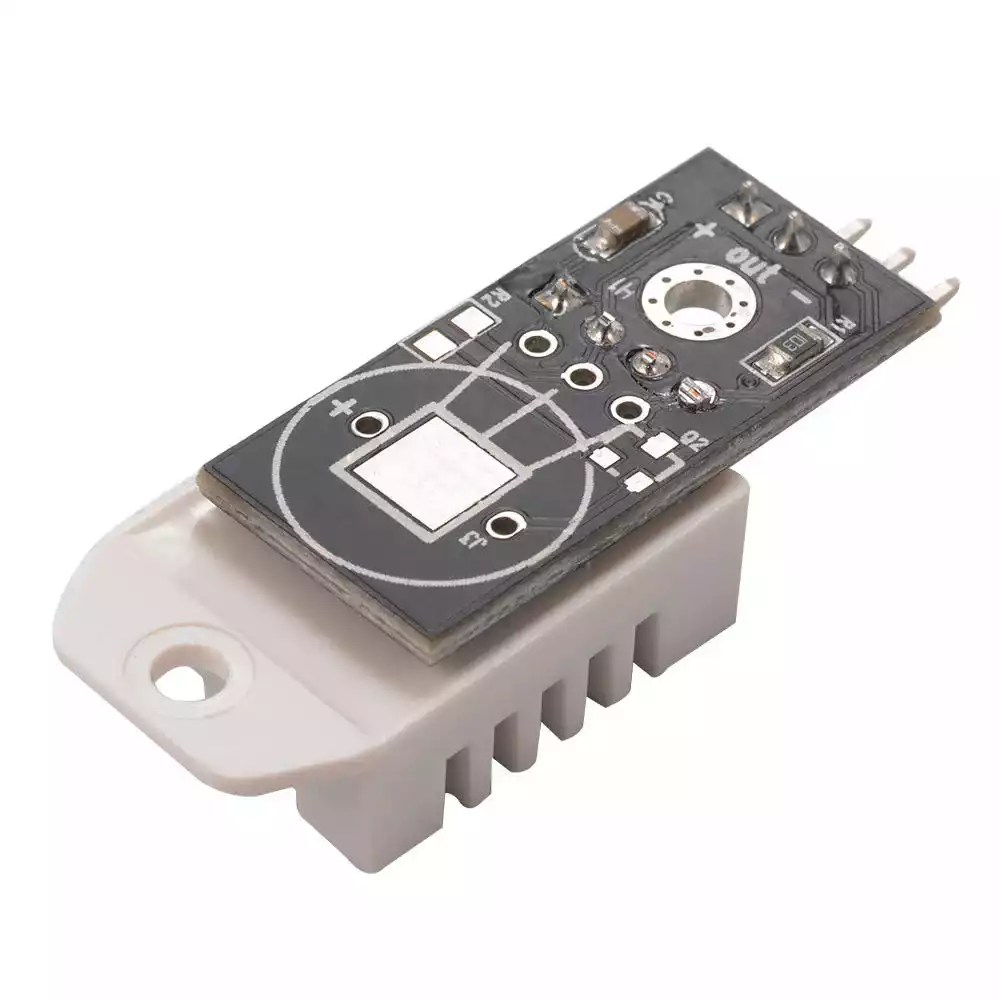

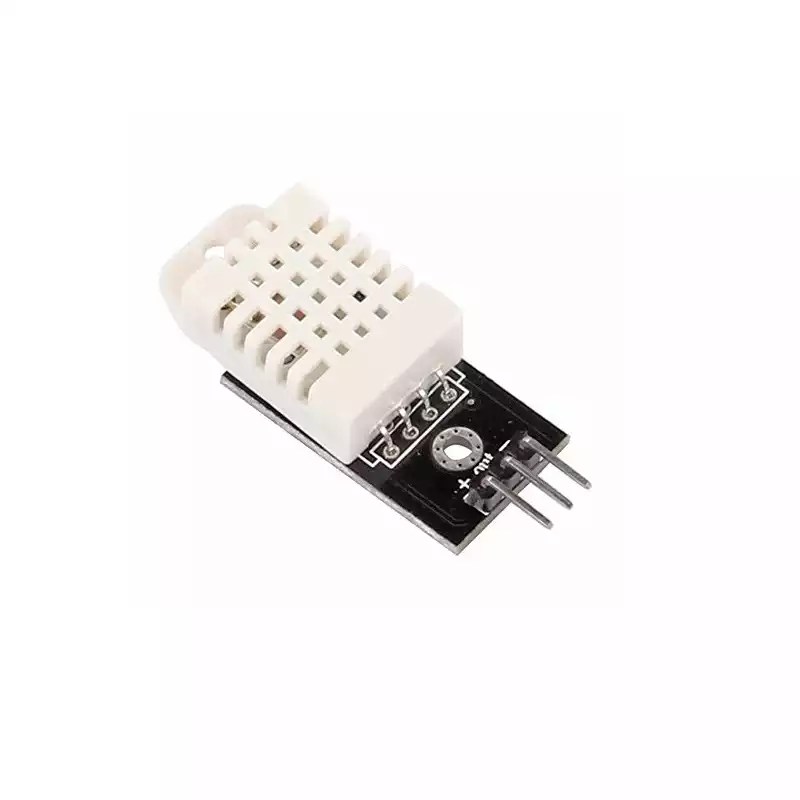

DHT22 Digital Temperature and Humidity Sensor Module
Original price was: ₹299.00.₹151.00Current price is: ₹151.00. (Excl. 18% GST)
Price (Excl. GST): ₹151.00
Price (Incl. GST): ₹178.18
- Measuring range: temperature -40-80 ℃; humidity 0; 99.9%RH
- Measurement accuracy (25℃): temperature: + 0.5; humidity: + 2%RH (10; 90%RH)
- Resolution: temperature: 0.1 ℃, humidity: 0.1%RH
- Attenuation value: temperature: <1℃ / year; humidity: < 1%RH/ years
- High precision
- Capacitive type
- Full range temperature compensated
- Relative humidity and temperature measurement
- Calibrated digital signal
- Outstanding long-term stability
| Weight | 7 g |
|---|---|
| Dimensions | 43 × 15 × 10 mm |
18 in stock
Out of stock
31 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
If you are wandering to build a device that detects temperature and humidity from the atmosphere, then This sensor is needed for you.
The DHT22 Digital Temperature and Humidity Sensor Module AM2302 is a basic, low-cost digital temperature and humidity sensor. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air and spits out a digital signal on the data pin (no analog input pins needed).
It’s fairly simple to use but requires careful timing to grab data. The only real downside of this sensor is you can only get new data from it once every 2 seconds, so when using our library, sensor readings can be up to 2 seconds old.
Simply connect the first pin on the left to 3-5V power, the second pin to your data input pin, and the rightmost pin to the ground. Although it uses a single wire to send data it is not Dallas One Wire compatible! If you want multiple sensors, each one must have its own data pin
Features :
- High precision
- Capacitive type
- Full range temperature compensated
- Relative humidity and temperature measurement
- Calibrated digital signal
- Outstanding long-term stability
- Extra components not needed
- Long transmission distance
- Low power consumption
- 4 pins packaged and fully interchangeable
Package Includes :

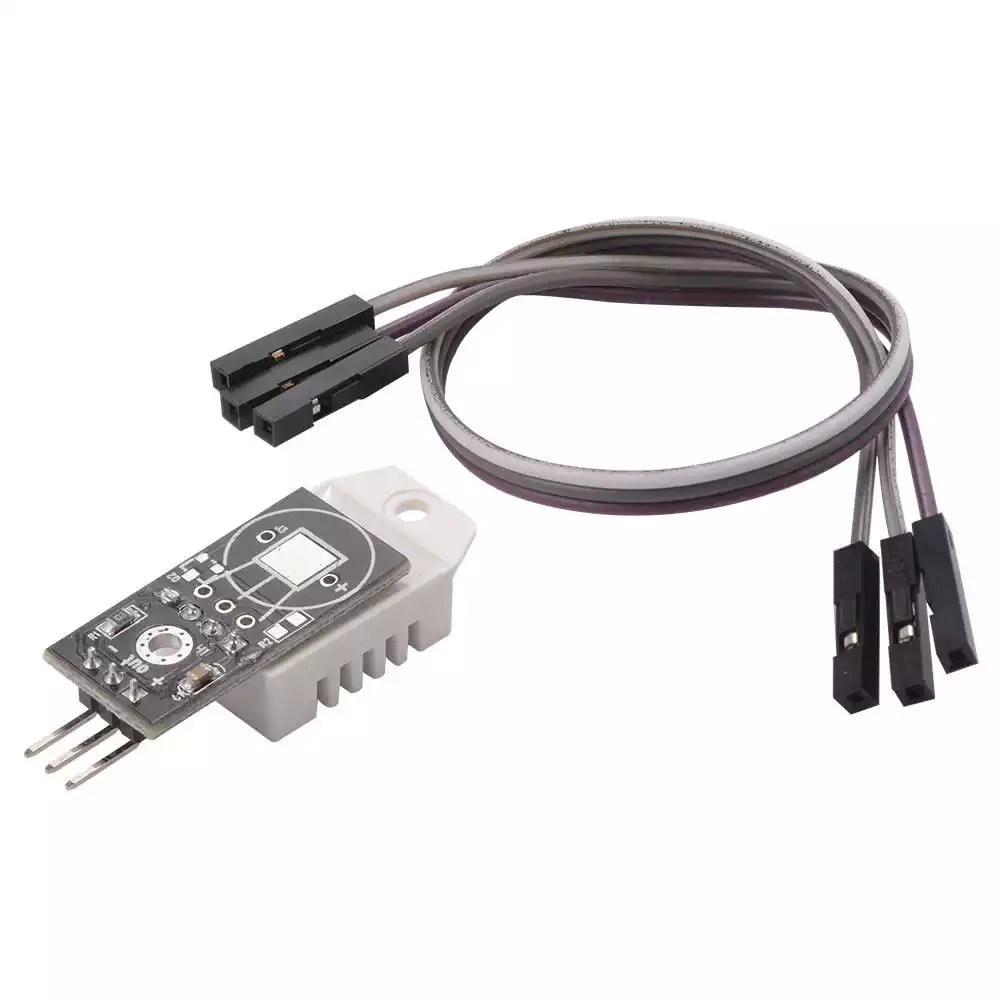

- 1 x DHT22 Digital Temperature and Humidity Sensor Module
- 1 x Connecting Cable
