DHT11 Temperature And Humidity Sensor Module with LED
Original price was: ₹139.00.₹50.00Current price is: ₹50.00. (Excl. 18% GST)
Price (Excl. GST): ₹50.00
Price (Incl. GST): ₹59.00
- Input Supply voltage (VDC): 3.3 ~ 5
- Supply Current (mA): measurement 0.3mA standby 60μA.
- Temperature measurement range: 0~50 degrees
- Temperature measurement error: ±2 degrees
- Humidity measurement range: 20%~95%RH
- Humidity measurement error: ±5%RH
| Weight | 5 g |
|---|---|
| Dimensions | 31 × 14 × 7.5 mm |
8 in stock
11 in stock
18 in stock
64 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.

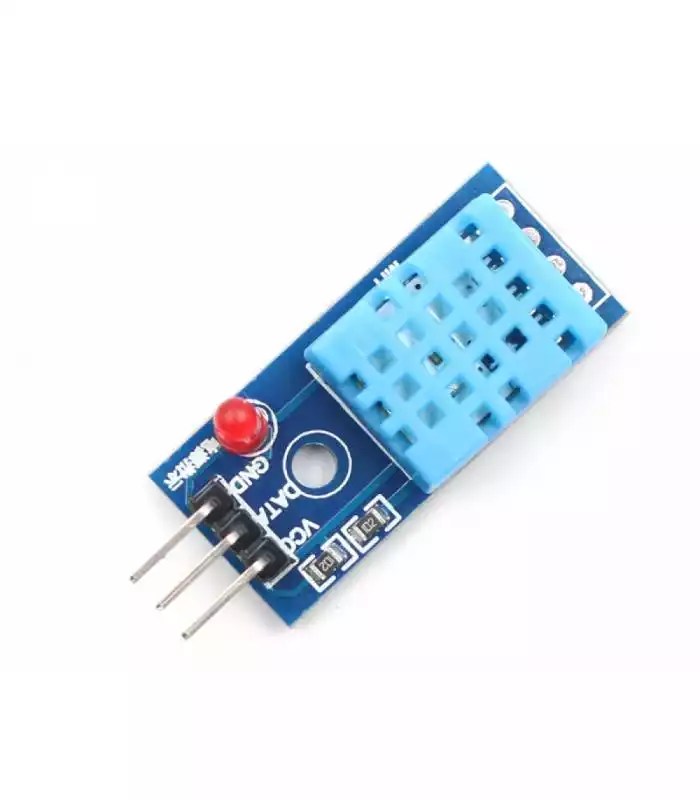

The DHT11 Temperature And Humidity Sensor Module with LED is a small humidity and temperature sensor that you can connect to your Arduino and get readings for temperature and humidity in the environment.
Features:
- DHT11 sensor with PCB and LED indicator along with cable; 3 to 5V power and I/O, 4 pins with 0.1″ spacing
- The board has pre-built 4.7K or 10K resistor, which you will need to use as a pull-up from the data pin to VCC.
- 2.5mA max current use during conversion (while requesting data)
- Good for 20-80% humidity readings with 5% accuracy
- Good for 0-50°C temperature readings ±2°C accuracy.
Package Includes:
1 x DHT11 Temperature and Humidity Sensor Module.
3 x Female to Female Connecting cable
