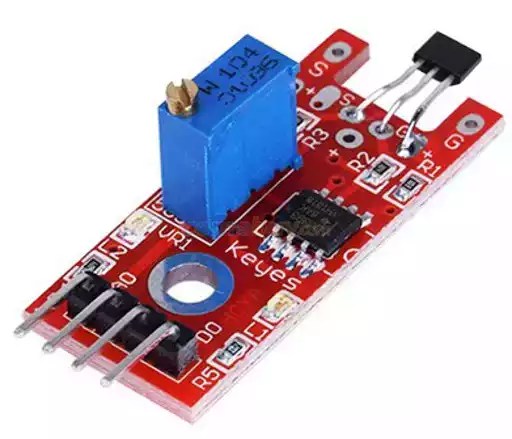

KY-024 Linear Magnetic Hall sensor
Original price was: ₹99.00.₹39.00Current price is: ₹39.00. (Excl. 18% GST)
Price (Excl. GST): ₹39.00
Price (Incl. GST): ₹46.02
- Operating Voltage: 3.3V-5V
- Features wide range voltage comparator LM393
- Adjustable sensitivity
- Signal output indicator with the retaining bolt hole, convenient installation
- Output form digital switch output (0 and 1 high and low level)
- The output effective signal is low level
- When there is sound, outputs low level and the signal light
| Weight | 3 g |
|---|---|
| Dimensions | 35 × 15 × 14 mm |
22 in stock
26 in stock
19 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
TheKY-024 Linear Magnetic Hall sensor features a digital interface and includes 13 LEDs to create a straightforward circuit for generating a magnetic field warning lamp. The LED digital interfaces are already incorporated into the module. The linear Hall sensor magnetometer is connected to interface number 3. When the linear Hall magnetometer senses a magnetic field, the LED illuminates; otherwise, it remains off.
The Hall switch integrated circuit operates on the hall effect principle, utilizing semiconductor integrated technology to manufacture a circuit sensitive to magnetic susceptibility. It comprises a voltage regulator, hall voltage generator, differential amplifier, Schmitt triggers, temperature compensation, and an open collector output stage circuit. This magnetic-sensitive sensor circuit interprets magnetic induction intensity as input, producing a digital voltage signal as output.
The sensor detects a magnetic field and outputs an analog voltage value, which can be controlled for sensitivity using the potentiometer.
Connection:
- VCC ↔ 2.3V ~ 5.3V
- GND ↔ power supply ground
- AOUT ↔ MCU.IO (analog output)
- DOUT ↔ MCU.IO (digital output)
Features :
- Features wide range voltage comparator LM393
- Adjustable sensitivity
- Signal output indicator with the retaining bolt hole, convenient installation
- Output form digital switch output (0 and 1 high and low level)
- Signal output indication
- Single channel signal output
- The output effective signal is low level
- When there is sound, outputs low level and the signal light
- Can be used for Acoustic control light, give sound and light alarm working with the Photosensitive sensor, and sound control, sound detect
Package Includes:
- 1 xKY-024 Linear Magnetic Hall sensor
