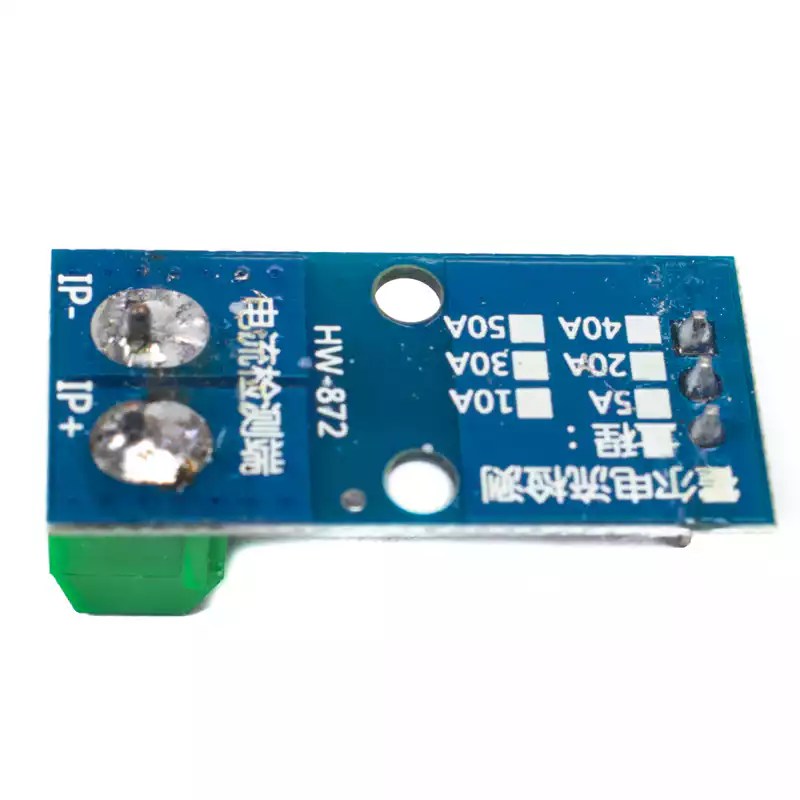

ACS712 5A Range Current Sensor Module
Original price was: ₹148.00.₹79.00Current price is: ₹79.00. (Excl. 18% GST)
Price (Excl. GST): ₹79.00
Price (Incl. GST): ₹93.22
- Low-noise analog signal path.
- Device bandwidth is set via the new FILTER pin.
- 5 µs output rise time in response to step input current.
- Small footprint, low-profile SOIC8 package.
- 2.1 kV RMS minimum isolation voltage from pins 1-4 to pins 5-8.
| Weight | 5 g |
|---|---|
| Dimensions | 32 × 13 × 13.5 mm |
45 in stock
23 in stock
Out of stock
Out of stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.

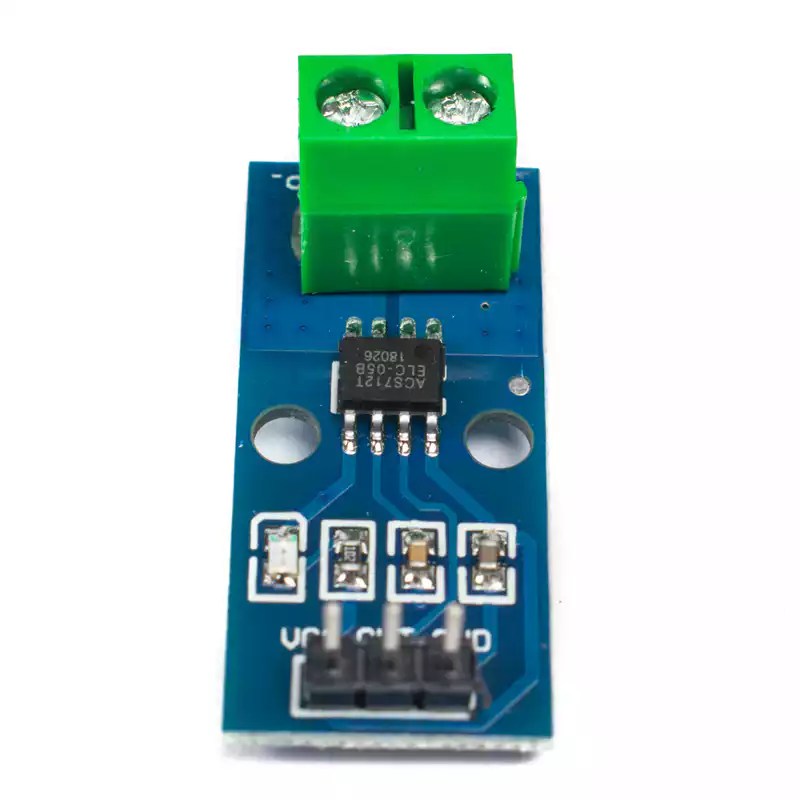

The ACS712 5A Range Current Sensor Module is engineered with a precise, low-offset, linear Hall circuit, paired with a copper conduction path situated near the surface of the sensor die. When current flows through this copper path, it generates a magnetic field. The Hall Effect Integrated Circuit (IC) then converts this magnetic field into a proportional voltage signal.
Monitoring and controlling current flow is crucial across a range of applications, including over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, and programmable current sources. The ACS712 sensor module, which forms the core of this current sensor, is capable of accurately detecting both AC and DC currents.
The module supports a maximum current detection range of up to 5A. Current values are converted into an analog voltage that can be easily read through the analog I/O port of an Arduino or other microcontroller. This makes it a versatile and valuable tool for various electronic and electrical monitoring tasks.
ACS712 5A Range Current Sensor Module Features :
- Low-noise analog signal path.
- Device bandwidth is set via the new FILTER pin.
- 5 µs output rise time in response to step input current.
- Small footprint, low-profile SOIC8 package.
- 2.1 kV RMS minimum isolation voltage from pins 1-4 to pins 5-8.
- 5.0 V, single-supply operation.
- 66 to 185 mV/A output sensitivity.
- Output voltage proportional to AC or DC currents.
- Factory-trimmed for accuracy.
- Extremely stable output offset voltage.
- Nearly zero magnetic hystereses.
- The ratiometric output from the supply voltage.
Package Includes :
- 1 x ACS712 5A Range Current Sensor Module
