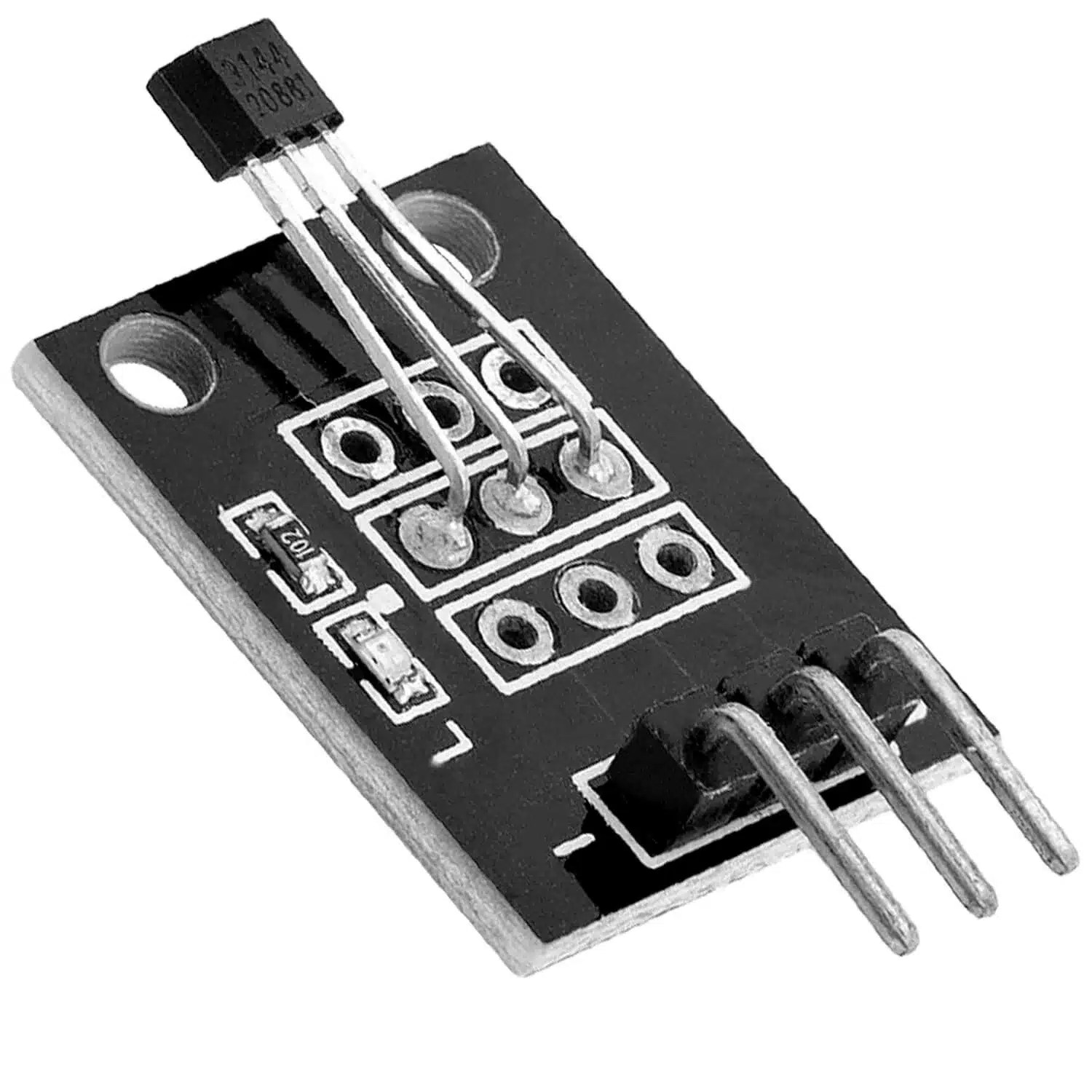

KY-003 Hall Magnetic Sensor Module
Original price was: ₹250.00.₹22.00Current price is: ₹22.00. (Excl. 18% GST)
Price (Excl. GST): ₹22.00
Price (Incl. GST): ₹25.96
- Model: KY-003
- Working voltage: DC 5V
- Small size, high sensitivity, fast response speed, good temperature performance, high accuracy and high reliability
- Automobile ignite, Brake circuit, Detection and control of position and speed
4 in stock
8 in stock
Out of stock
Out of stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The KY-003 Hall Magnetic Sensor Module operates like a switch, leveraging the Hall Effect principle to detect magnetic flux with high sensitivity. Its robust semiconductor casing, rather than a glass encapsulation, makes it well-suited for harsh environments. The module includes the 3144EUA-S Hall effect sensor, which alters its state when a magnet’s pole approaches, a change that can be easily detected by any digital GPIO pin on a microcontroller board.
This sensor is versatile and ideal for a variety of applications, including measuring wheel RPM, serving as a position sensor for machining tools, providing positional feedback in control systems, detecting magnet poles in BLDC motors, and activating magnetic alarm doors. It can be interfaced with Arduino using the `digitalRead` function with a delay or the `attachInterrupt` function, which detects state changes at the digital pin when interrupts are enabled.
Features:
- Linear Output for Circuit Design Flexibility
- Low Noise Output Virtually Eliminates the Need for Filtering
- A Stable and Accurate Output
- Temperature Range of -40°C to +85°C
- Responds to Either Positive or Negative Gauss
- Onboard LED for Output detection
Package Includes:
- 1 x KY-003 Hall Magnetic Sensor Module
