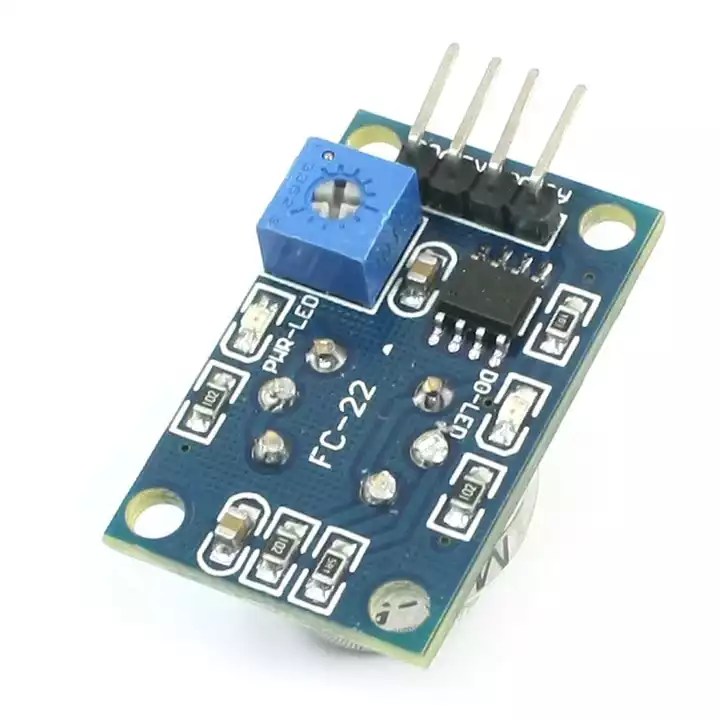

MQ-5 liquefied gas Methane Gas Sensor Module

The MQ-5 liquefied gas Methane Gas Sensor Module provides an affordable and effective solution for basic gas sensing in a variety of projects. Equipped with a buzzer, this module alerts you when it detects gases in the air, making it a reliable and easy-to-use tool for monitoring.

Commonly used in both household and industrial gas leakage detection systems, the MQ-5 sensor is versatile, detecting gases such as LPG (liquefied petroleum gas), natural gas, and coal gas. It can also differentiate between various gases to minimize interference from alcohol, cooking fumes, and cigarette smoke. You can adjust the sensor’s sensitivity using a potentiometer, allowing you to customize its response to your specific needs.

The MQ-5 sensor features tin oxide (SnO2) as its sensitive material, which has low conductivity in clean air. When combustible gases like methane, propane, or butane are present, the sensor’s conductivity increases with gas concentration. A simple electronic circuit then converts this change in conductivity into an output signal that indicates the gas concentration. Its high sensitivity to methane, propane, and butane makes the MQ-5 a cost-effective choice for a wide range of gas detection applications.

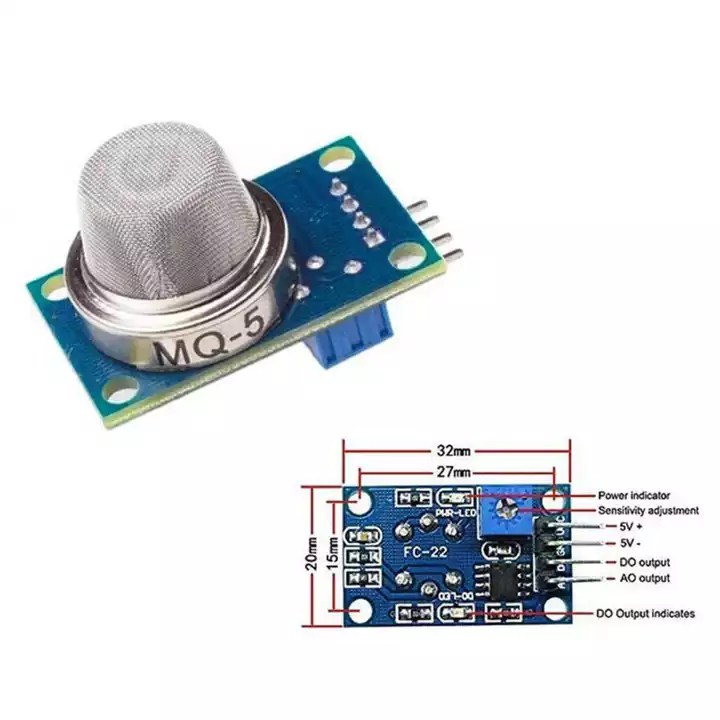

Connections:

VCC ↔ 2.5V ~ 5.0V
GND ↔ ground
Aout ↔ MCU.IO (analog output)
Dout ↔ MCU.IO (digital output)

Note: Buzzer is not included in this package, you have to buy it separately

Features :

• High sensitivity to LPG, natural gas, town gas.
• Small sensitivity to alcohol, smoke.
• Stable and long life.
• Simple drive circuit.
• Fast response.

Package Includes :

• 1 x MQ-5 liquefied gas Methane Gas Sensor Module
