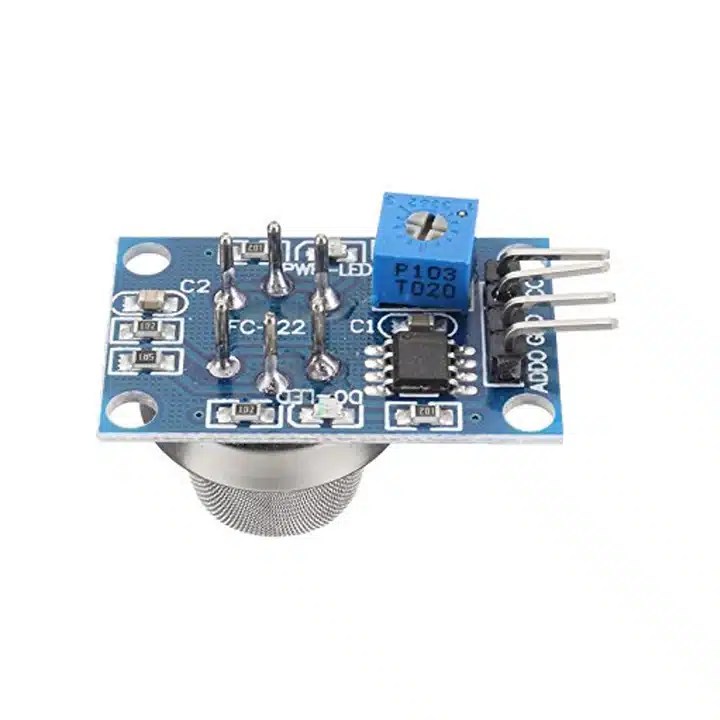

MQ-4 Natural Gas Methane Gas Sensor Module
Original price was: ₹219.00.₹90.00Current price is: ₹90.00. (Excl. 18% GST)
Price (Excl. GST): ₹90.00
Price (Incl. GST): ₹106.20
- Detecting range: 300~10000ppm
- Signal output indicator.
- Dual Signal output (analog output and TTL output).
- The TTL output signal is low level, allows us to connect with SCM directly.
- Analog output 0~5V voltage.
- Quick response and recovery.
| Weight | 6 g |
|---|---|
| Dimensions | 31 × 19 × 21 mm |
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
If you’re working on a project that needs to detect methane gases, the MQ-4 Natural Gas Methane Gas Sensor is an excellent choice. This sensor module is specifically designed to detect Compressed Natural Gas (CNG), methane (CH4), and similar gases in the air. The MQ-4 sensor is known for its high sensitivity and reliable performance.
The module features standard 4 x 0.1″ header pins, making it easy to connect even though the sensor’s original pin spacing might be complex. It provides both analog and digital outputs: the analog output delivers a continuous reading of gas concentration, while the digital output gives a binary signal when gas levels surpass a set threshold.
You can adjust this threshold using an onboard potentiometer to customize when the digital output is triggered. The MQ-4 sensor detects methane and natural gas concentrations from 200 to 10,000 ppm. Simply power the module with 5V, set the threshold, and you can start monitoring gas levels immediately. An onboard LED also lights up to signal the presence of any detected gas, offering a quick visual alert. This module is perfect for applications that require precise and reliable methane detection.
Features :
- Signal output indicator
- Dual Signals output (analog output and TTL output)
- The TTL output signal is low level, allows to connect with SCM directly
- Analog output 0~5V voltage
- High sensitivity
- Long working life and stable performance
- Quick response and recovery.
Package Includes :
- 1 x MQ-4 High Sensitivity Gas Methane (CNG) Detector Sensor Module
