KY-039 Finger Detecting Heartbeat Module
Original price was: ₹169.00.₹26.00Current price is: ₹26.00. (Excl. 18% GST)
Price (Excl. GST): ₹26.00
Price (Incl. GST): ₹30.68
1. Detects and measures heartbeat or pulse rate.
2. Designed to connect with Arduino and other microcontrollers.
3. Ideal for health monitoring and biofeedback projects.
4. Compact and easy to integrate into wearable devices or medical equipment.
5. Provides reliable pulse readings for precise health tracking.
| Weight | 6 g |
|---|
26 in stock
Out of stock
Out of stock
192 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.

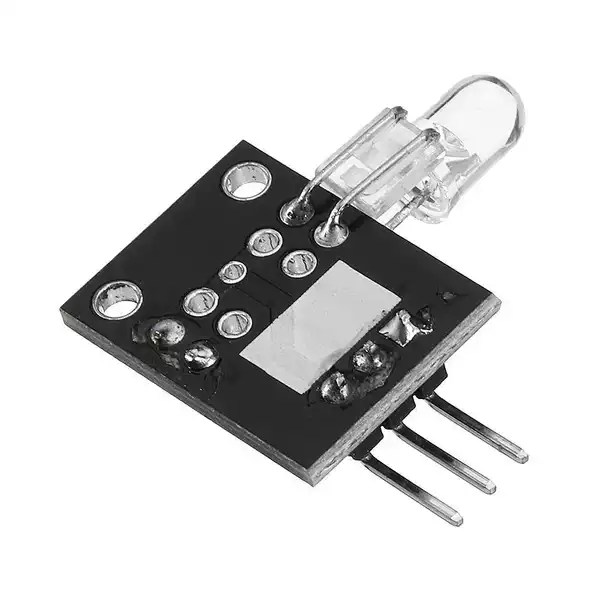

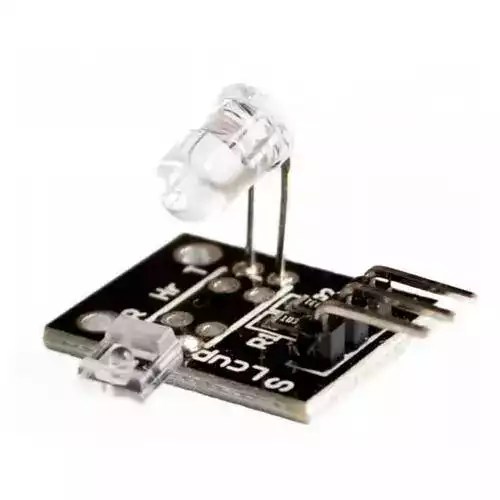

The Finger Detection Heartbeat Measuring Sensor Module utilizes a bright infrared (IR) LED and a phototransistor to detect the pulse of the finger, indicated by a flashing red LED with each pulse.
When the finger is placed between the LED and the phototransistor, the LED emits light onto one side of the finger, while the phototransistor receives the light on the other side. As the blood pressure pulse in the finger alters, the resistance of the phototransistor changes slightly.
To ensure sensitivity, a very high resistance resistor R1 is chosen, as most light passing through the finger is absorbed. The resistor value can be determined through experimentation to achieve optimal results, with the primary focus on preventing stray light from reaching the phototransistor.
This shielding against stray light is particularly crucial in-home environments where lighting often fluctuates at 50Hz or 60Hz frequencies, which can introduce noise and interfere with faint heartbeat detection.
Features :
- Use IR LED and an optical transistor to detect pulsation in fingers
- Small and Compact module
- Easy to use.
Package Includes:
- 1 x KY-039 Finger Detection Heartbeat Measuring Sensor Module
