KY-026 The Flame Sensor Module
Original price was: ₹99.00.₹39.00Current price is: ₹39.00. (Excl. 18% GST)
Price (Excl. GST): ₹39.00
Price (Incl. GST): ₹46.02
- Comparator chip LM393 makes module readings stable.
- Operating voltage 3.3V-5V.
- Fast Response Time
- Sensitivity adjustable
- Detects a flame or a light source of a wavelength in the range of 760nm-1100 nm.
- Detection range: up to 100 cm.
- Adjustable detection range.
- Detection angle about 60 degrees, it is sensitive to the flame spectrum.
| Weight | 3 g |
|---|---|
| Dimensions | 35.5 × 15.2 × 14 mm |
6 in stock
26 in stock
8 in stock
17 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.

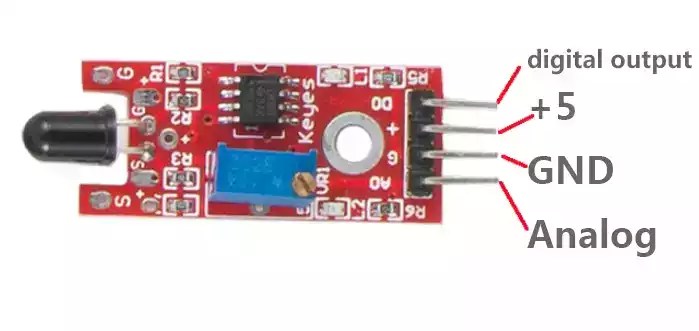

The KY-026 Flame Sensor Module detects flames within the 760 – 1100nm wavelength range, offering high sensitivity to small flames up to 0.8 meters away and a 60-degree detection angle. It features an LM393 operational amplifier that allows for sensitivity adjustment via a potentiometer. This module provides both digital and analog outputs, making it versatile for different applications.
Based on the YG1006 sensor, the KY-026 is ideal for use in firefighting robots and other flame detection systems. When a flame is detected, it activates an LED indicator and sets the D0 pin to a LOW state. The analog output delivers real-time voltage readings, while the digital output simplifies integration with microcontrollers. The adjustable sensitivity allows users to set precise temperature thresholds, enhancing the module’s effectiveness across various environments and applications.
Features :
- High Photo Sensitivity
- Fast Response Time
- Sensitivity adjustable
- Detects a flame or a light source of a wavelength in the range of 760nm-1100 nm.
- Detection range: up to 100 cm.
- Adjustable detection range.
- Detection angle about 60 degrees, it is sensitive to the flame spectrum.
- Comparator chip LM393 makes module readings stable.
- Operating voltage 3.3V-5V.
- Digital and Analog Output.
- Power indicator and digital switch output indicator.
Package Includes:
- 1 x KY-026 The Flame Sensor Module
