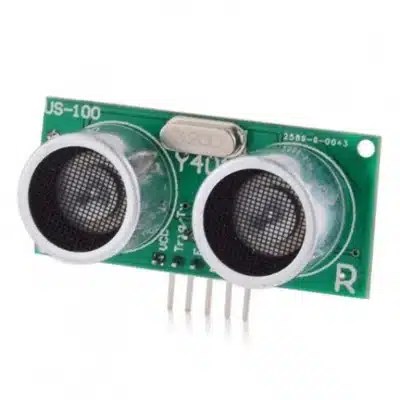

US-100 Ultrasonic Sensor Distance Measuring Module with Temperature Compensation
Original price was: ₹399.00.₹199.00Current price is: ₹199.00. (Excl. 18% GST)
Price (Excl. GST): ₹199.00
Price (Incl. GST): ₹234.82
- Voltage: DC 2.4V – 5V
- Average Current Consumption: < 2mA
- Output mode: level or UART
- Detection distance: 2cm – 450cm
- Working temperature: -20°C to +70°C
- It features temperature compensation.
- Provides two output modes level or UART.
| Weight | 9 g |
|---|---|
| Dimensions | 45 × 20 mm |
9 in stock
18 in stock
28 in stock
Out of stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The US-100 Ultrasonic Sensor Distance Measuring Module with Temperature Compensation is a highly versatile and precise tool designed for a range of distance measurement applications. It can accurately measure distances from 2 cm to 450 cm, making it suitable for various uses including robotics, obstacle avoidance, and object detection. This sensor operates within a broad voltage input range of 2.4V to 4.5V, and provides both digital and serial data output modes, offering flexibility for different integration needs. The US-100 is equipped with temperature compensation, ensuring that distance measurements remain accurate despite temperature fluctuations. It outputs distance data in millimeters when using serial data output mode, or calculates distance based on the duration that a digital output is held high. Additionally, the sensor is compatible with both 3.3V and 5V microcontrollers, making it highly adaptable for diverse projects. It consumes only 2mA when idle, making it energy-efficient for battery-operated systems.
Features of US-100 Ultrasonic Sensor Module:
- It features temperature compensation.
- It has high precision up to 1 mm
- Provides two output modes level or UART.
- Detecting distance is from 2 cm to 450 cm
- TTL Trigger input
- TTL Echo output
Package includes:
- 1 x US-100 Ultrasonic Distance Sensor Module
