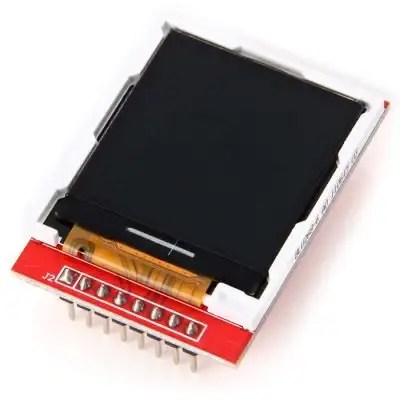

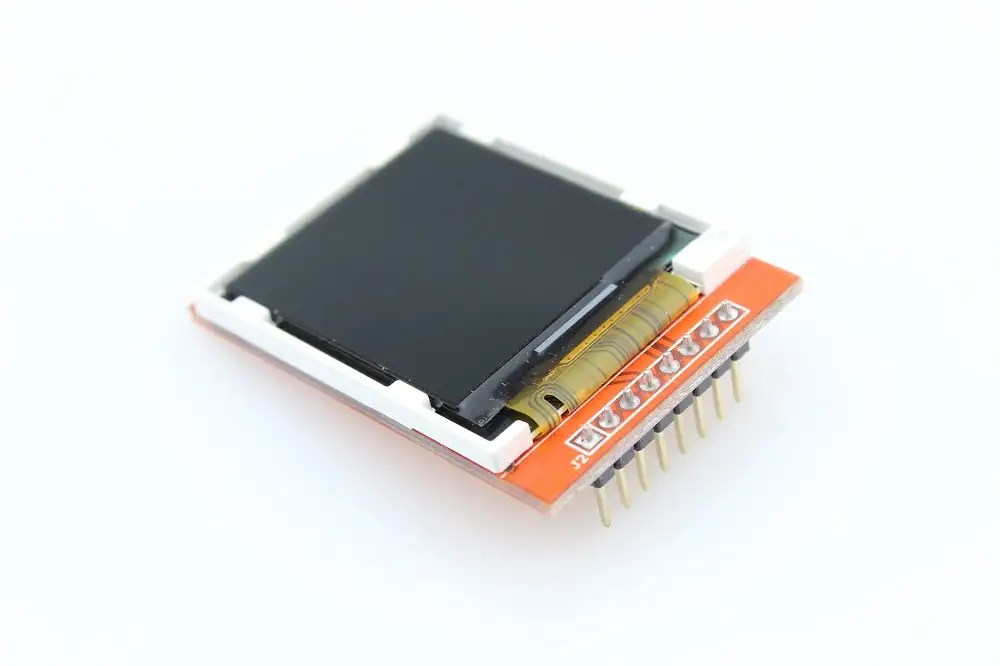

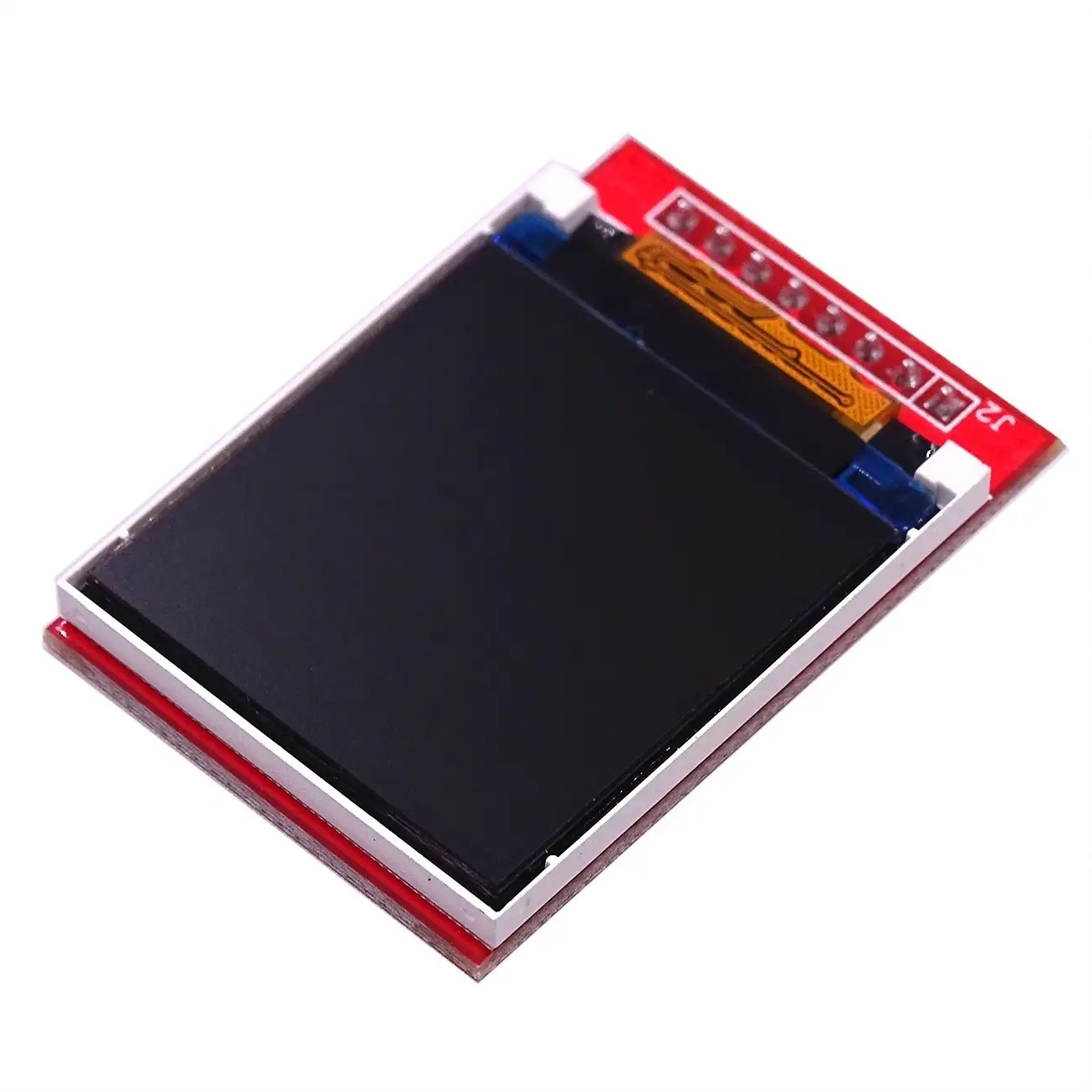

1.44 inch TFT LCD color screen Display module SPI Interface 128X128 without Touch
Original price was: ₹475.00.₹330.00Current price is: ₹330.00. (Excl. 18% GST)
Price (Excl. GST): ₹330.00
Price (Incl. GST): ₹389.40
- Display Size: 1.44″
- Driver IC: ST7735 driver IC for full 16-bit color display
- Input Voltage (V): 3.3 to 5
- Pixel Resolution: 128 x 128 for clear display
- Interface Type: SPI
- Compatible with and can serve as an upgrade to Nokia 5110 interface
| Weight | 12 g |
|---|
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The display uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available! The 1.44″ display has 128×128 color pixels. Unlike the low-cost “Nokia 6110” and similar LCD displays, which are CSTN type and thus have poor color and slow refresh, this display is a true TFT! The TFT driver (ST7735R) can display full 16-bit color. This 1.44-inch TFT LCD Color Screen Module SPI Interface has 128 x 128 resolution and 262 colors, it uses an SPI interface to communicate with the controller such as Arduino, so it is the best upgrade to the Nokia 5110.
- 1.44-inch color screen, supports 16BIT RGB 65K color display, rich display colors
- 128X128 resolution, clear display
- Using SPI serial bus, only a few IOs are needed to light up the display
- With SD card slot for easy expansion of experiments
- Provides abundant sample programs
- Military-grade process standards, long-term stable operation
- Provide underlying driver technology support
Product Specification
| NAME | PARAMETER |
| Display Color | RGB 65K color |
| SKU | DIS0004 |
| size | 1.44(inch) |
| type | TFT |
| Driver chip | ST7735S |
| Resolution | 128*128 (Pixel) |
| Module interface | 4-wire SPI interface |
| Effective display area (AA area) | 26.2×27.2(mm) |
| Module PCB base plate size | 29.7×43.36(mm) |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| VCC supply voltage | 3.3V~5V |
| Logic IO port voltage | 3.3V(TTL) |
| Power consumption | To be determined |
| Weight (including packaging) | 12 (g) |

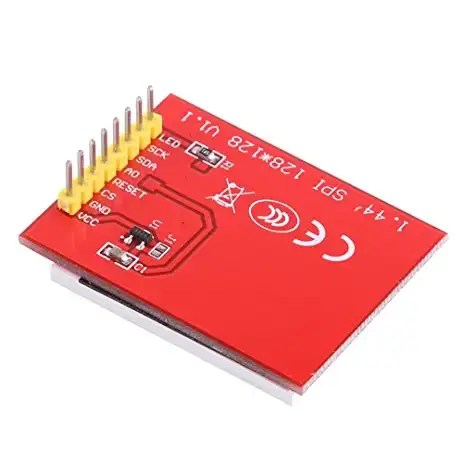

Pin Configuration
| S.No | Pin Number | Description |
| 1 | VCC | 5V/3.3V power input |
| 2 | GND | Grounding |
| 3 | CS | LCD chip select signal, low level enable |
| 4 | RESET | LCD reset signal, low level reset |
| 5 | A0 | LCD screen register/data selection signal, high level: register, low level: data |
| 6 | SDA | SPI bus write data signal |
| 7 | SCK | SPI bus clock signal |
| 8 | led | Backlight control, high level lights up, if no control is needed, connect 3.3V and keep on |
Product Documents
- 1.44 inch SPI module user manual
- 1.44 inch TFT datasheet
- 1.44 inch SPI module size diagram
- 1.44 inch SPI module schematic diagram
- 1.44 inch QD14414B LCD screen schematic package and PCB package
- Driver IC Data Sheet ST7735S
Package Includes
1 x 1.44 inch TFT LCD Color Screen Module
This display module can be ideal for projects requiring a small, colorful display with relatively simple interfacing, such as portable devices, educational kits, or custom indicators.
