Unsoldered GY-9255 9DOF MPU9255 9-Axis Attitude +Gyro+Accelerator+Magnetometer Sensor Module
Original price was: ₹799.00.₹550.00Current price is: ₹550.00. (Excl. 18% GST)
Price (Excl. GST): ₹550.00
Price (Incl. GST): ₹649.00
- Accelerometer, Gyroscope, and Magnetometer
- Power Supply: DC3.3V-5V
- Chip: MPU9255
- Size: 22 mm x 17 mm.
- Gyro range : ± 250 500 1000 2000 ° / s
- Acceleration range: ± 2 ± 4 ± 8 ± 16g
- Magnetic field range: ± 4800uT
- 9 DOF modules
4 in stock
1 in stock
64 in stock
28 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The MPU9255 9-Axis Attitude Gyro Accelerator Magnetometer Sensor Module is a high-performance motion tracking module ideal for robotics, drones, wearable devices, and embedded electronics projects. This advanced module features the MPU9255, a multi-chip module (MCM) that integrates two dies into a single compact QFN package. One die houses a 3-axis accelerometer and gyroscope, while the other die contains the AK8963 3-axis magnetometer, resulting in a full 9-axis motion tracking solution. With an integrated Digital Motion Processor (DMP), the MPU9255 provides precise orientation, acceleration, and rotation data in real time, making it perfect for motion-sensing applications.

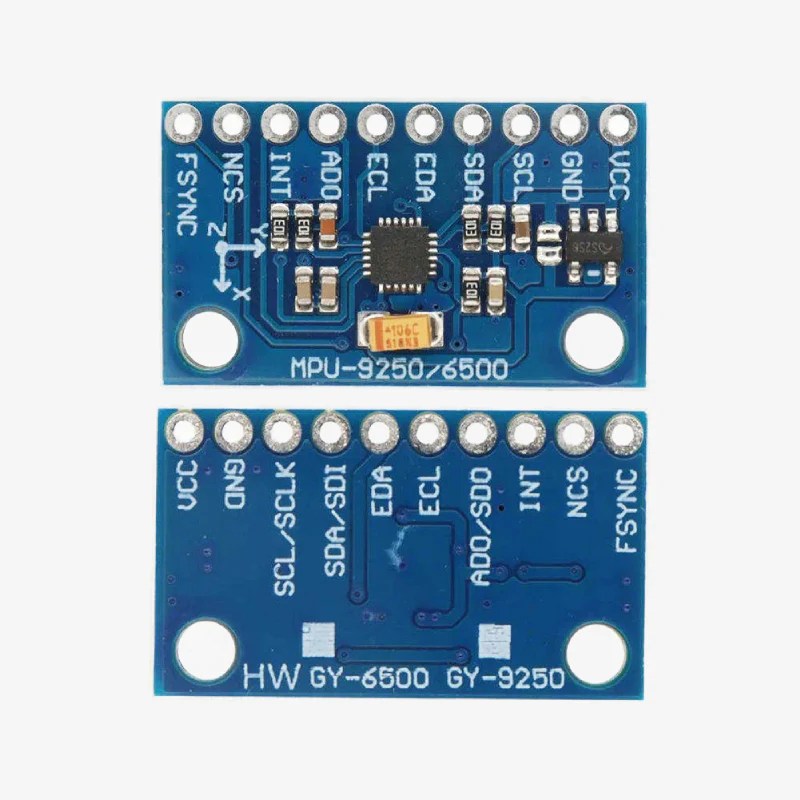

The module communicates via I2C, with a default address of 0x68, or 0x69 if the AD0 pin is pulled high. It also includes an embedded temperature sensor to compensate for environmental changes, enhancing accuracy. The MPU9255 module is designed for ease of integration, featuring pull-up resistors on the SDA, SCL, and nCS lines, pull-down resistors on the FSYNC and AD0 lines, and an onboard 3.3V voltage regulator. This allows it to be powered directly from 5V sources such as Arduino, Raspberry Pi, or other microcontrollers. For 3.3V operation, a simple solder jumper can bypass the regulator for direct low-voltage operation.
Applications for the MPU9255 9-axis sensor include drones and UAV stabilization, robotics navigation, wearable motion tracking, gaming controllers, and IoT-based orientation detection. Its compact design, high precision, and versatile power options make it a reliable choice for engineers, students, and hobbyists looking for an affordable yet professional-grade motion sensing solution.
With the MPU9250 9-axis sensor module, you can achieve precise motion tracking, orientation sensing, and real-time acceleration measurement for virtually any project requiring movement analysis.
Applications
- FPV, RC, and Robots systems
- GPS navigation systems
- Impact recognition and logging
- Gaming and virtual reality input devices
- Motion-activated functions
- Intelligent power saving for handheld devices
- Vibration monitoring and compensation
- Free-fall detection
Features
- Accelerometer, Gyroscope, and Magnetometer
- 9 DOF module
- Build-in ultra-low noise linear LDO voltage regulator.
- Built-in onboard filters, which reduce noise from the motor and other high current electronics.
- All sensors are connected to the I2C bus.
- Build-in the Logic level converter for I2C.
- Power indicator LED.
- Using Immersion Gold PCB, machine welding process to ensure quality.
- On-board pull-up resistors on SDA, SCL, and nCS
- On-board pull-down resistors on FSYNC and AD0
Package Includes

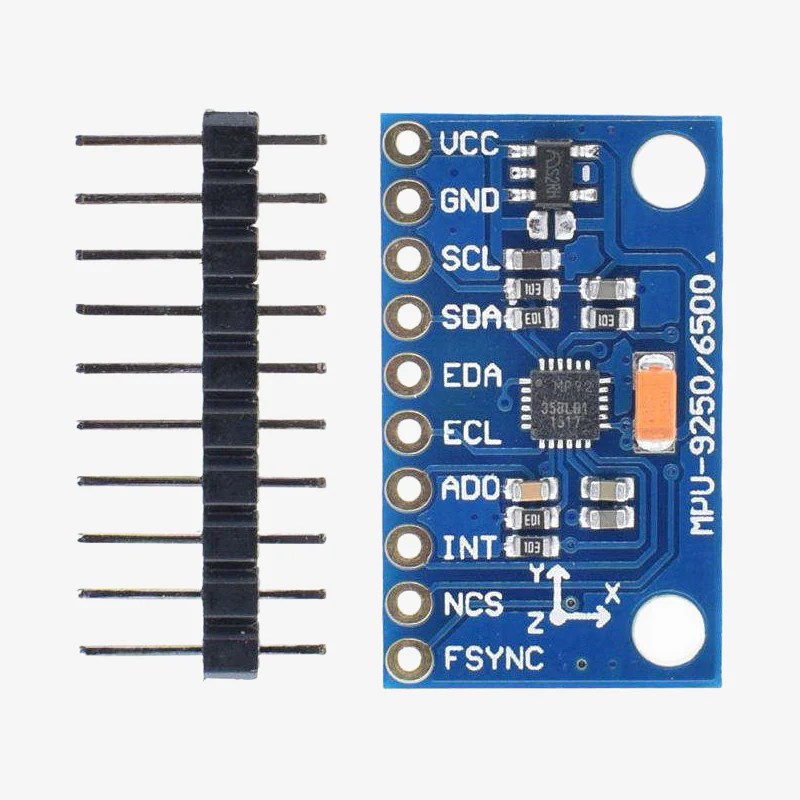

- 1 x MPU9255 9-Axis Attitude Gyro Accelerometer Magnetometer Sensor Module
- 1 x Jumper Header(Unsoldered).
