AD8232 ECG Module Heart Rate Monitor Kit

The ECG Monitor Sensor Module, based on the high-performance AD8232 IC from Analog Devices, is a compact and cost-effective solution for measuring the electrical activity of the heart. Designed for students, hobbyists, researchers, and embedded developers, this module provides accurate single-lead ECG readings that can be easily displayed, processed, or analyzed. By detecting small biopotential signals generated by the heart, the sensor outputs a clean analog ECG waveform that can be read by microcontrollers such as Arduino, Raspberry Pi, ESP32, and other development platforms.

One of the main challenges in ECG measurement is electrical noise created by motion, environmental interference, and electrode placement. The AD8232 ECG Sensor Module integrates an advanced signal-conditioning block that amplifies, filters, and stabilizes the captured signals, allowing users to obtain clear and reliable ECG traces. This makes it especially suitable for educational projects, DIY health monitoring systems, wearable device prototyping, and biomedical research experiments.

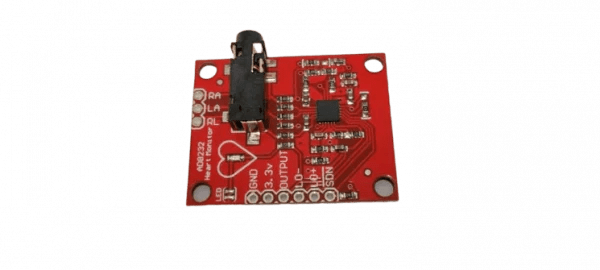

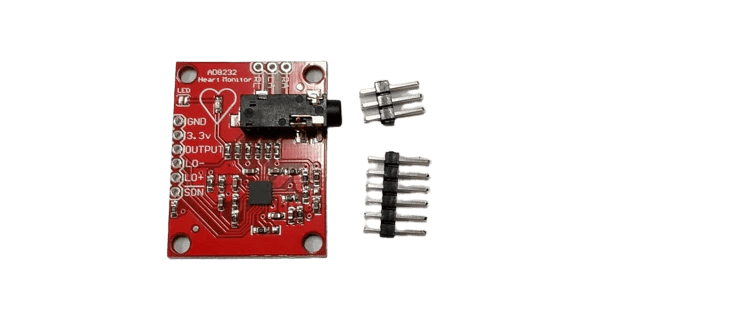

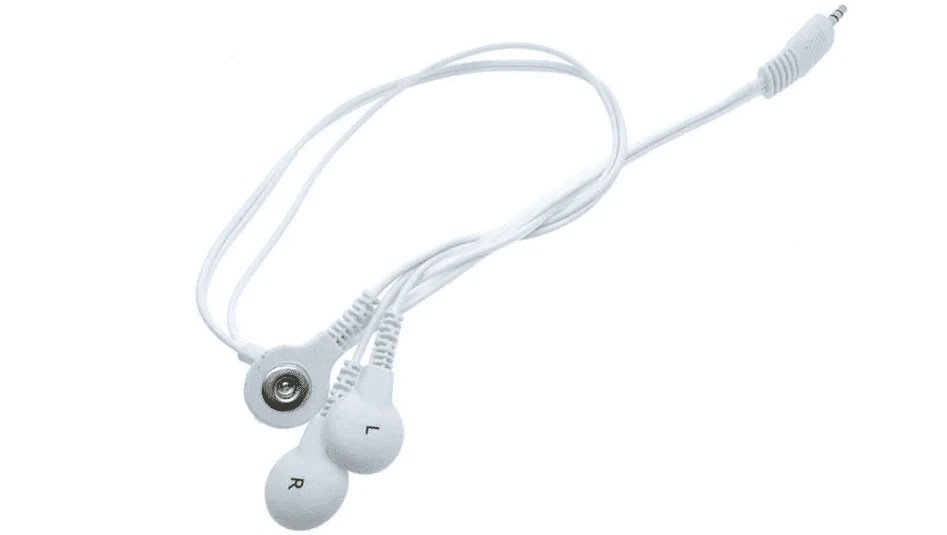

The module conveniently breaks out nine useful pins including SDN, LO+, LO-, OUTPUT, 3.3V, and GND, which allow direct interface with most microcontroller boards. It also features dedicated electrode connections: RA (Right Arm), LA (Left Arm), and RL (Right Leg), supporting standard ECG electrode pads. An onboard heartbeat indicator LED provides a visual pulse that blinks in sync with the detected heart activity, offering instant feedback during testing and development.

Compact, reliable, and beginner-friendly, the AD8232 ECG Monitor Sensor Module is widely supported with online tutorials and sample codes, making it ideal for anyone looking to explore biopotential measurement, heart-rate monitoring, or ECG waveform analysis in low-cost electronics projects.
