TCS3200/ TCS230 Color Recognition Sensor Module

The TCS3200/ TCS230 Color Recognition Sensor  for MCU Arduino uses a high-quality light sensor allowing you to sense any color through a combination of Red, Green, and Blue. The module provides all of the pins of the TCS3200 on convenient 0.1″ headers – ideal for use with PCBs, breadboard or stripboard.

Four white LEDs provide plenty of light for the color sensor and allow you to use the module in any ambient light.

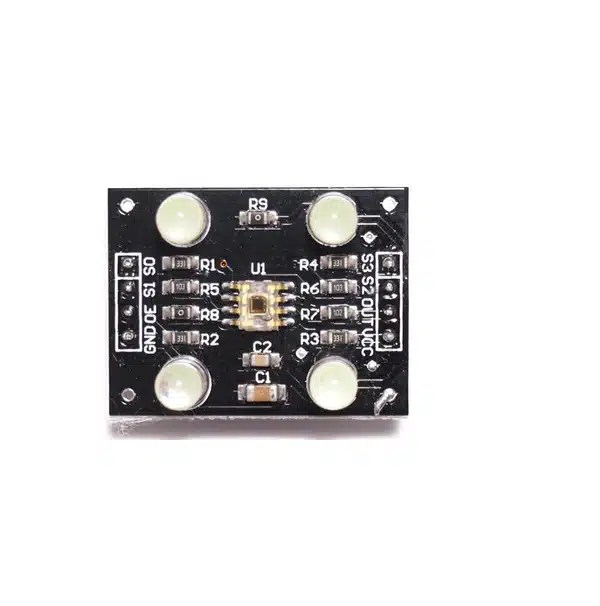

The pinout is clearly labeled on the board and is as follows:

Header one on the left side of the board

• S0: Output frequency scaling selection input (along with S1)
• S1: Output frequency scaling selection input (along with S0)
• OE: Output Enable – if held low, the output of the module is turned on
• GND: Ground – connect to 0V

Header two on the right side of the board

• S3: Photodiode type (along with S2)
• S2: Photodiode type (along with S3)
• OUT: Output – A square wave appears here showing the intensity of the detected color
• VCC: Power – connect to 2.7V-5.5V

Features :

1. High-resolution conversion of light intensity to frequency.
2. Chip pins all has drawn for standard 100.
3. Put the needle (2.54 mm).
4. Mil-convenient for bitmap board.
5. Programmable color and full-scale output frequency.
6. Communicate directly with a microcontroller.
7. Low-profile surface mount package.

Package Includes :

1 x TCS3200/ TCS230 Color Recognition Sensor
