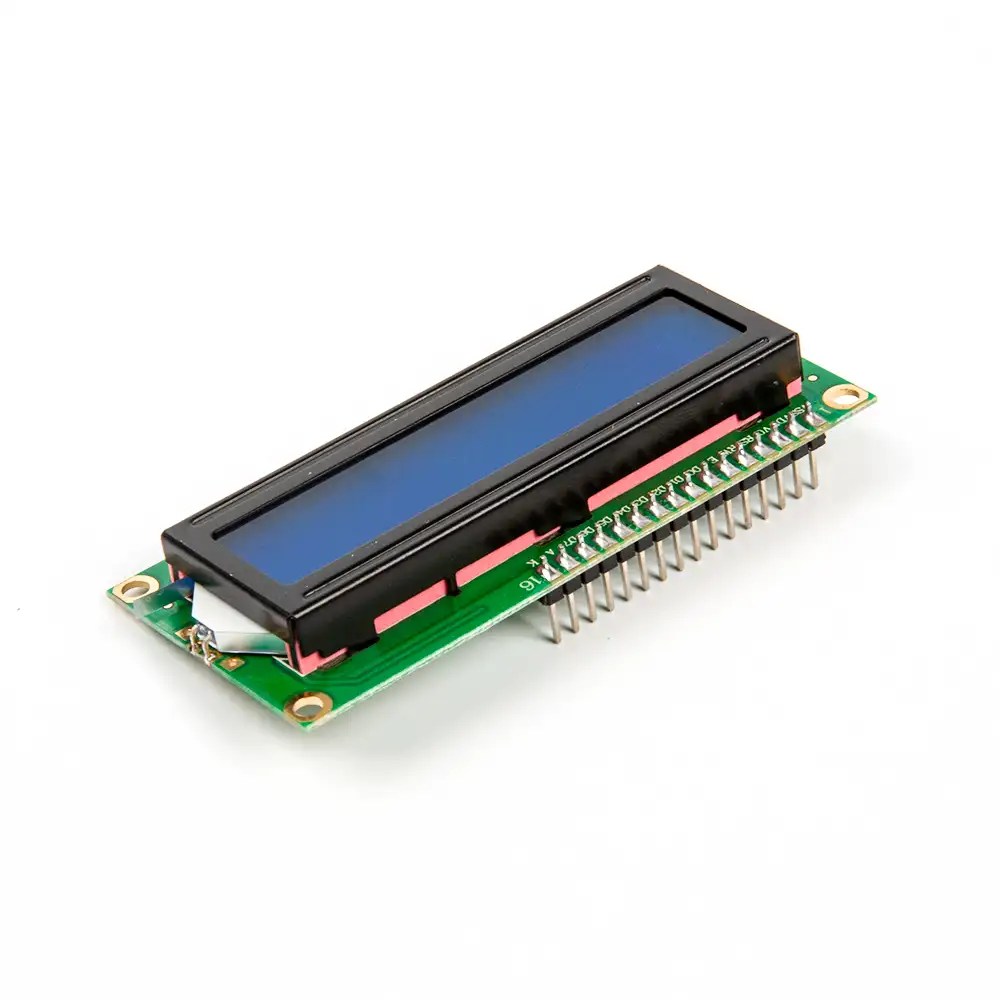

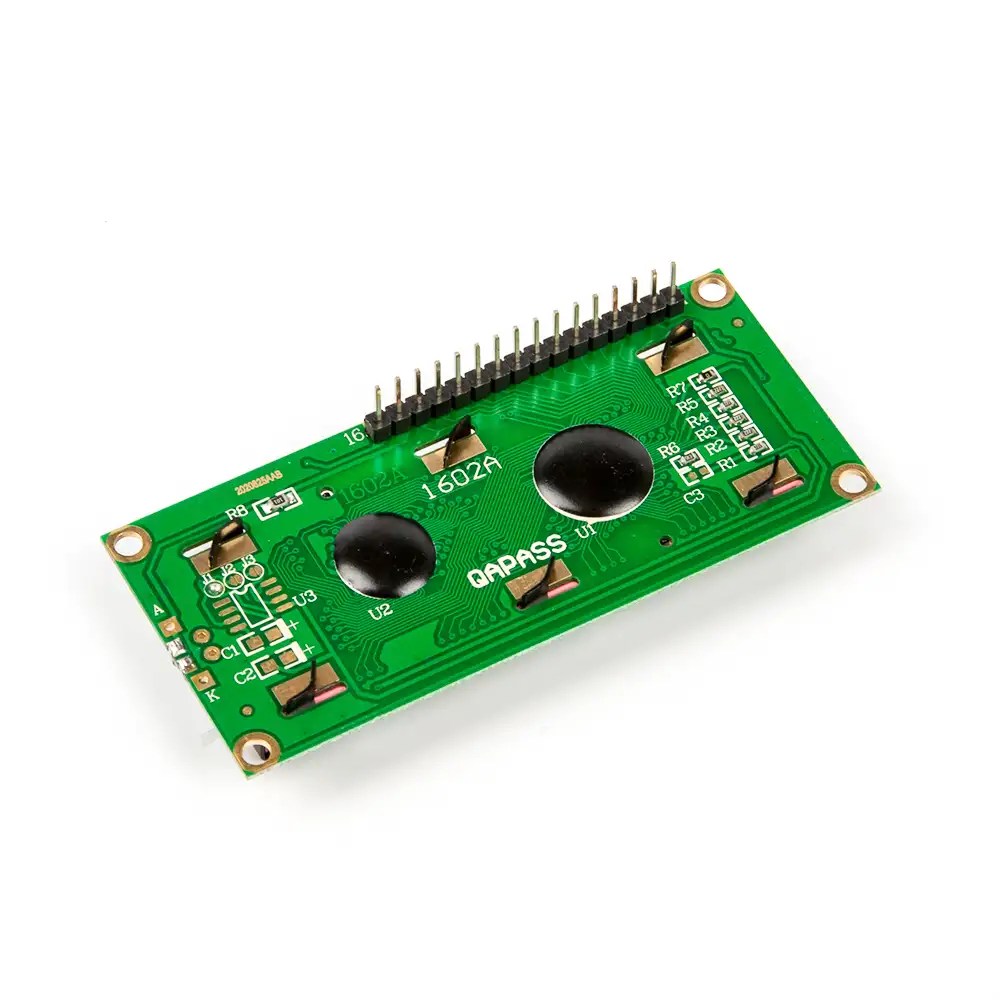

LCD1602 Parallel LCD Display with Blue Backlight with Soldering
Original price was: ₹190.00.₹110.00Current price is: ₹110.00. (Excl. 18% GST)
Price (Excl. GST): ₹110.00
Price (Incl. GST): ₹129.80
- 16×2 LCD (16 characters per line, 2 lines).
- Shows white characters on a blue background.
- Equipped with a backlight for enhanced visibility in low-light conditions.
- Easily interfaces with Arduino and other microcontrollers.
- Suitable for a wide range of applications requiring basic text display and user interaction.
| Weight | 30 g |
|---|---|
| Dimensions | 80 × 36 × 10 mm |
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
LCD1602 Parallel LCD Display with Blue Backlight
If you’re aiming to incorporate visual feedback into your Arduino projects, a display is indispensable. For projects requiring modest display capabilities, the LCD1602 Parallel LCD Display with Blue Backlight offers an excellent solution.
Featuring a 16×2 White on RGB Liquid Crystal Display, the LCD1602 Parallel LCD Display presents a straightforward and cost-effective option. With its 16 characters per line and 2-line display, it presents clear white text against a blue background, ensuring optimal visibility and contrast.
This display, with its vivid blue backlight, is particularly well-suited for Arduino projects. Its straightforward interfacing makes it easily compatible with Arduino or other microcontrollers.
Displayed content can vary from simple text to sensor readings like temperature or pressure, or even real-time data on Arduino operations.
One factor to consider is the pin requirement — about 8 Arduino pins are necessary to operate the display. However, simplifying the connection process is achievable with an I2C adapter. This adapter can be directly soldered onto the display pins, reducing the required pins to just the I2C pins, and simplifying coding with readily available libraries.
Features:
- 16 characters wide, 2 rows
- White text on the blue background
- Single LED backlight included can be dimmed easily with a resistor or PWM.
- Can be fully controlled with only 6 digital lines! (Any analog/digital pins can be used
Product Specification
| Item | Standard Value | Unit |
|---|---|---|
| Display Type | 16 Characters x 2 Lines | Mm |
| LCD Type | STN,NEGATIVE(BLUE),TRANSMISSIVE | Mm |
| Driver Condition | LCD Module : 1/16 Duty , 1/5 Bias | Mm |
| Viewing Direction | 6 O’Clock | Mm |
| Backlight Type | BLUE | Mm |
| Interface | 8-bit MPU interface | – |
| Driver IC | HD44780 or Equivalent | – |
| Outline Dimension | 80(L) * 36(W) * 11.8(T) | mm |
| Viewing Area | 64.3(L) * 16( W) | mm |
| Dot size | 0.56(W) ´ 0.61(H) | mm |
| Dot pitch | 0.6(W) ´ 0.65(H) | mm |
| Character size | 2.96(W) ´ 5.16(H) | mm |
Pin Configuration
| Pin No. | Symbol | Function |
|---|---|---|
| 1 | VSS | Ground (0V) |
| 2 | VDD | Supply Voltage for Logic (+5.0V ) |
| 3 | VO | Contrast Adjustment |
| 4 | RS | Data/Instruction Select |
| 5 | R/W | Read/Write Select |
| 6 | E | Enable Signal |
| 7 | DB0 | Data Bus |
| 8 | DB1 | Data Bus |
| 9 | DB2 | Data Bus |
| 10 | DB3 | Data Bus |
| 11 | DB4 | Data Bus |
| 12 | DB5 | Data Bus |
| 13 | DB6 | Data Bus |
| 14 | DB7 | Data Bus |
| 15 | LED_A | LED Power Supply + (5.0V) |
| 16 | LED_K | LED Power Supply – (0V) |
Documents
Tutorials
Please visit the website link provided below to understand how the product is working,
- LCD1602 Parallel LCD Display 8-bit mode interface with 8051
- LCD1602 Parallel LCD Display 4-bit mode interface with 8051
- LCD1602 Parallel LCD Display 8-bit mode interface with PIC16f877A
- LCD1602 Parallel LCD Display 4-bit mode interface with PIC16f877A
- LCD1602 Parallel LCD Display 8-bit mode interface with LPC2148
- LCD1602 Parallel LCD Display 4-bit mode interface with LPC2148
Package Includes
- 1 x LCD1602 Parallel LCD Display Blue Backlight
