Rain Water Level Detection Sensor Module
Original price was: ₹65.00.₹45.00Current price is: ₹45.00. (Excl. 18% GST)
Price (Excl. GST): ₹45.00
Price (Incl. GST): ₹53.10
- Operating voltage: DC3-5V
- Detection area: 40mm x 16mm
- Operating temperature: 10 °C – 30 °C
- Humidity: 10% -90% non-condensing
- Package Includes 1 x Water Level Sensor
31 in stock
28 in stock
Out of stock
192 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.

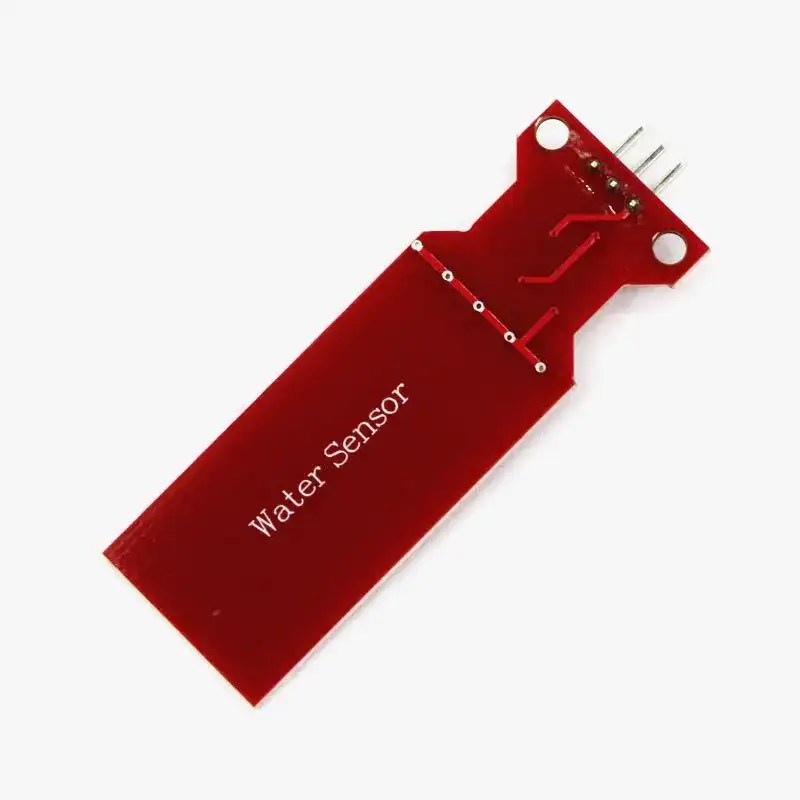

The Rain Water Level Detection Sensor Module is a simple and effective tool for monitoring water levels in various applications like rainwater harvesting, irrigation systems, and flood detection. The sensor features a series of parallel exposed traces that detect water droplets. As water accumulates on these traces, the sensor’s resistance changes, allowing it to measure the water level.
One of the main advantages of this sensor is its analog output, which is directly proportional to the amount of water present. This makes it easy to interpret the data, as the output signal increases with the water level. The sensor’s analog signal can be read through an Analog-to-Digital Converter (ADC) and sent to a microcontroller for further processing.
Integrating the sensor with an Arduino is straightforward. It can be connected directly to the Arduino’s analog input pins, allowing for easy real-time monitoring of water levels. The analog output can be used to trigger various actions, such as activating pumps, sending alerts, or logging data for analysis. This makes the Rain Water Level Detection Sensor Module a practical choice for projects that need accurate and reliable water level detection.
Rain Water Level Detection Sensor Features
- Working Voltage : DC 3-5V
- Working Current : <20mA
- Sensor Type : Analog
- Detection Area : 40 mm x 16 mm
- Size : 65 mm x 20 mm x 8 mm
- Humidity: 10% -90% non-condensing
Package Includes
- 1x Rain Water Level Detection Sensor Module
