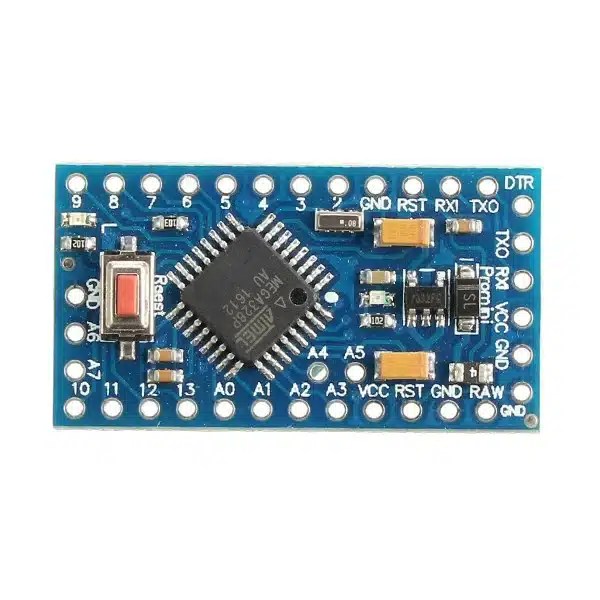

Pro Mini ATMEGA328P 3.3V/8M (Official Version)

The Pro Mini ATMEGA328P 3.3V/8M is a 3.3V Arduino running an 8MHz bootloader. It features connectors that allow you to solder or wire connections in any orientation you need. For beginners, we recommend starting with the Uno R3, as it is an excellent choice for getting started quickly. The Arduino Pro series is designed for users who are familiar with its limitations, such as the 3.3V system voltage, the absence of connectors, and the need for an off-board USB connection.

The Pro Mini Kit is a microcontroller board based on the ATmega328. It includes 14 digital I/O pins (6 of which can be used as PWM outputs), 6 analog inputs, an onboard resonator, a reset button, and mounting holes for pin headers. A six-pin header can be connected to an FTDI cable to provide USB power and communication.

This development board is intended for semi-permanent installation in projects or exhibitions. It comes with headers, which allow for the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Mini Arduino.

Features :Pro Mini ATMEGA328P 3.3V/8M

1. 8 analog input port: A0 ~ A7.
2. A pair of TTL level serial port transceiver : RX / TX.
3. 6 PWM port: D3, D5, D6, D9, D10, D11.
4. Use For Atmel Atmega328P-AU microcontroller.
5. Support serial download.
6. Support 9V battery.

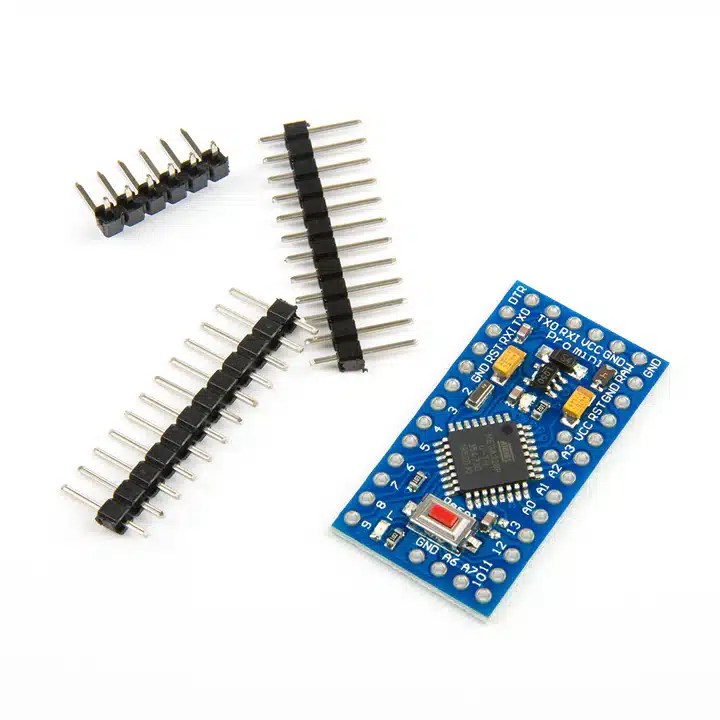

Package Includes :

1 x Pro Mini ATMEGA328P 3.3V/8M (Official Version)

3 x Male Header connector.
