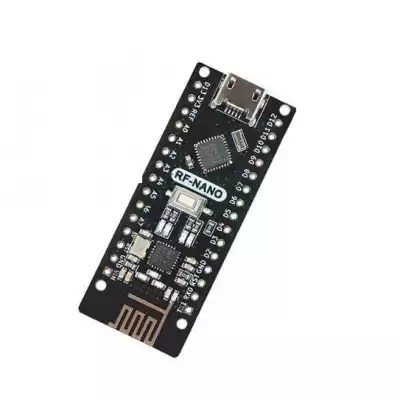

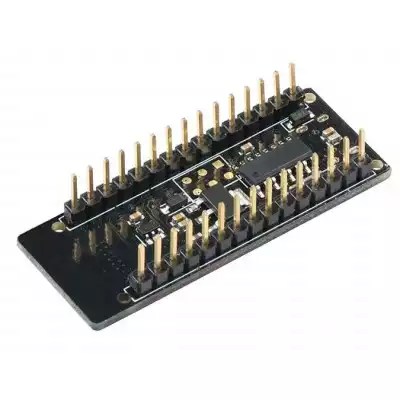

RF Nano Integrated NRF24L01 Wireless Module with Soldering
Original price was: ₹2,199.00.₹881.36Current price is: ₹881.36. (Excl. 18% GST)
Price (Excl. GST): ₹881.36
Price (Incl. GST): ₹1,040.00
- Microcontroller: ATmega328P
- Nrf24L01+ 2.4G wireless
- Architecture AVR
- Operating Voltage 5 V
- Flash Memory 32 KB of which 2 KB used by bootloader
- SRAM: 2 KB
- Clock Speed: 16 MHz
- Analog I/O: 8 Pins
- EEPROM 1 KB
- DC Current per I/O Pins: 40 mA (I/O Pins)
- Input Voltage: 7-12 V
- Digital I/O: 22 Pins
- PWM Output: 6
- Power Consumption: 19 m
| Weight | 9 g |
|---|---|
| Dimensions | 90 × 60 × 10 mm |
14 in stock
50 in stock
9 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The NRF24L01 Wireless Module is a compact wireless communication device featuring the NRF24L01 transceiver chip. Its small size and integrated design make it ideal for applications where space is constrained.
The Nano Board offers several options for communication with a computer, other Arduinos, or different microcontrollers. The ATmega32P chip enables UART TTL (5V) serial communication through digital pins 0 (RX) and 1 (TX). An FTDI FT232RL chip on the board manages this serial communication over USB, and the FTDI drivers (included with the Arduino software) create a virtual COM port for computer software. The Arduino software provides a serial monitor for easy text data transfer to and from the Arduino board. The RX and TX LEDs on the board indicate data transmission via the FTDI chip and USB connection to the computer (but not for serial communication on pins 0 and 1). Additionally, the SoftwareSerial library enables serial communication on any of the Nano’s digital pins. The ATmega32P also supports I2C (TWI) and SPI communication. For I2C communication, the Arduino software includes a Wire library, and for SPI communication, you can refer to the ATmega32P datasheet.
Features of NRF24L01 Wireless Module:

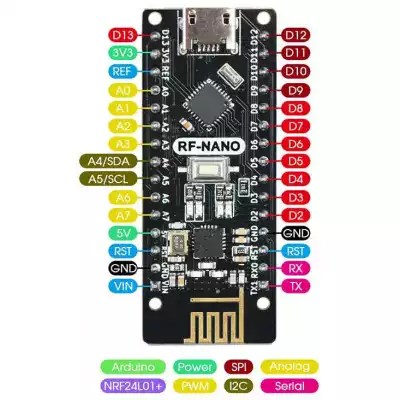

- RF-Nano board is PIN-PIN with Arduino Nano V3.0 and share the same codes.
- The main chip is ATMEGA328P-MU QFN32 with the latest bootloader (Arduino IDE 1.8.8).
- More convenient for application: RF-Nano board integrates a NRF24L01+ module with Arduino Nano
- v3.0 board, which is very convenient for 2.4G wireless connect application.
- Super small volume design, more convenient to use, no soldering needed.
- Designed to operate in low-power modes, making it suitable for battery-powered applications
Package Includes:
1 x NRF24L01 Wireless Module RF Nano Integrated
