ESP8266 ESP-01S 5V WiFi Relay Module
Original price was: ₹483.00.₹207.00Current price is: ₹207.00. (Excl. 18% GST)
Price (Excl. GST): ₹207.00
Price (Incl. GST): ₹244.26
- Onboard Module: ESP8266 wifi module; in AP mode it can connect with 5 Clients at the same time
- Operating Way: cellphone carried on wifi module; cellphone and wifi module carried on the same router, and use the APP to control relay
- Transmission Distance : 400m (max)
- Relay : 5V,10A/250V AC 10A/30V DC
- Baud Rate: 9600.
- Diode effusion protection;
- Short response time
| Weight | 17 g |
|---|---|
| Dimensions | 36 × 29 × 17 mm |
5 in stock
Out of stock
9 in stock
2 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.

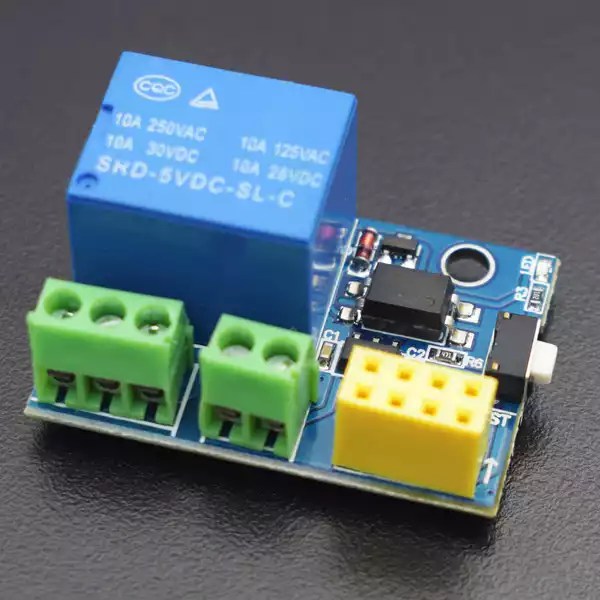

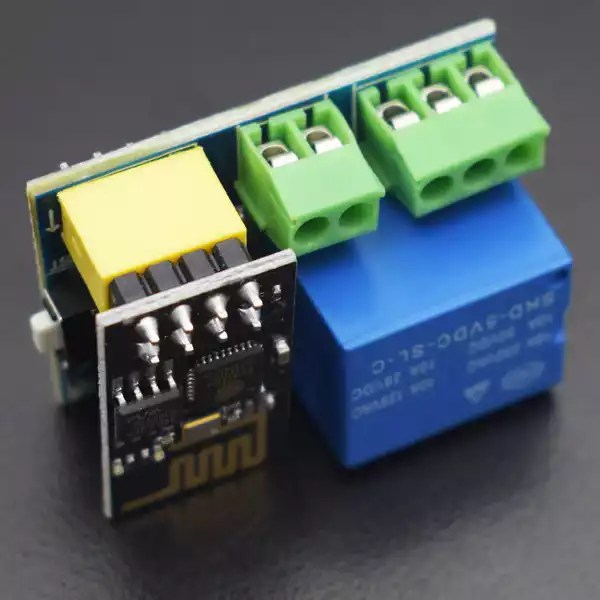

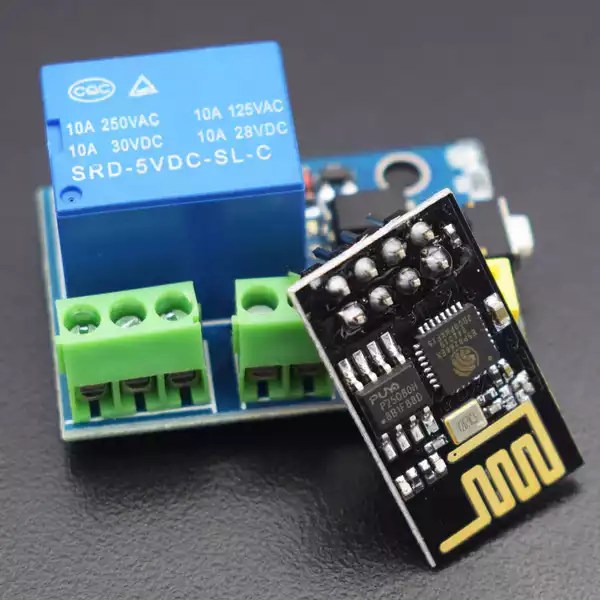

This WiFi relay module is based on the ESP8266 ESP-01S 5V WiFi Relay Module and is ideal for creating your own smart switch for DIY projects. It allows you to control the relay’s status through a mobile app and provides APP and LUA source code for remote operation. It’s ready to use, making it both simple and convenient.
The module integrates with the ESP8266 serial module, enabling you to manage household appliances from your phone no matter where you are. Configuration is done via serial debugging software, with commands sent through a USB-to-TTL module.
To connect, wire the TX, RX, and GND pins of the USB-to-TTL module to the RX, TX, and GND pins of the ESP8266 relay module. Additionally, connect the IN+ and IN- pins to a DC5V power source.
This 5V WiFi Relay Module, based on the AI-Thinker ESP-01/01S, is perfect for smart home setups, Internet of Things (IoT) projects, and other DIY applications. With this smart relay, you can easily create a smart switch to control any device from your phone, anywhere.

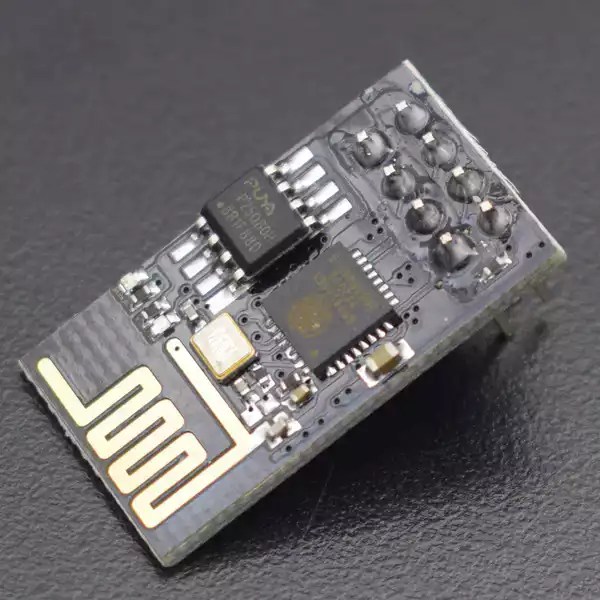

The onboard ESP8266 WiFi module supports three operating modes: STA (client), AP (hotspot), and STA + AP (both client and hotspot). Choose the appropriate mode for your WiFi relay module based on your project requirements.
Features :ESP8266 ESP-01S 5V WiFi Relay Module
- Onboard Module: ESP8266 wifi module; in AP mode it can connect with 5 Clients at the same time
- Operating Way: cellphone carried on wifi module; cellphone and wifi module carried on the same router, and use the APP to control relay
- Diode effusion protection;
- Short response time
Package Includes:
1 x ESP8266 ESP-01S 5V WiFi Relay Module
