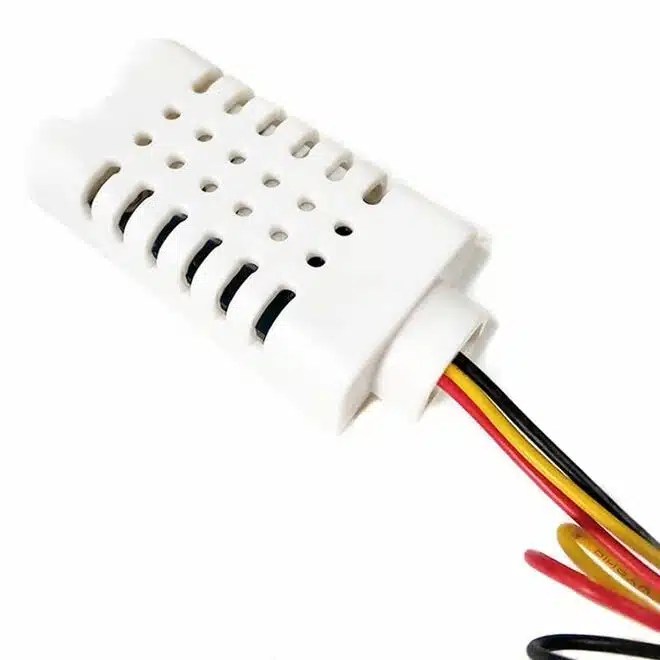

AM2302/AM2302B Single-bus Digital Temperature & Humidity Sensor
Original price was: ₹899.00.₹493.00Current price is: ₹493.00. (Excl. 18% GST)
Price (Excl. GST): ₹493.00
Price (Incl. GST): ₹581.74
- Voltage: 5V
- Port: digital two-way single bus
- Temperature range: -40-80 °C ± 0.5 °C
- Humidity: 20-90% RH ± 2% RH
- Platform: Arduino, SCM
4 in stock
18 in stock
17 in stock
6 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The AM2302/AM2302B Single-bus Digital Temperature & Humidity Sensor is a sophisticated device that provides calibrated digital signal outputs for precise environmental monitoring. Utilizing advanced digital module aggregation technology and cutting-edge temperature and humidity sensing methods, it ensures exceptionally high reliability and long-term stability. This sensor features a capacitive humidity sensing element coupled with a high-precision temperature measurement component, interfaced with a high-performance 8-bit microcontroller for accurate data processing.
Notable for its excellent quality, the AM2302/AM2302B boasts ultra-fast response times and robust anti-interference capabilities, making it suitable for various demanding applications. Each sensor undergoes meticulous calibration in a highly accurate humidity calibration chamber, with the calibration coefficients stored directly in the microcontroller. These coefficients are used internally to process the sensing signals, ensuring precision.
The sensor uses a standard single-bus interface, facilitating easy and rapid system integration. Its compact size, low power consumption, and signal transmission capability of up to 20 meters make it ideal for a wide range of applications. Additionally, the sensor is designed for straightforward connection with just three cables, enhancing its versatility and ease of use.
Features:
- Full range temperature compensated
- High precision
- Calibrated digital signal
- Capacitive type
- 4 pins packaged and fully interchangeable
- Extra components not needed
- Relative humidity and temperature measurement
- Low power consumption
- Outstanding long-term stability
Package Includes:
- 1 x AM2302/AM2302B Single-bus Digital Temperature & Humidity Sensor
