LCD1604 Blue Backlight Display – 16×04 LCD Display Module
Original price was: ₹498.00.₹350.00Current price is: ₹350.00. (Excl. 18% GST)
Price (Excl. GST): ₹350.00
Price (Incl. GST): ₹413.00
- HD44780 compatible Driver IC
- Input Voltage: 5V
- Resolution: 16×4 characters
- Backlight Color: Blue
- Pixel Color: White
5 in stock
Out of stock
3 in stock
Out of stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.

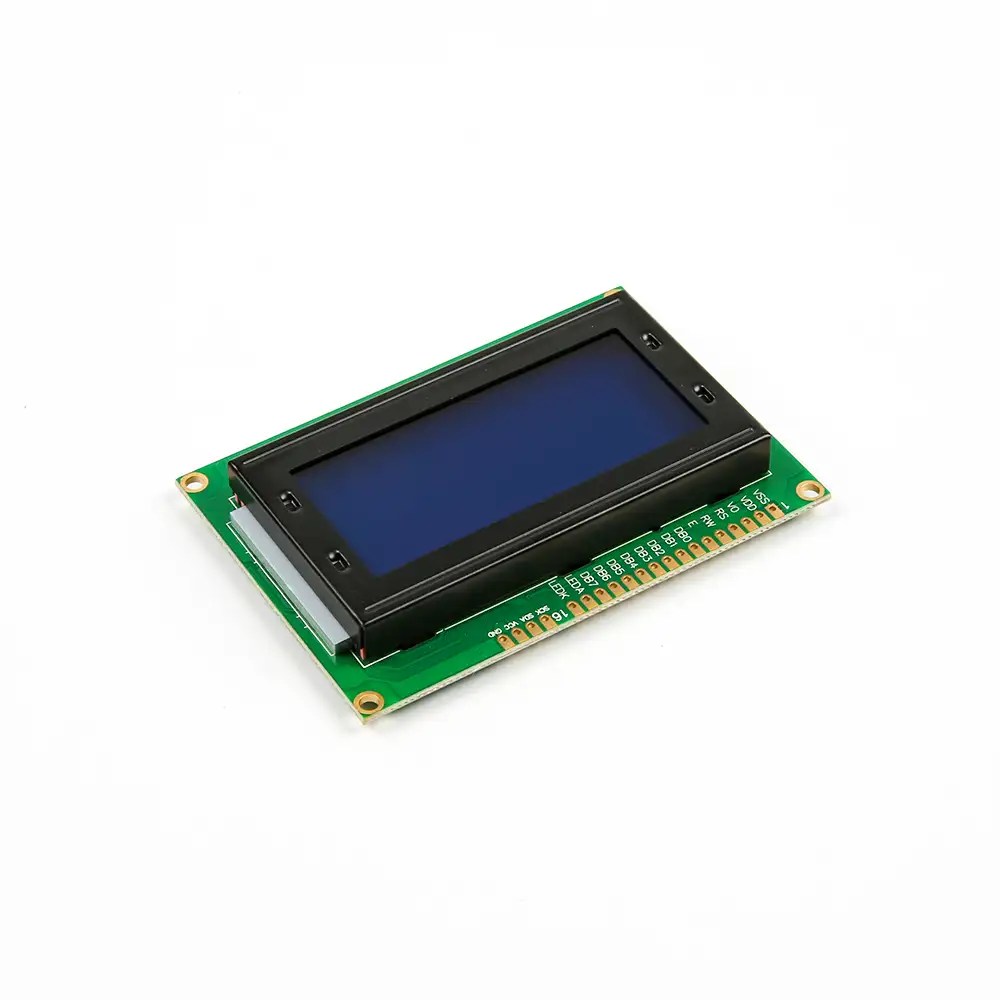

LCD1604 Blue Backlight Display – 16×04 LCD Display Module
LCD1604 Blue Backlight Display has 16 Characters * 4 Lines, Character LCD Module, White Character, Blue Backlight.
The LCD1604 Blue Backlight is a 16×4 character LCD (Liquid Crystal Display) module featuring a vibrant blue backlight. This module offers a clear and easy-to-read display with 16 characters per line and 4 lines in total, providing ample space for presenting text and basic graphics. The blue backlight enhances visibility, making it suitable for use in various lighting conditions. Typically controlled using microcontrollers or other embedded systems, the LCD1604 Blue Backlight is commonly utilized in electronic projects, DIY gadgets, instrumentation, and industrial applications where real-time data display is required. Its compact size, low power consumption, and compatibility with standard interfaces make it a popular choice for integrating visual output into electronic devices and systems.
Features
| Display Construction | 16 Characters * 4 Lines |
|---|---|
| Display mode | TN/STN |
| Display type | Positive Transflective |
| Backlight | LED/4.2VDC |
| Viewing direction | 6 o’clock |
| Operating temperature | Indoor |
| Driving voltage | Single power |
| Driving method | 1/16 duty,1/4 bias |

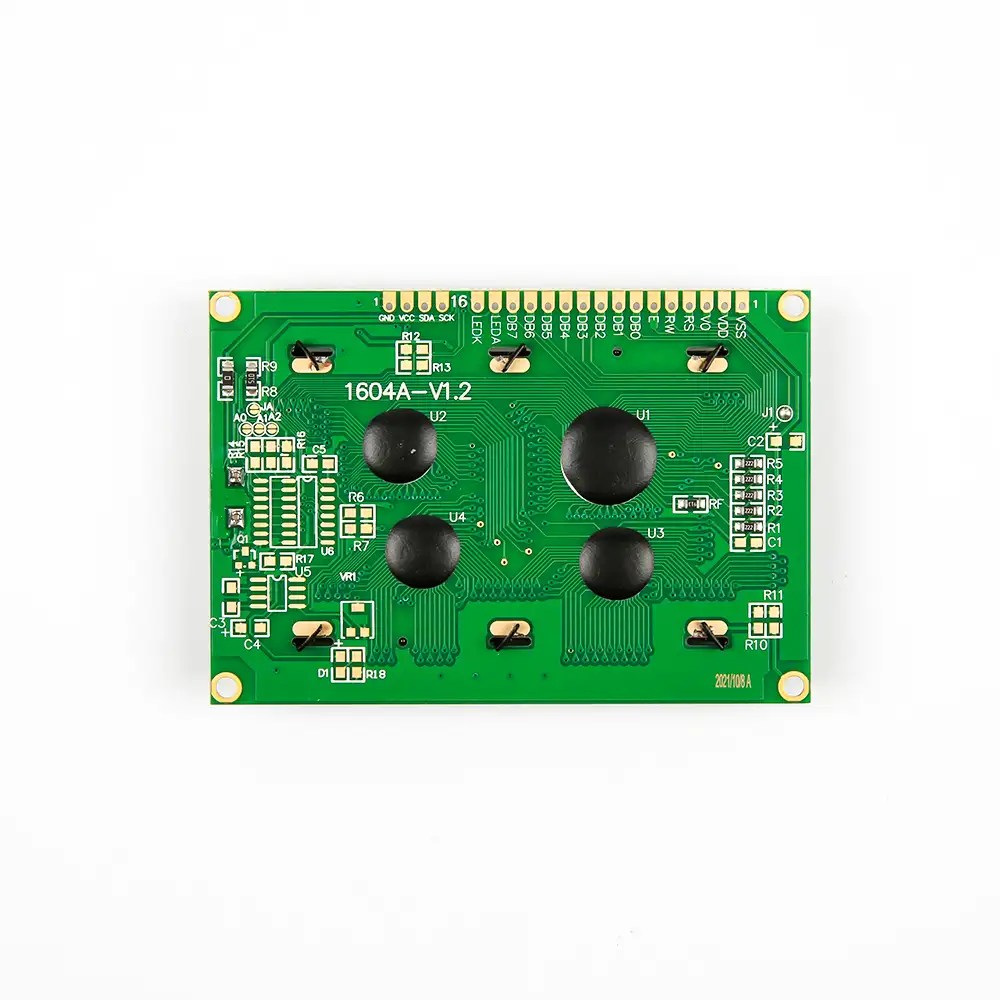

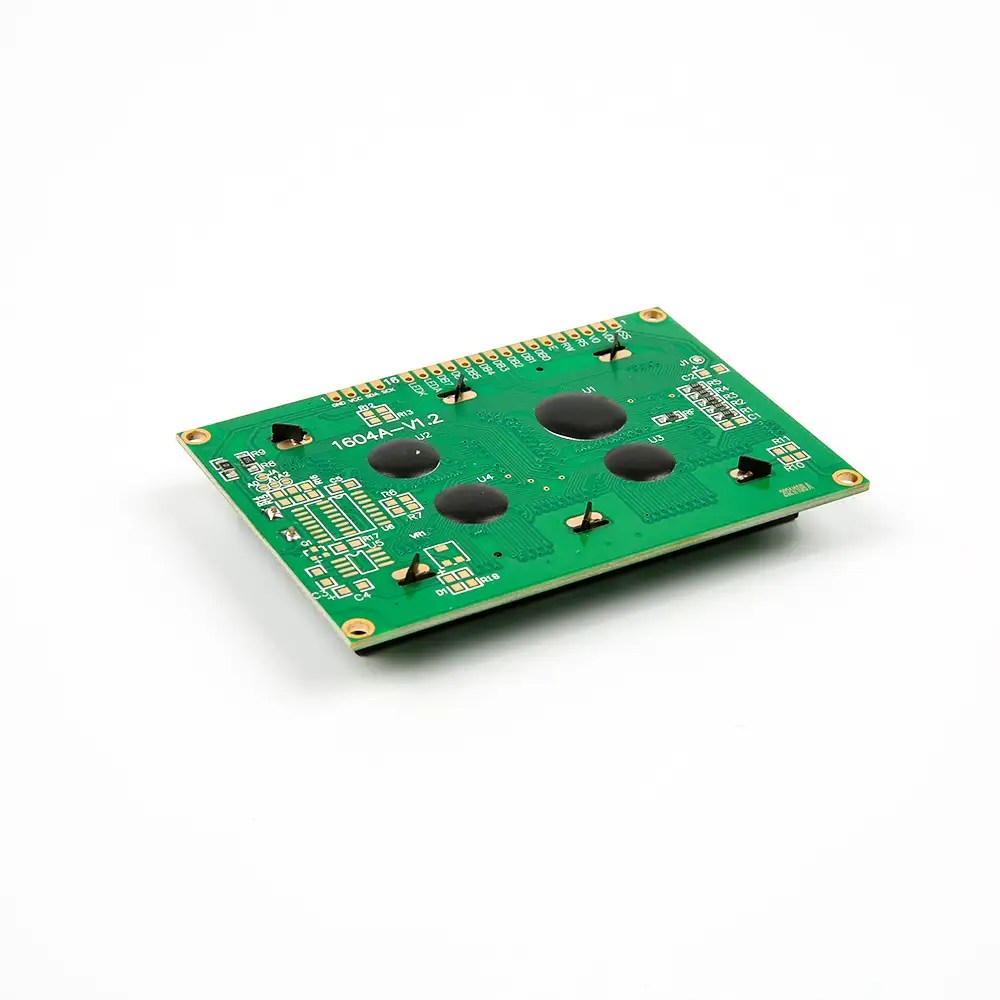

| Type | COB (Chip On Board) |
| Number of data line | 8-bit parallel |
| Connector | Pin / ZEBRA |
Specification
| Driver IC | HD44780 or Equivalent |
|---|---|
| Interface | Parallel |
| Backlight | Blue |
| Character Color | White |
| Character Set | ASCII |
| Dimension | 87 * 60 * 13.5 |
Pin Configuration
| PIN NO. | SYMBOL | DESCRIPTION | FUNCTION |
|---|---|---|---|
| 1 | VSS | Ground | 0V (GND) |
| 2 | VCC | Power Supply For Logic Circuit | +5V |
| 3 | VEE | LCD Contrast Adjustment | |
| 4 | RS | Instruction/Data Register Selection | RS = 0 : Instruction Register RS = 1 : Data Register |
| 5 | R/W | Read/Write Selection | R/W = 0 : Register Write R/W = 1 : Register Read |
| 6 | E | Enable Signal | |
| 7 | DB0 | Data Input/Output Lines | 8 BIT: DB0-DB7 |
| 8 | DB1 | ||
| 9 | DB2 | ||
| 10 | DB3 | ||
| 11 | DB4 | ||
| 12 | DB5 | ||
| 13 | DB6 | ||
| 14 | DB7 | ||
| 15 | LED+ | Supply Voltage For LED+ | +5V |
| 16 | LED- | Supply Voltage For LED- | 0V |
Documents
PACKAGE INCLUDES
- 1 X 16×04 Blue Backlight LCD Display Display
