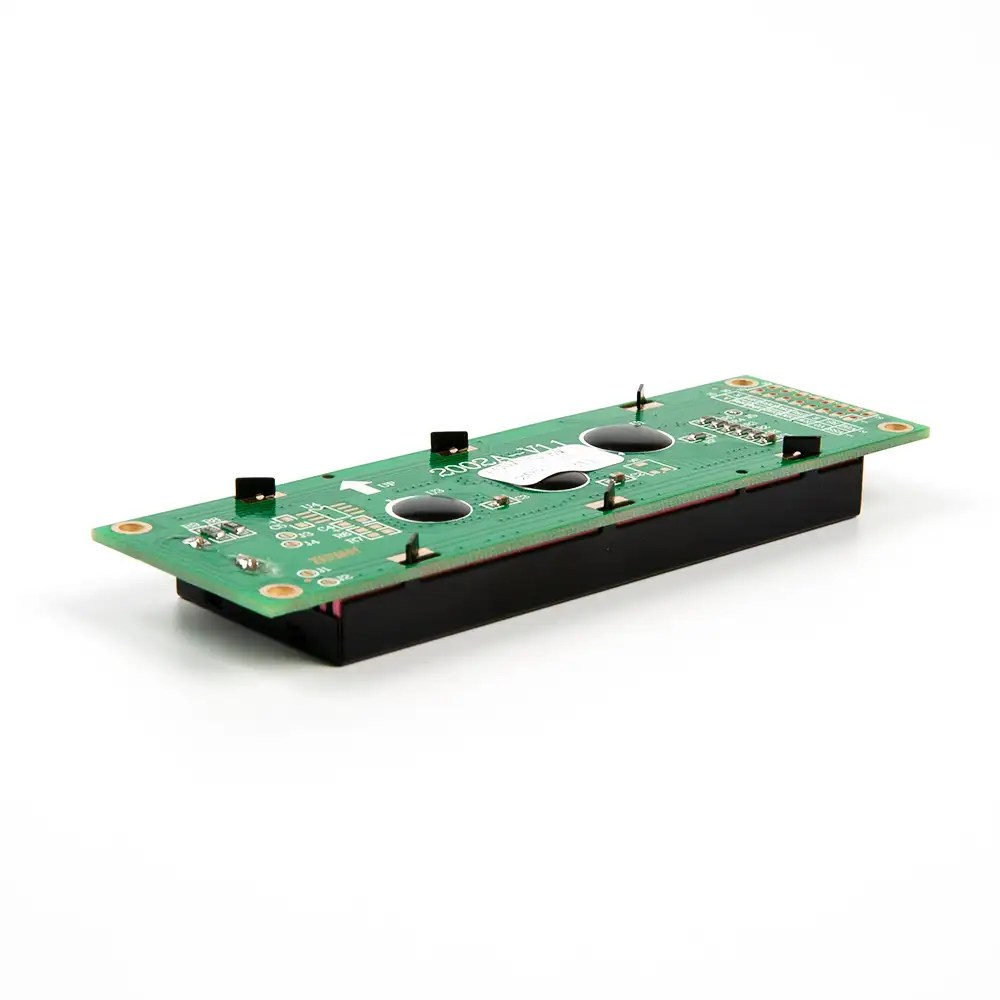

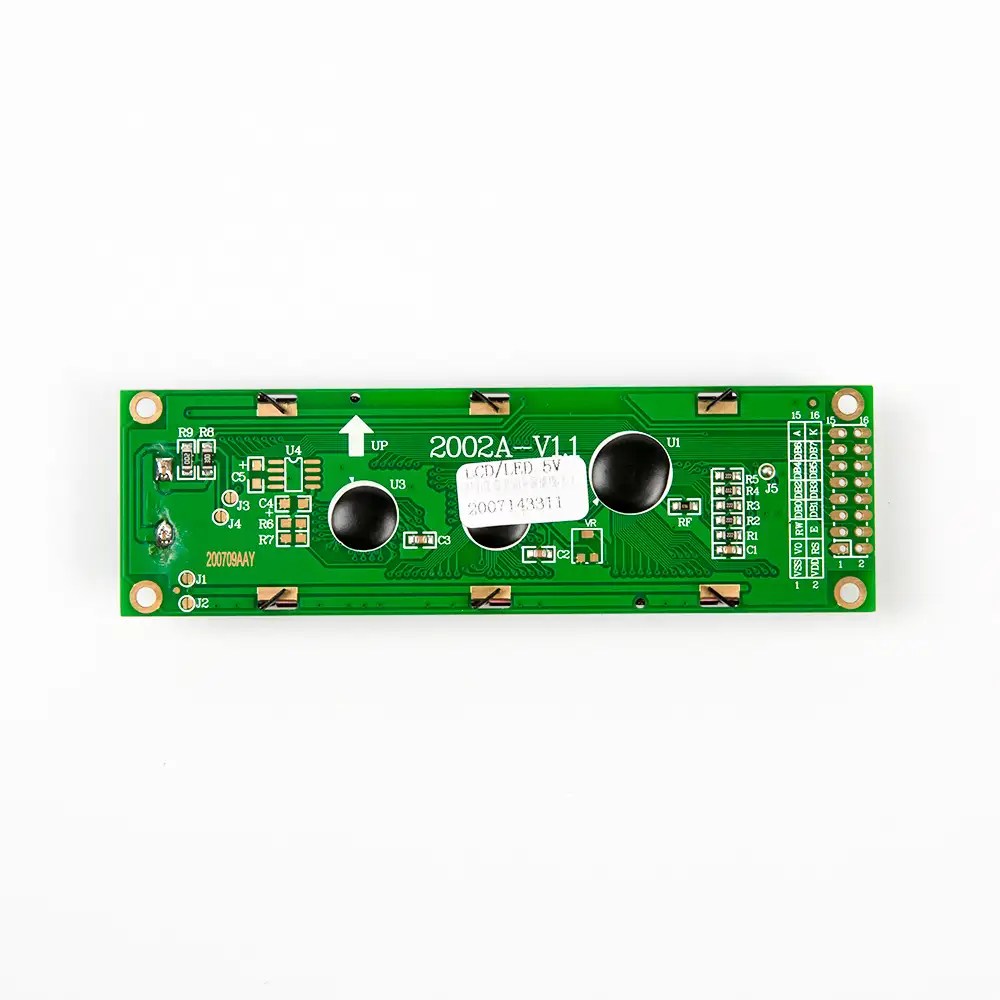

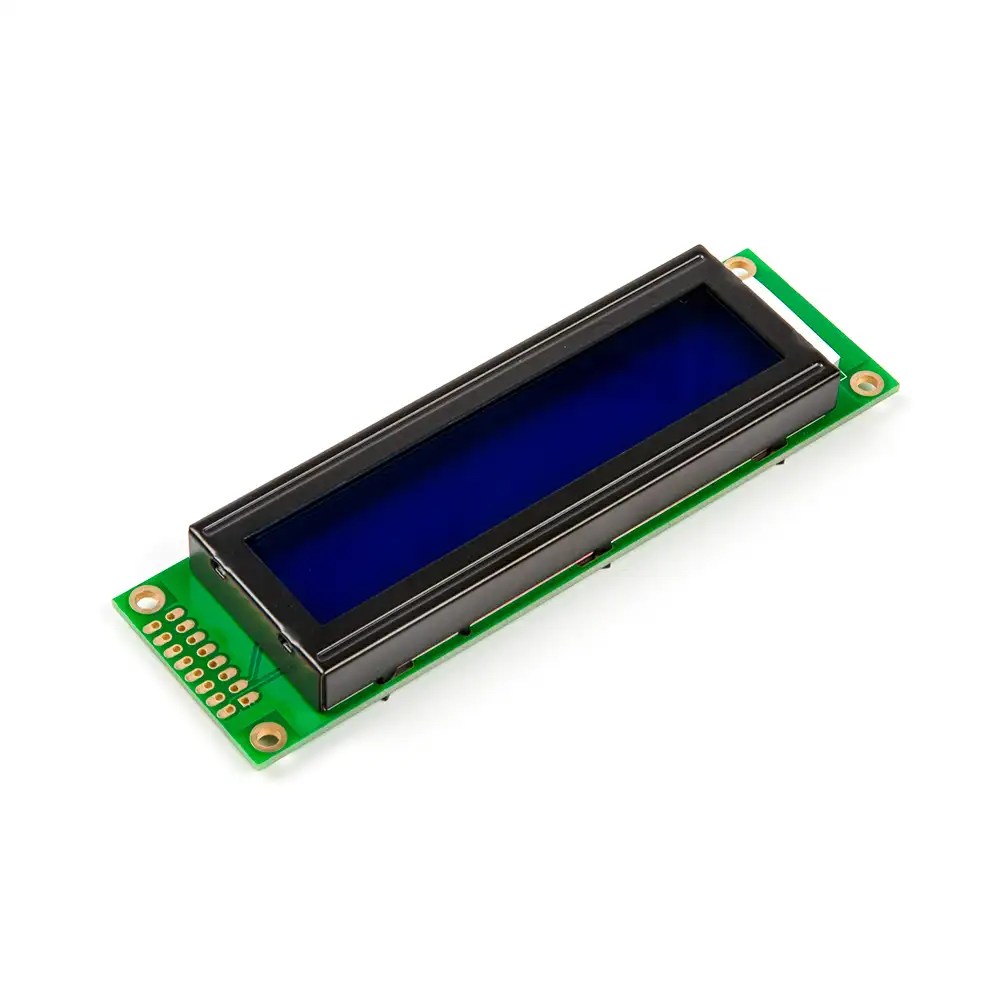

LCD2002 Display With Blue Backlight
Original price was: ₹450.00.₹319.00Current price is: ₹319.00. (Excl. 18% GST)
Price (Excl. GST): ₹319.00
Price (Incl. GST): ₹376.42
- Model: LCD2002
- Character Color: Black
- Backlight: Blue
- Supply voltage: 5V
- Dimensions:: 116 x 37 x 13.5(mm)
- Characters: 20
- Rows: 2
5 in stock
Out of stock
Out of stock
Out of stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
If you want to add some visual output to your projects, you’ll need a display. If you need moderate data on display, the LCD2002 Display is a quite good solution. 5V LCD2002 LCD display module having blue backlight is a high-quality LCD display with Viewing Area 83.0 X 18.60.
Features
- 20×2, 20 characters wide, 2 rows
- Black text on the Blue background
- The module can easily interface with an MCU
- The module is a low-power consumption character
- Single LED backlight included can be dimmed easily with a resistor
- 20X2 Character LCD Display Module Blue Backlight.
- Display Format: 20 Characters x 2 lines
- Built-in controller: ST 7066 (or equivalent)
- Duty cycle: 1/16
- Blue backlight
Specifications
| Model | LCD2002 |
| Input Voltage (V) | 5 |
| Characters | 20 |
| Character Color | Black |
| Backlight | Blue |
| Viewing Area | 83.0 X 18.60 |
| Length (mm) | 116 |
| Width (mm) | 37 |
| Height (mm) | 13.5 |
| Weight (gm) | 53 |
Pin Configuration
| Pin No. | Symbol | Level | Description |
|---|---|---|---|
| 1 | VSS | 0V | Ground |
| 2 | VDD | 5.0V | Supply Voltage for logic |
| 3 | VO | (Variable) | Operating voltage for LCD |
| 4 | RS | H/L | H: DATA, L: Instruction code |
| 5 | R/W | H/L | H: Read L: Write |
| 6 | E | H,H→L | Chip enable signal |
| 7 | DB0 | H/L | Data bus line |
| 8 | DB1 | H/L | Data bus line |
| 9 | DB2 | H/L | Data bus line |
| 10 | DB3 | H/L | Data bus line |
| 11 | DB4 | H/L | Data bus line |
| 12 | DB5 | H/L | Data bus line |
| 13 | DB6 | H/L | Data bus line |
| 14 | DB7 | H/L | Data bus line |
| 15 | A | － | Power supply for B/L + |
| 16 | K | － | Power supply for B/L – |
Package Includes
- 1 x 5V LCD2002 LCD Display With Blue Backlight
