2.0 inch LCD color screen TFT SPI Module
Original price was: ₹1,268.00.₹700.00Current price is: ₹700.00. (Excl. 18% GST)
Price (Excl. GST): ₹700.00
Price (Incl. GST): ₹826.00
- Display Size: 2.0″
- Driver IC: ILI9225
- Input Voltage (V): 3.3 to 5
- Pixel Resolution: 176 x 220
- PCB Size (mm): 62×38 (LxW)
- Interface Type: SPI
| Weight | 20 g |
|---|
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.

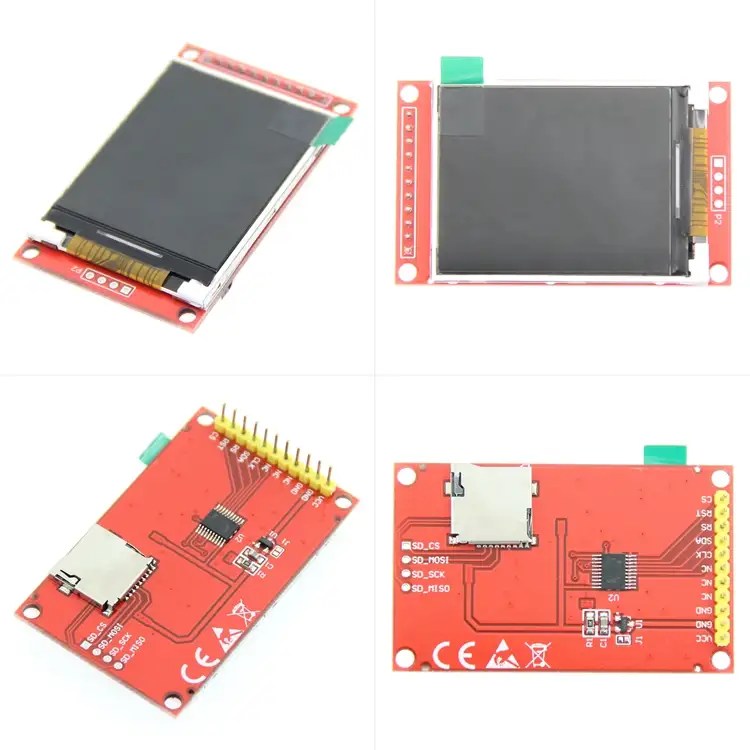

The 2.0 Inch SPI TFT LCD Color Screen Module display uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available! The 2.0-inch TFT display has 176×220 color pixels. Unlike the low cost “Nokia 6110” and similar LCD displays, which are CSTN type and thus have poor color and slow refresh, this display is a true TFT! The TFT driver (ILI9225) can display full 18-bit color (262,144 shades!). And the LCD will always come with the same driver chip so there are no worries that your code will not work from one to the other.

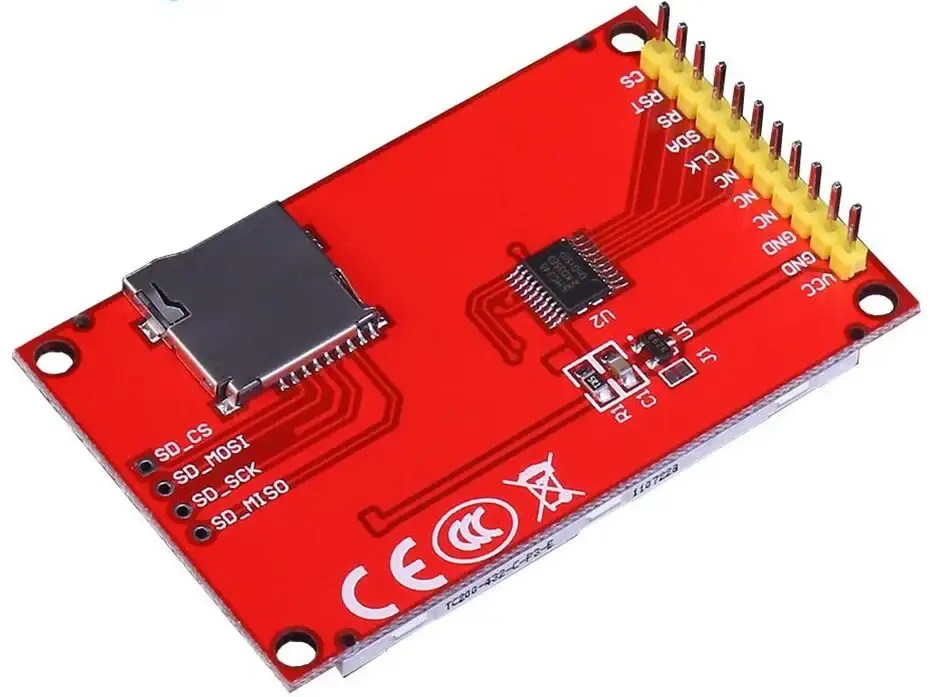

The breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic. We also had a little space so we placed a microSD card holder so you can easily load full-color bitmaps from a FAT16/FAT32 formatted microSD card.
We also have a smaller version of this Display,
Product Specification
| Name | Parameter |
| Display Color | 16BIT RGB 65K color |
| SKU | DIS0006 |
| Screen Size | 2.0(inch) |
| Type | TFT |
| Driver IC | ILI9225 |
| Resolution | 176*220 (Pixel) |
| Module Interface | 4-wire SPI interface |
| Backlight | 3 White Led |
| Active Area | 31.68×39.60 (mm) |
| Module PCB Size | 38.30×62.48 (mm) |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Operating Voltage | 5V/3.3V |
| Power Consumption | TBD |
| Rough Weight(Package containing) | 20 (g) |
Pin Configuration
| S.No | Pin Label | Description |
| 1 | VCC | LCD Power positive (3.3V~5V) |
| 2 | GND | LCD Power ground |
| 3 | GND | LCD Power ground |
| 4 | NC | Not defined, reserved |
| 5 | NC | Not defined, reserved |
| 6 | NC | Not defined, reserved |
| 7 | CLK | LCD SPI bus clock signal |
| 8 | SDA | LCD SPI bus write data signal |
| 9 | RS | LCD register / data selection signal, high level: register, low level: data |
| 10 | RST | LCD reset signal, low level reset |
| 11 | CS | LCD chip select signal, low level enable |
Documents
- 2.0 inch Arduino SPI Module User Manual
- 2.0 inch Arduino SPI Module Size Picture
- 2.0 inch TFT Specifications
- 2.0 inch Arduino SPI Module Schematic
- 2.0 inch TFT LCD Schematic and PCB Package Library
- Driver IC ILI9225 Data sheet
Package includes
1 x 2.0 Inch SPI TFT LCD Color Screen Module
