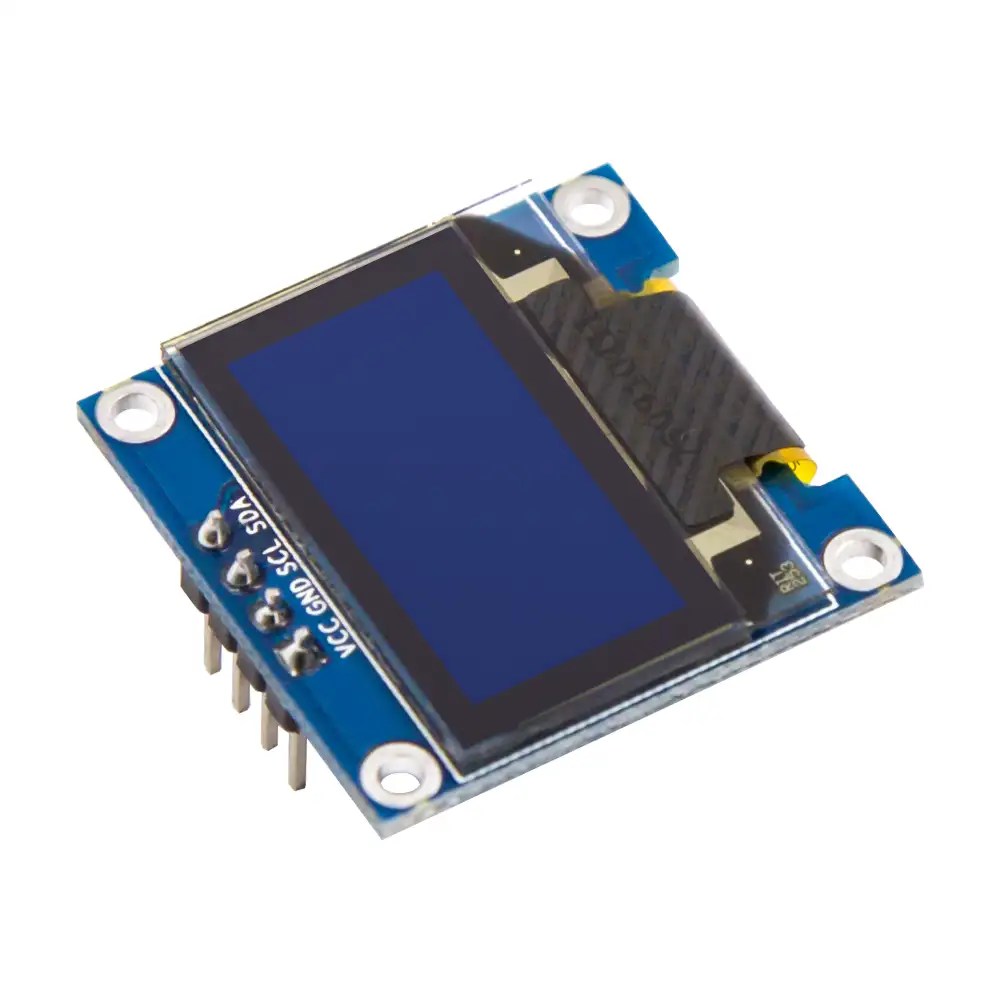

0.96 Inch I2C/IIC 4-Pin OLED Display Module (WHITE)
Original price was: ₹283.00.₹161.00Current price is: ₹161.00. (Excl. 18% GST)
Price (Excl. GST): ₹161.00
Price (Incl. GST): ₹189.98
- Size: 0.96 inch
- Resolution: 128 x 64
- Controlling Chip: SSD1306
- Display Area: 21.74 x 10.86mm
- Driving Voltage: 3.3-5V
- Operating Temperature: -40~70 celsius
- Interface Type: IIC
- Light Color: White
| Weight | 5 g |
|---|---|
| Dimensions | 27 × 27 × 6 mm |
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
OLED (Organic Light-Emitting Diode) technology is at the forefront of display advancements due to its unique self-emitting capability. Unlike LCDs that rely on a backlight, OLED displays feature a thin organic film positioned between layers of anode and cathode. When an electric current passes through this organic layer, it emits light directly, resulting in vibrant, sharp images with excellent contrast and color accuracy.
The 0.96 Inch I2C/IIC 4pin OLED Display Module (WHITE) supports multiple communication protocols such as SPI, IIC, and I2C, ensuring seamless integration with various microcontrollers. It boasts a resolution of 128×64 pixels, providing clear and detailed visuals suitable for a wide range of applications. The module package includes the display board, OLED screen, and a pre-soldered 4-pin male header, facilitating easy connectivity.
This OLED monochrome display module excels in brightness and contrast, thanks to its self-emitting nature, which ensures visibility under diverse lighting conditions without requiring a separate backlight. Its slim profile and wide viewing angle make it ideal for applications needing compact and versatile display solutions. Operating reliably across a broad temperature range and consuming minimal power, it is particularly suitable for portable devices and energy-efficient applications.
0.96 Inch I2C/IIC OLED Display Module Specifications
| Display Size | 0.96 inch |
| Display Type | OLED Display |
| Resolution | 128 x 64 Pixels |
| Driving Voltage | 3.3-5V |
| Interface Type | IIC |
| Weight | 5 grams |
| Dimensions | 2.7cm x 2.8cm |
0.96 OLED Display – Pin Configuration
- VCC: 3.3 volts – 5 Volts
- GND: Ground
- SCL: Serial Clock
- SDA: Serial Data
Features
- Super High Brightness (Adjustable)
- Super High Contrast (Adjustable)
- Embedded Driver/Controller
- Display size: 0.96″
- Resolution radio:128 x 64
- Interface modes: I2C/IIC
- working voltage: 3.3V
- Control Chip: SSD1306
Downloads
Applications
- Watch
- Head-mounted displays
- Meters
- Other intelligent instruments.
Package Includes
1 x 0.96 Inch I2C IIC 4pin OLED Display Module WHITE
