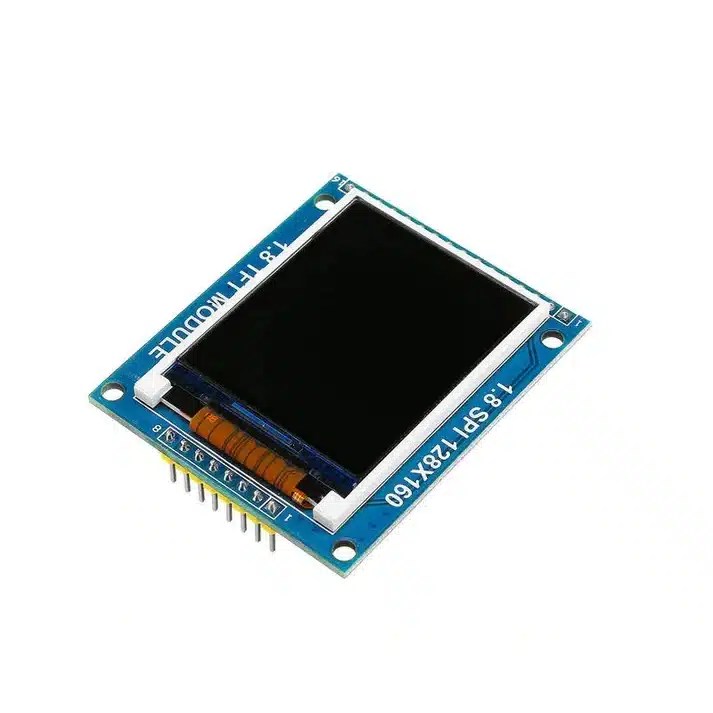

1.8 Inch ST7735 TFT LCD Module with 4 IO 128*160 (BLUE)
Original price was: ₹550.00.₹345.00Current price is: ₹345.00. (Excl. 18% GST)
Price (Excl. GST): ₹345.00
Price (Incl. GST): ₹407.10
The Blue 1.8-inch ST7735 TFT LCD Module offers a small, colorful, and bright display for various projects. Here are its features and specifications:
- Display Size: 1.8″
- Driver IC: ST7735
- Input Voltage (V): 3.3 to 5
- Pixel Resolution: 128 x 160
- Interface Type: 4-wire SPI interface
- Expandable Storage: Includes an SD card slot for easy data storage
- Arduino Compatible: Compatible with the QD-UTFT library for Arduino
| Weight | 18 g |
|---|
1 in stock
Out of stock
3 in stock
Out of stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
1.8 Inch TFT Display – Product Introduction
- 1.8-inch color screen supports 16BIT RGB 65K color display, rich display colors
- 128X160 resolution, clear display
- Using SPI serial bus, only a few IOs are needed to light up the display
- With an SD card slot for convenient function expansion
- Provides low-level libraries and rich sample programs for Arduino, C51, and STM32 platforms
- Military-grade process standards, long-term stable operation
- Provide underlying driver technology support
Product Specification
| NAME | PARAMETER |
| Display Color | 16BIT RGB 65K color |
| SKU | DIS0002 |
| size | 1.8(inch) |
| type | TFT |
| Driver chip | ST7735 |
| Resolution | 128*160 (Pixel) |
| Module interface | 4-wire SPI interface |
| Backlight | 2 White LEDs |
| Effective display area (AA area) | 28.03×35.04 (mm) |
| Module PCB base plate size | 44.96×53.47 (mm) |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| VCC supply voltage | 3.3V~5V |
| Logic IO port voltage | 3.3V(TTL) |
| Power consumption | To be determined |
| Weight (including packaging) | 18 (g) |

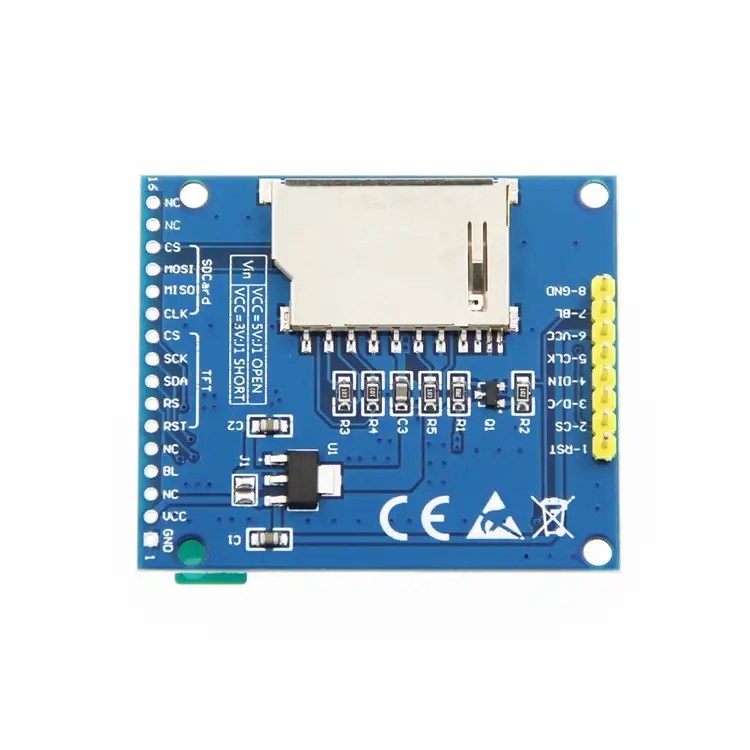

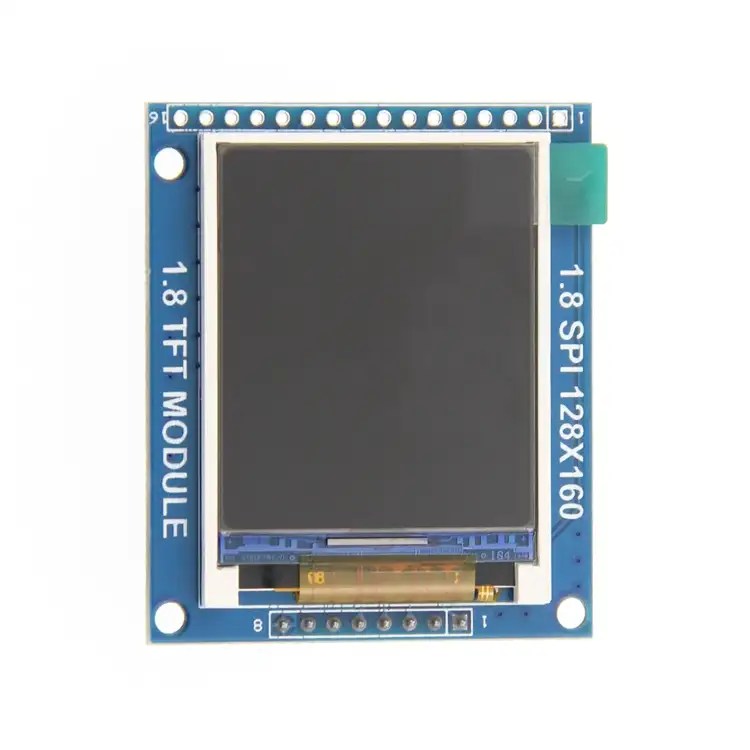

Pin Configuration
| S.No | Pin Number | Description |
| 1 | RST | LCD reset signal, low level reset |
| 2 | CS | LCD chip select signal, low level enable |
| 3 | D/C | LCD screen register/data selection signal, low level: register, high level: data |
| 4 | DIN | LCD screen SPI bus write data signal |
| 5 | CLK | LCD screen SPI bus clock signal |
| 6 | VCC | LCD screen power supply positive (3.3V~5V) |
| 7 | BL | Backlight control, high level lights up, if no control is needed, connect 3.3V and keep on |
| 8 | GND | LCD power ground |
Package Include
1 x Blue 1.8 Inch ST7735 TFT LCD Module with 4 IO 128*160
This module is suitable for projects requiring a small and colorful display with an SPI interface and SD card support. It offers compatibility with Arduino and other microcontrollers, making it versatile for various applications.
