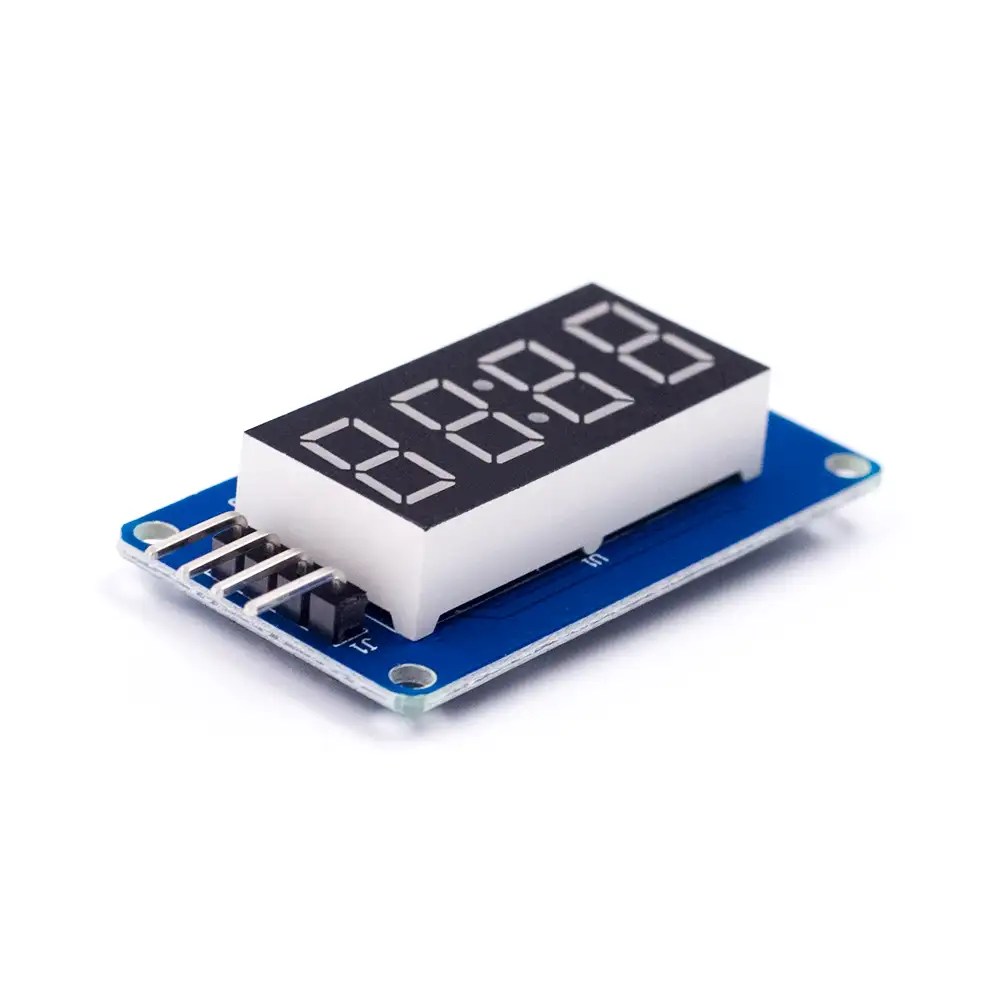

TM1637 4 Bits Digital Tube LED Display Module With Clock Display for Arduino
Original price was: ₹99.00.₹34.00Current price is: ₹34.00. (Excl. 18% GST)
Price (Excl. GST): ₹34.00
Price (Incl. GST): ₹40.12
- 4-digit 7-segment LED display showing numbers (0-9) and some letters (A, B, C, etc.).
- Managed by TM1637 driver chip for simplified interfacing.
- Uses I2C protocol with only two wires (SDA and SCL) to connect to the microcontroller.
- Compact design with 0.36-inch digit height per segment.
| Weight | 10 g |
|---|---|
| Dimensions | 42 × 24 × 12 mm |
4 in stock
2 in stock
Out of stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The TM1637 Module 4 Bits Digital Tube LED Display Module offers a cost-effective solution for displaying data in Arduino projects. While primarily limited to numerical data, it also supports certain alphanumeric characters like A, B, C, etc.
This 7-segment LED display consists of 4 digits managed by the TM1637 driver chip, requiring just two connections for control. Utilizing the I2C bus, it operates with only 2 wires, freeing up additional pins on your microcontroller for other peripherals.
The module features a 12-pin clock and includes four common anode 0.36-inch digital tubes, allowing the MCU to control them effectively with minimal wiring using the TM1637 IC.
TM1637 Module Features
- Ease to use.
- Ease of multiplexing.
- Can use as a 4 digit display unit.
- Can use as a clock display.
- DIY clock project.
- 4 digit display unit.
- Electrical/Electronic projects.
- The counter project using 7 segment display.
- 4 M2 screws positioning holes for easy installation

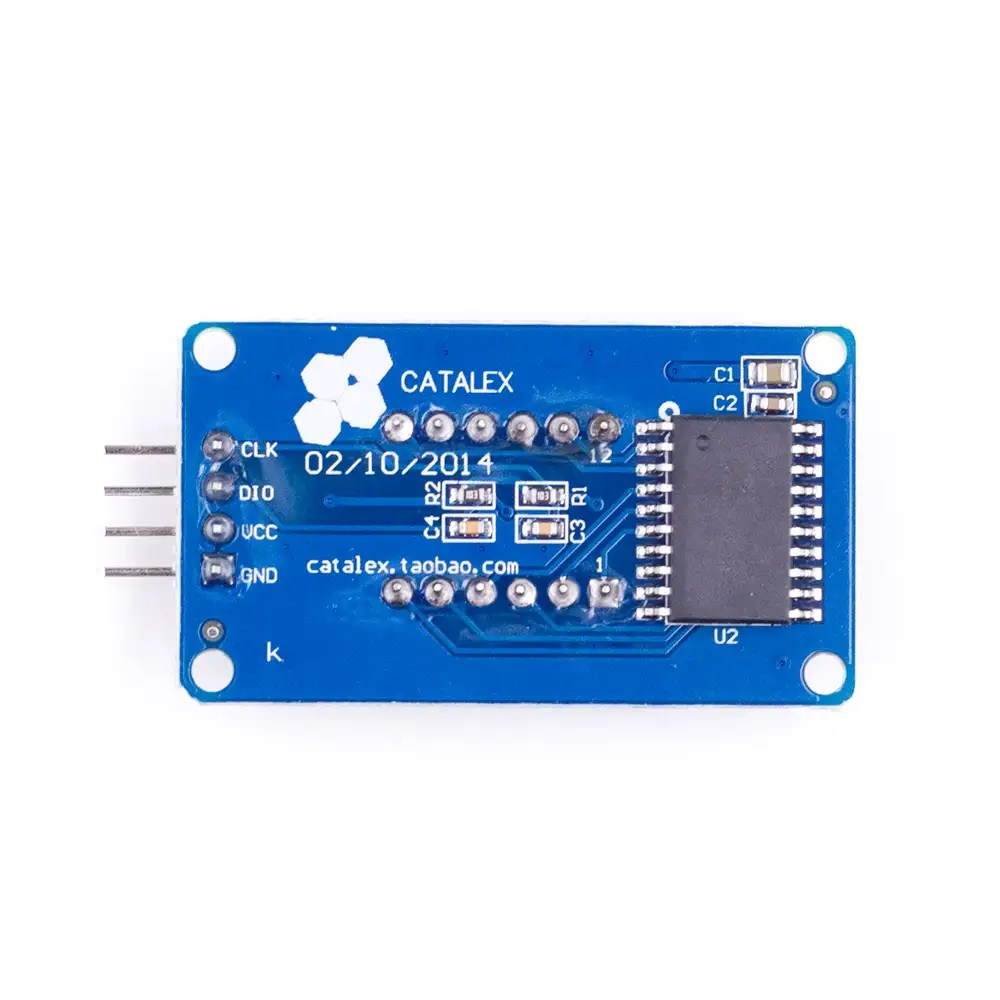

Pin Configuration
- VCC: 5V
- GND: GND
- DIN: Data Input
- CLK: Clock
Documents
Package Includes
- 1 x 4 Bits Digital Tube LED Display Module (TM1637 Module)
