1.3 Inch SPI 7-Pin OLED Display Module with CS Pin (BLUE)
Original price was: ₹690.00.₹340.00Current price is: ₹340.00. (Excl. 18% GST)
Price (Excl. GST): ₹340.00
Price (Incl. GST): ₹401.20
- Size: 1.3 inch
- Resolution: 128 x 64
- Controlling Driver Chip: SH1106
- Display Area: 21.74 x 10.86mm
- Driving Voltage: 3.3-5V
- Operating Temperature: -40~70 Celsius
- Interface Type: SPI
- Light Color: BLUE
- Number of pins: 7
1 in stock
6 in stock
1 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
1.3 Inch SPI OLED LCD Module + CSpin 7pin (with GND VCC) White SH1106 Chip
The OLED Display 1.3-inch SPI White module is a versatile display module compatible with any microcontroller utilizing SPI or I2C protocols. With a resolution of 128×64 pixels, it offers crisp graphics and text display capabilities.

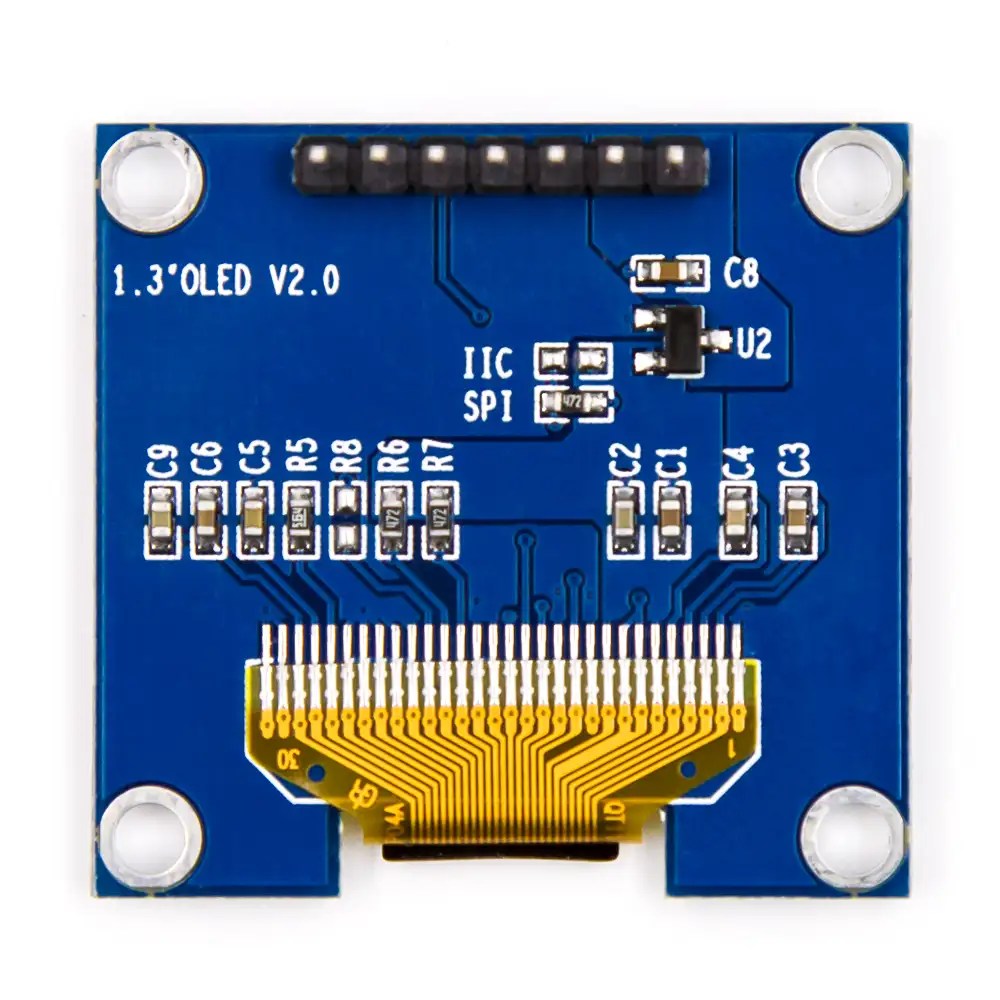

To set up the OLED Display 1.3-inch SPI White module for I2C communication, some modifications are required. Firstly, the resistor at position R3 should be resoldered to R1, and the R8 resistor should be shorted with soldering tin (essentially creating a 0 Ohm resistor). The pull-up resistors R6 and R7 are already soldered, requiring no further action.
Once these modifications are complete, the module is prepared for I2C communication. The CS (Chip Select) Pin is optional and can be connected to GND. The DC (Data/Command) Pin selects the address; for standard addressing, it should be wired to GND.
Regarding the RES (Reset) pin, it requires a low pulse during startup and a high voltage during operation, similar to the SPI mode. For optimal operation, it’s recommended to connect a 100nF capacitor to GND and a 10k resistor to VCC.
1.3 Inch SPI 7-Pin OLED – Specifications
| Display Size | 1.3 inch |
| Display Type | OLED Display |
| Resolution | 128 x 64 Pixels |
| Driving Voltage | 3.3-5V |
| Interface Type | SPI |
- No Backlight required as the display is self-illuminating.
- Low Power Requirement
- Large Viewing Angle
- Full Compatible with Arduino
- Support for SPI and I2C
- Factory configured for SPI protocol (can easily change to IIC)
- Better performance characteristics than traditional LCD and LED displays.
Pin Definition
- GND: power ground wire
- VCC: positive pole of power supply
- SCL/D0/CLK: SPI clock line
- SDA/D1/MOSI: SPI data line
- RST/RES: Display reset
- DC: Data command selection pin
- CS: Chip Select Pin
1.3 Inch SPI 7-Pin OLED Display Applications
- Watch
- Head-mounted displays
- Meters
- Other intelligent instruments.
Downloads
Package Includes
1 X 1.3″ Inch SPI OLED LCD Module + CSpin 7pin (with GND VCC) White SH1106 Chip
