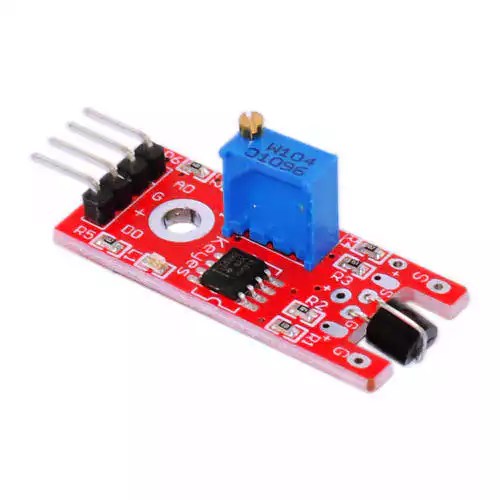

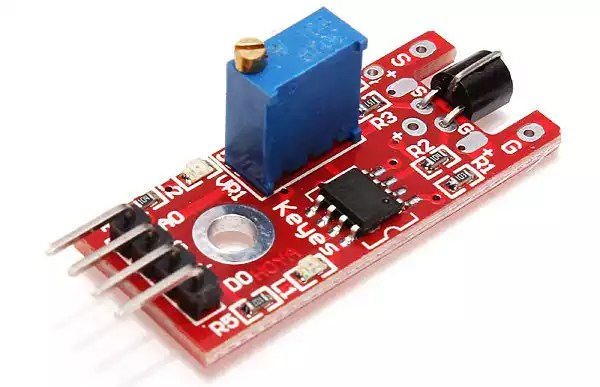

KY-036 Metal Touch Sensor/Human Body Touch Sensor Module
Original price was: ₹199.00.₹36.00Current price is: ₹36.00. (Excl. 18% GST)
Price (Excl. GST): ₹36.00
Price (Incl. GST): ₹42.48
- Working voltage: for DC 5V
- Dimensions: 43 x 16 x 15 mm / 1.69 x 0.63 x 0.59 inch
- Single channel signal output
- Low level output signal used for human body touch sensor alarm
- Adjustable sensitivity
44 in stock
8 in stock
39 in stock
6 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The KY-036 Metal Touch Sensor/Human Body Touch Sensor Module is an advanced device designed for reliable touch detection in a wide range of applications. It uses a floating lead on a Darlington transistor to accurately detect both human touch and contact with metal objects. When a touch is detected, the module activates either a green or red LED to provide clear visual feedback.
One of the key features of this sensor module is its low power consumption, making it an energy-efficient option for prolonged use. It supports a wide power supply range of 2 to 5.5 volts DC, offering flexibility for various power setups. This makes it a modern and versatile alternative to traditional button-touch mechanisms, enhancing user experience and interface design.
The module is designed for easy installation, featuring four M2 screw holes for straightforward integration into different projects or devices. It is particularly suitable for interactive displays, robotics, and automation systems, where it delivers reliable touch detection and intuitive feedback, significantly improving user interaction.
Features of KY-036 Metal Touch Sensor:
- Low power consumption
- Power supply for 2 ~ 5.5V DC
- Can replace the traditional touch of a button
- Four M2 screws positioning holes for easy installation
Package Includes
- 1 x KY-036 Metal Touch Sensor module
