KY-033 TCRT5000 Tracking Module
Original price was: ₹120.00.₹37.00Current price is: ₹37.00. (Excl. 18% GST)
Price (Excl. GST): ₹37.00
Price (Incl. GST): ₹43.66
- Operating Voltage: 3-5.5V
- Supply Current: ≥ 20mA
- Optimal Sensing Distance: 3mm
- Working voltage of 5V, the output of the black line low, white line of high output
- Uses Infrared Light to Detect Anti-Interference Ability
- Sensors to adopt TCRT5000 High Sensitivity, Stable Performance
- Exquisite workmanship, with the indicator
- Has a fixed bolt hole for easy installation
| Weight | 2 g |
|---|---|
| Dimensions | 42 × 10 × 10 mm |
41 in stock
6 in stock
19 in stock
8 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.

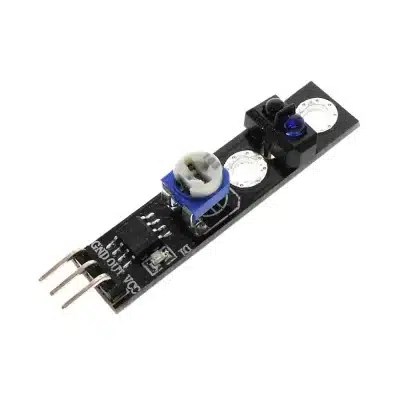

The KY-033 TCRT5000 Tracking Module is an excellent tool for building line-following robots, thanks to its ability to detect and follow lines with precision. It features a TCRT5000 reflective optical sensor mounted on a carrier board, which is specifically designed for this purpose. A built-in potentiometer allows for adjustable sensitivity of the sensor, enabling fine-tuning based on the specific requirements of your project.
While primarily intended for line-following robots, this module can also be utilized in mini-sumo robots for line control applications. The sensor operates based on the behavior of light when it interacts with different surfaces. Light reflected off a white surface is almost entirely reflected back to the sensor, whereas light falling on a black surface is absorbed. This contrast in light reflection and absorption is used to detect the presence of lines and guide the robot’s movement effectively.
Each phototransistor is connected to a pull-up resistor to form a voltage divider that produces an analog voltage output between 0 V and VIN (which is typically 5 V) as a function of the reflected IR. The lower output voltage is an indication of greater reflection.
Features of KY-033 TCRT5000 Tracking Module :
- Working voltage of 5V, the output of the black line low, white line of high output
- Uses Infrared Light to Detect Anti-Interference Ability
- Sensors to adopt TCRT5000 High Sensitivity, Stable Performance
- Exquisite workmanship, with the indicator
- Has a fixed bolt hole for easy installation
Package Includes :
- 1 xKY-033 TCRT5000 Tracking Module
