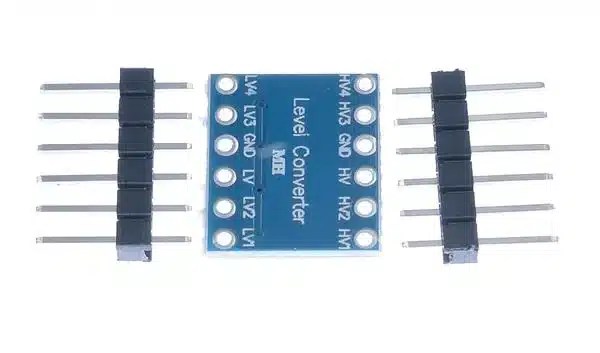

IIC I2C Logic Level Converter Bi-Directional Module 5V to 3.3V for Arduino
Original price was: ₹149.00.₹19.00Current price is: ₹19.00. (Excl. 18% GST)
Price (Excl. GST): ₹19.00
Price (Incl. GST): ₹22.42
- Number of Channels- 4
- Voltage on Lx Side- 1.8V-5V
- Voltage on Hx Side- 2.8V-6V
- Power- 2.8V 6V
- Length (mm)- 16
- Width (mm-) 13
- Height (mm- 3
- Weight (gm)- 2
| Weight | 2 g |
|---|---|
| Dimensions | 16 × 13 × 3 mm |
8 in stock
194 in stock
Out of stock
9 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The I2C Level Conversion Module 5V to 3.3V is a versatile and high-speed device designed to facilitate smooth communication between devices with different logic levels. It has four channels that can convert signals between 1.8V and 5V, making it compatible with various digital interfaces like I²C, SPI, and asynchronous TTL serial. This module is especially useful for connecting devices with different voltages, such as linking a 3.3V device to a 5V system. It efficiently steps down 5V signals to 3.3V and steps up 3.3V signals to 5V. Additionally, it supports 2.8V and 1.8V devices, offering enhanced flexibility and performance compared to previous models. This makes it an essential tool for projects involving mixed-voltage environments.
Features of I2C Level Conversion Module 5V to 3.3V:
- Mutual transform between 5V TTL and 3.3V TTL
- Four channels of logic and high voltage low voltage logic can two-way transform
- Portable and lightness, with 2 rows 6 pin contact pins
- Level Converter- 4 Channel Compatible with the bread plate, can be used directly put on the breadboard
- 4 Channel Module (great for I2C or SPI) and will work with all microcontrollers, Arduino, Raspberry Pi, Intel Edison, NXP Mbed
Package Includes:
- 1 x I2C Level Converter- 4 Channel
