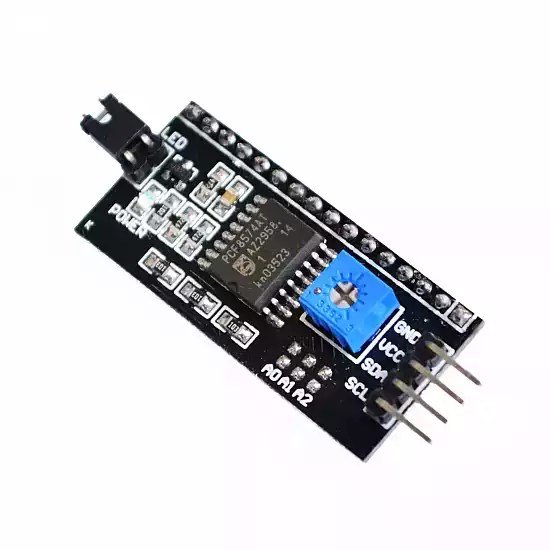

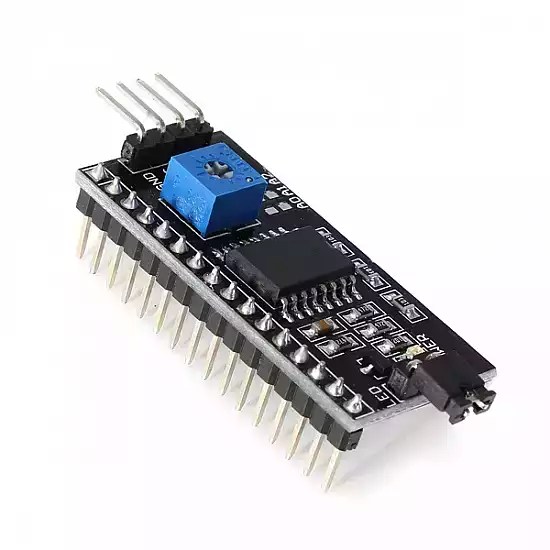

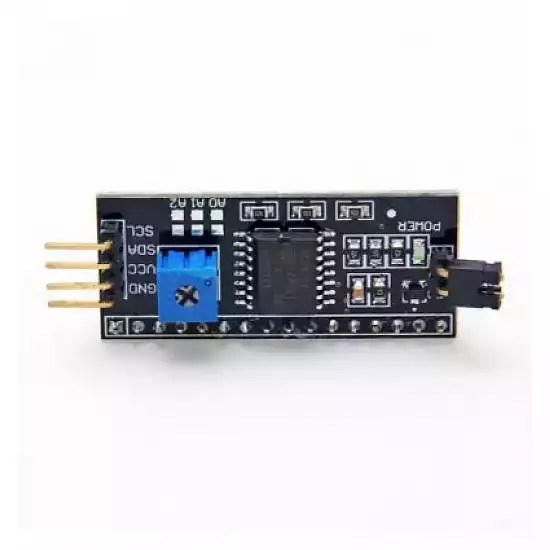

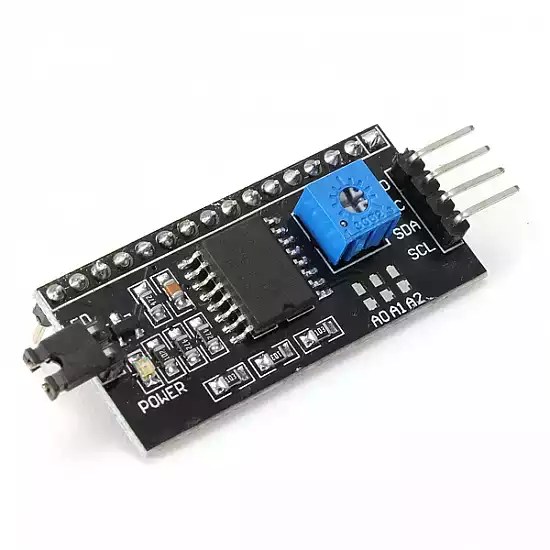

IIC/I2C PCF8574 Serial Interface Adapter Module
Original price was: ₹92.25.₹34.00Current price is: ₹34.00. (Excl. 18% GST)
Price (Excl. GST): ₹34.00
Price (Incl. GST): ₹40.12
- 5V power supply.
- Serial I2C control of LCD display using PCF8574.
- Backlight can be enabled or disabled via a jumper on the board.
- Contrast control via a potentiometer.
- Can have 8 modules on a single I2C bus (change address via solder jumpers)address, allowing
| Weight | 4 g |
|---|---|
| Dimensions | 42 × 20 mm |
14 in stock
23 in stock
Out of stock
Out of stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
This IIC/I2C Serial Interface Adapter Module (Made in India) connects LCD displays to microcontrollers via the I2C protocol. RoHS compliant, it supports standard 16×2 or 20×4 character LCD modules that use 4-bit mode, ensuring compatibility with most commercially available modules.
The board uses a PCF8574 I2C chip to convert I2C serial data into parallel data, making it easier to connect LCDs to microcontrollers like Arduino. You can find many online resources and tutorials by searching “Arduino LCD PCF8574” for guidance.
The default I2C address of this module is 0x3F, but it can be changed using three solder jumpers on the board. This feature allows you to control up to three LCD displays from a single I2C bus, each with its own address.
Features:
- 5V power supply.
- Serial I2C control of LCD display using PCF8574.
- Backlight can be enabled or disabled via a jumper on the board.
- Contrast control via a potentiometer.
- Can have 8 modules on a single I2C bus (change address via solder jumpers)address, allowing.
- Size ：41.6 x 19.2 mm.
Package Includes:
- 1 x IIC/I2C Serial Interface Adapter Module
