DS1302 Real Time Clock Module (Without CR2032 Battery)
Original price was: ₹391.00.₹70.00Current price is: ₹70.00. (Excl. 18% GST)
Price (Excl. GST): ₹70.00
Price (Incl. GST): ₹82.60
- Crystal 32.768KHz, matching capacitance 6pF
- DS1302 8-pin SMD homemade chips
- Seconds, Minutes, Hours, Day of Month, Day of Week, and Year
- Operating temperature: 0 degree — 70 degree
62 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The DS1302 Real Time Clock Module + CR2032 Battery operates like a conventional watch, delivering accurate timekeeping through a precise oscillator. The module includes a small battery that ensures continuous timekeeping even when the main power supply is disconnected. This reliable timekeeping is essential for applications requiring precise date and time information.
The DS1302 is ideal for various time-critical applications. In attendance systems, it accurately records employee check-ins and check-outs. Digital cameras use it to timestamp photos, ensuring precise date and time logging. Automated sprinkler systems rely on the RTC to schedule watering times accurately. Additionally, the module is useful in time and calendar displays, providing real-time updates for user interfaces. Its versatility and precision make it a valuable component for many projects where accurate timekeeping is crucial.

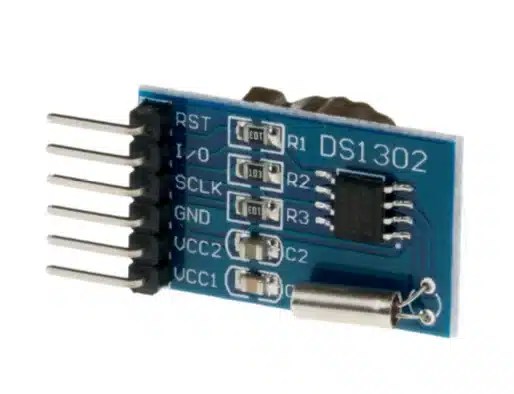

Pin configuration :
VCC2 → 5 V/3.3V
GND → GND
CLK → P02
DAT → P01
RST → P00
Features of DS1302 RTC Real Time Clock Module :
- Crystal 32.768KHz, matching capacitance 6pF
- DS1302 8-pin SMD homemade chips
- Seconds, Minutes, Hours, Day of Month, Day of Week, and Year
Package Includes:
- 1 x DS1302 Real Time Clock Module without CR2032 Battery
