KY-017 Mercury Medallion Module
Original price was: ₹99.00.₹29.00Current price is: ₹29.00. (Excl. 18% GST)
Price (Excl. GST): ₹29.00
Price (Incl. GST): ₹34.22
- Economic, Reliable and Small in size
- Operating voltage 3.2Vdc-5Vdc
- Output LED light Indicator
- 3 Pin sensor Module
- High Sensitivity
| Weight | 2 g |
|---|---|
| Dimensions | 22 × 24 × 25 mm |
28 in stock
179 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.

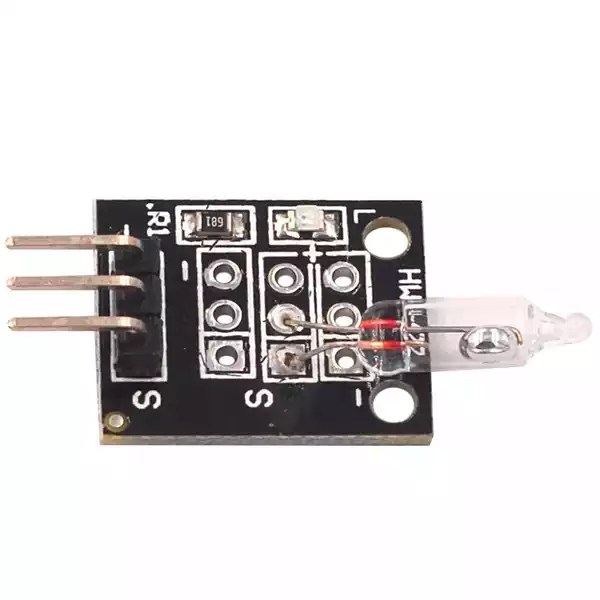

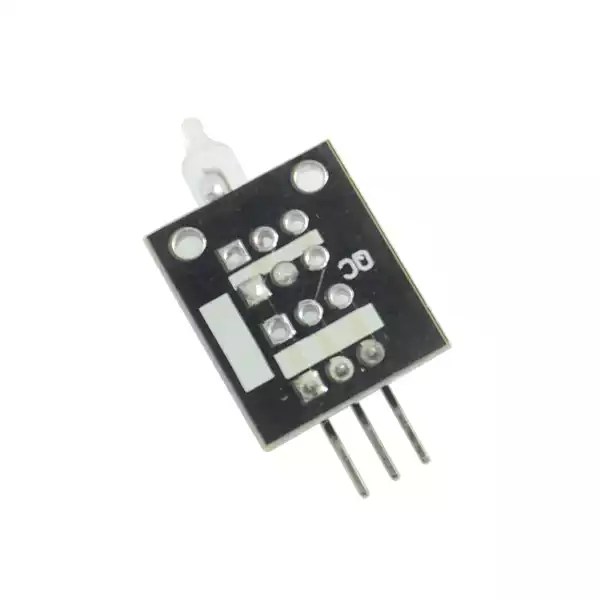

The KY-017 Mercury Medallion Module combines a mercury switch, a 680Ω resistor, and an LED to create a tilt-sensitive lighting effect. When the module is tilted, the mercury ball inside the switch shifts, either completing or breaking the circuit. This action turns the LED on or off based on the module’s orientation.
Equipped with a digital 13 interface, the module integrates easily with microcontrollers like Arduino. This setup allows for the creation of a simple circuit that responds to tilt by lighting up the LED. Additionally, the mercury tilt switch connects to a digital 3 interface, which detects the tilt and controls the LED. When the switch is tilted, the LED lights up; when it’s not, the LED stays off. This setup provides clear and responsive visual feedback based on the module’s position.
Features of KY-017 Mercury Medallion Module:
- Output LED light Indicator
- 3 Pin sensor Module
- Input voltage: 3.3V to 5.5V
- Input current : 0.3mA.
- Number of pins: 3. ( GND, VCC, SIGNAL )
- Sensitivity: High.
- Suitable for DIY projects
Package Includes:
- 1 x Mercury Medallion Module
