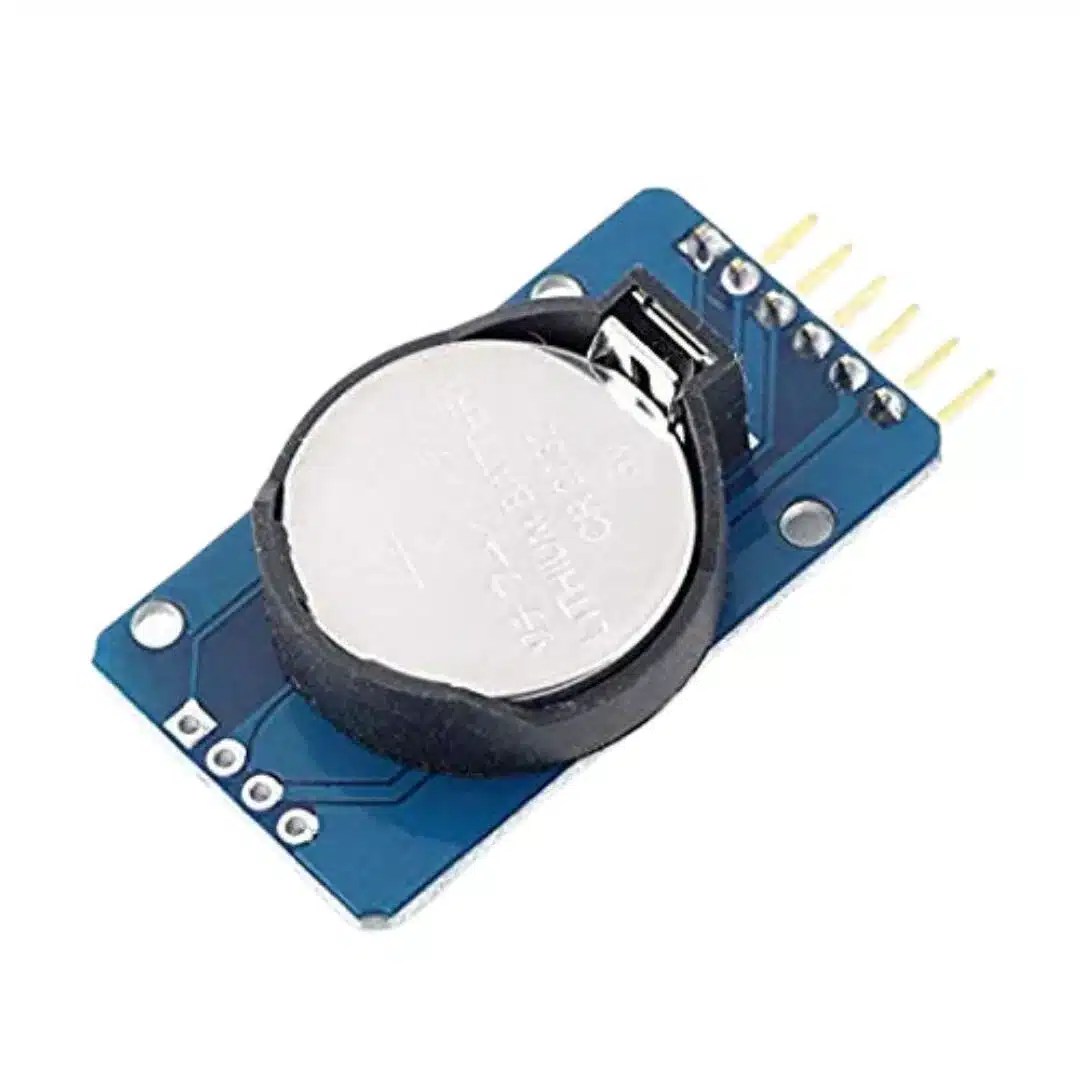

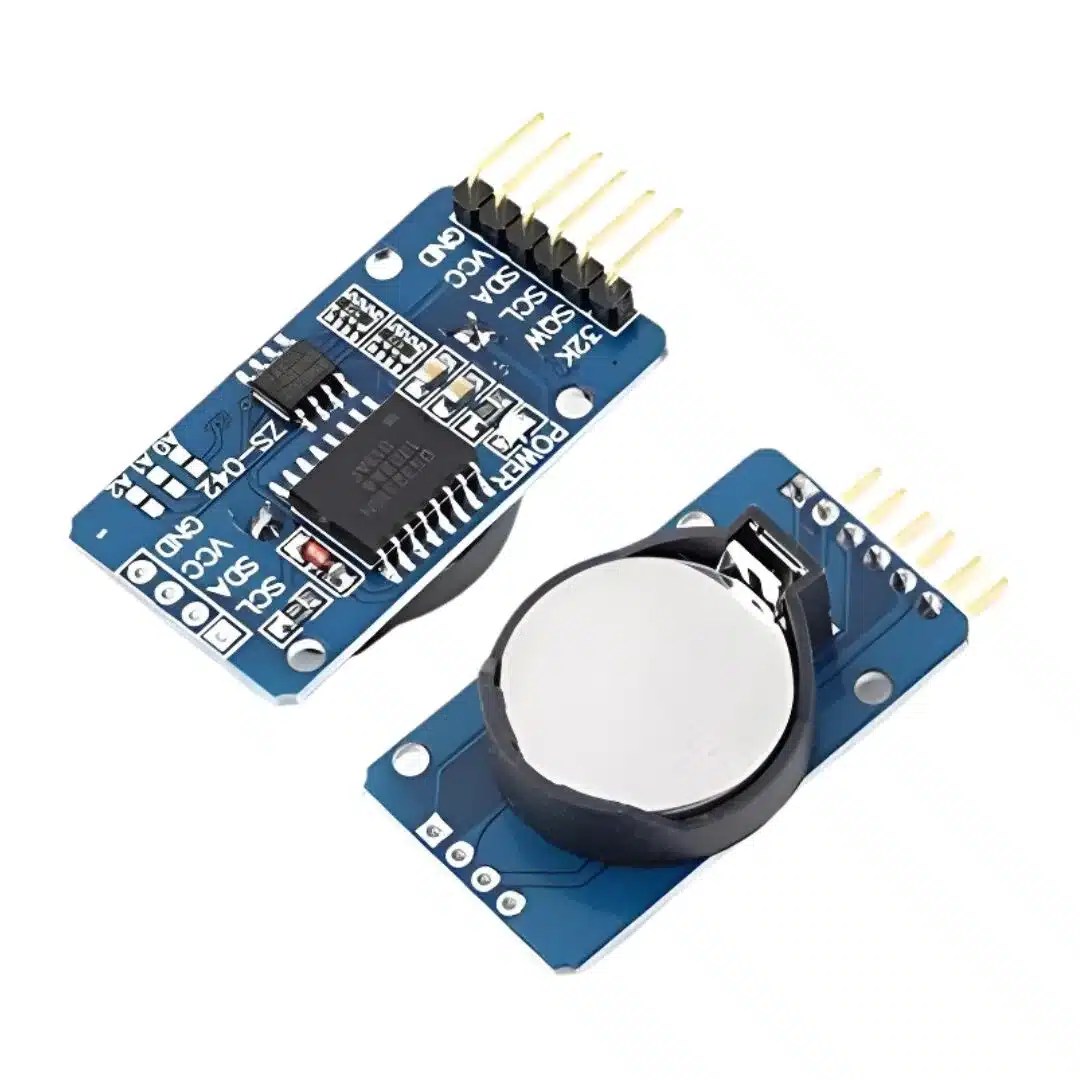

DS3231 AT24C32 I2C Module Precision RTC Module without CR2032 Battery
Original price was: ₹599.00.₹125.00Current price is: ₹125.00. (Excl. 18% GST)
Price (Excl. GST): ₹125.00
Price (Incl. GST): ₹147.50
- 1 Hz output pin SQW.
- 32 KHz output pin 32K.
- Voltage Supply: 2.2 V ~ 5.5 V (for RTC).
- Time Format: HH: MM: SS (12/24 hr).
- Date Format: YY-MM-DD-dd.
- DS 3231 based RTC with 2032 Battery Holder.
| Weight | 8 g |
|---|---|
| Dimensions | 38 × 22 × 14 mm |
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The DS3231 AT24C32 I2C RTC Module is a highly precise Real-Time Clock Module equipped with a 32Kbit EEPROM and an integrated 10-bit temperature sensor with a resolution of 0.25°C. This module stands out due to its low-cost yet exceptional accuracy, featuring an integrated temperature-compensated crystal oscillator (TCXO) and a crystal that enhance its timekeeping precision.
The DS3231’s TCXO ensures that the clock maintains high accuracy across a wide range of temperatures, minimizing drift and the need for frequent recalibration. The module also includes a battery input, which ensures that timekeeping remains consistent even if the main power is disrupted. This makes the DS3231 ideal for applications where stable and reliable timekeeping is crucial.
Available in both commercial and industrial temperature ranges, the DS3231 is housed in a 16-pin, 300-mil SO package. For detailed specifications and further technical information, refer to the DS3231 datasheet.
Features of DS3231 AT24C32 I2C RTC Module :
- Two Time-of-Day Alarms.
- Digital Temp Sensor Output.
- Register for Aging Trim.
- DS 3231 RTC with 2032 Battery Holder.
- Highly Accurate RTC Completely Manages All Timekeeping Functions.
- Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year, with Leap-Year Compensation Valid Up to 2100.
- Configurable I2C device Address for AT24C32 using SMD jumpers on PCB (A0, A1, A2).
- Programmable Square-Wave Output Signal.
- Battery-Backup Input for Continuous Timekeeping.
- Low Power Operation Extends Battery-Backup Run Time.
Package Includes :
- 1 x DS3231 Precise Real-Time Clock Module Memory Module without CR2032 Battery
