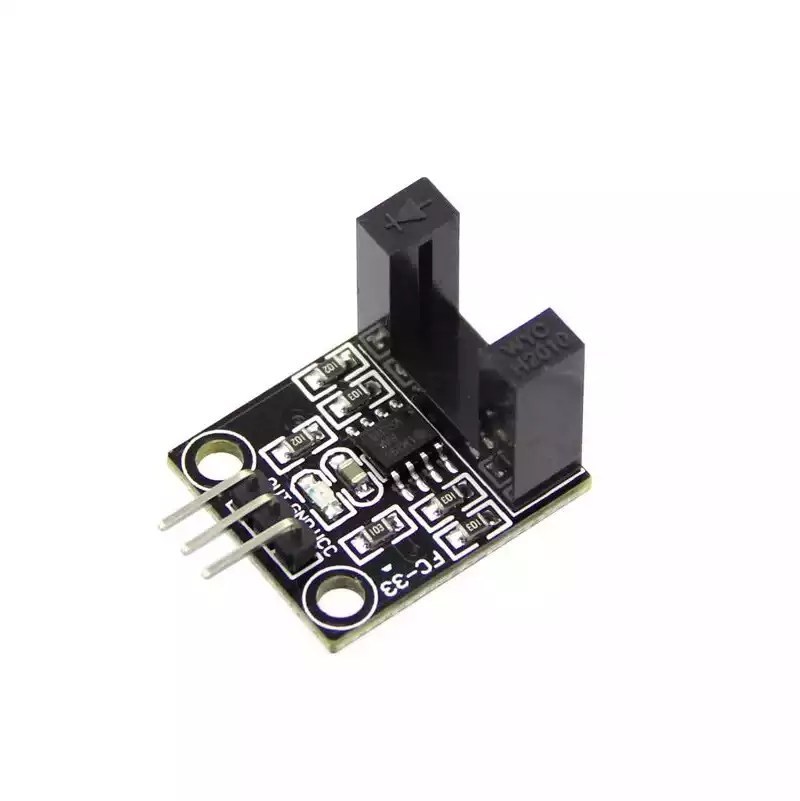

Correlation Photoelectric Infrared Count Slot Sensor 10mm

The Correlation Photoelectric Infrared Count Slot Sensor 10mm is an efficient and compact infrared counter designed for various counting applications. With its small footprint and integrated LM393 chip, this module is both cost-effective and highly functional.

The sensor operates by emitting infrared light to detect interruptions in its beam, allowing it to accurately count objects passing through the designated slot. This makes it suitable for a wide range of uses, including counting items on production lines, tracking attendance, and even applications in robotics.

Thanks to its high sensitivity and reliable performance, the Correlation Photoelectric Infrared Count Slot Sensor is perfect for projects that require precise monitoring. It is also compatible with various microcontrollers, such as Arduino and Raspberry Pi, making it ideal for DIY projects and professional setups. Whether for educational purposes or industrial use, this module is a valuable tool for anyone looking to incorporate infrared sensing technology into their designs.

It works as,

1. The OUT pin is a low level when there is no object between the photoelectric sensor, and the red LED is lit.
2. The OUT pin is a high level when there is an object between the photoelectric sensor, and the green LED is not bright.
3. The OUT port can be connected to MCU directly, Than MCU can calculate how many circles the smaller car has run per unit

Correlation Photoelectric Infrared Count Slot Sensor 10mm Features:

• The width of the optical coupling slot: 10mm
• With a signal output indication.
• Single signal output
• The circuit board output switch!
• The output valid signal is low.
• It is useful for workpiece counts.
• It’s also useful for industry counting, motor speed testing .

Package Includes:

• 1 x Correlation Photoelectric Infrared Count Slot Sensor 10mm
