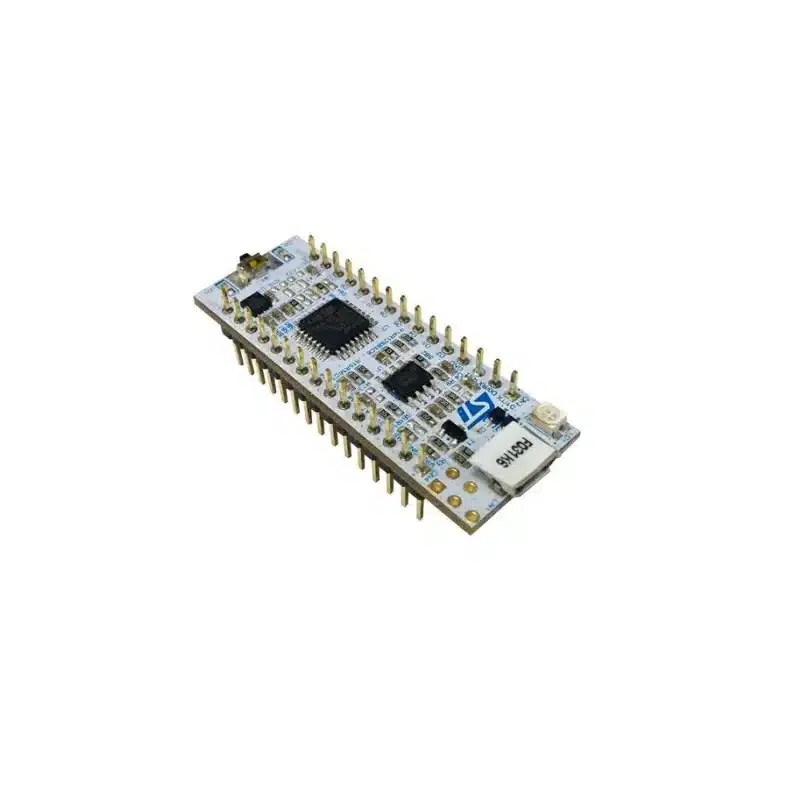

NUCLEO-F303K8 Development Board, STM32 Nucleo-32, STM32F303K8 MCU Eval Board, On Board Debugger, Arduino Nano Extension, Reset Push Button
Original price was: ₹1,900.00.₹1,501.00Current price is: ₹1,501.00. (Excl. 18% GST)
Price (Excl. GST): ₹1,501.00
Price (Incl. GST): ₹1,771.18
- Product: NUCLEO-F303K8 Development Board
- Core Architecture: ARM
- Extension with Arduino™ nano connectivity
- Core Sub-Architecture: Cortex-M4
- Silicon Family Name: STM32F3
- Silicon Core Number: STM32F303K8
- Silicon Manufacturer: STMicroelectronics
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
This is an STMicroelectronics NUCLEO-F303K8 Development Board, STM32F303K8 MCU, On Board Debugger, Arduino Nano Extension, Reset Push Button.
The NUCLEO-F303K8 is an STM32 Nucleo-32 Development Board with an STM32F303K8 microcontroller that allows users to try out new concepts and build prototypes with the STM32 microcontroller, choosing from the various combinations of performance, power consumption, and features.
The Arduino™ nano connectivity makes it easy to expand the functionality of the STM32 Nucleo open development platform with a choice of specialized shields. The board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer and comes with the STM32 comprehensive software HAL library, various packaged software examples, and direct access to the ARM®mbed™on-line resources.
For Datasheet click Here.
STM32F303K8 Development Board Features
- Extension with Arduino™ nano connectivity
- On-board ST-LINK/V2-1 debugger/programmer with SWD connector – USB VBUS, external source
- USB communication (LD1), power LED (LD2), user LED (LD3)
- Reset push-button
- Supported by a wide choice of IDEs including IAR™, Keil®, GCC-based IDEs (AC6 SW4STM32)
Specs
| Item Type: | Dev. Board, On Board Debugger |
|---|---|
| Based On: | STM32 Based |
| Microcontroller | STM32F303K8 |
| Processor | ARM |
| Power Supply | USB VBUS External source |
| Shipping Weight | 0.000044 kg |
| Shipping Dimensions | 16 × 14 × 4 cm |
Datasheet
Package Includes
- 1 x NUCLEO-F303K8 Development Board, STM32 Nucleo-32, STM32F303K8 MCU Eval Board
* Product Images are shown for illustrative purposes only and may differ from the actual product.
