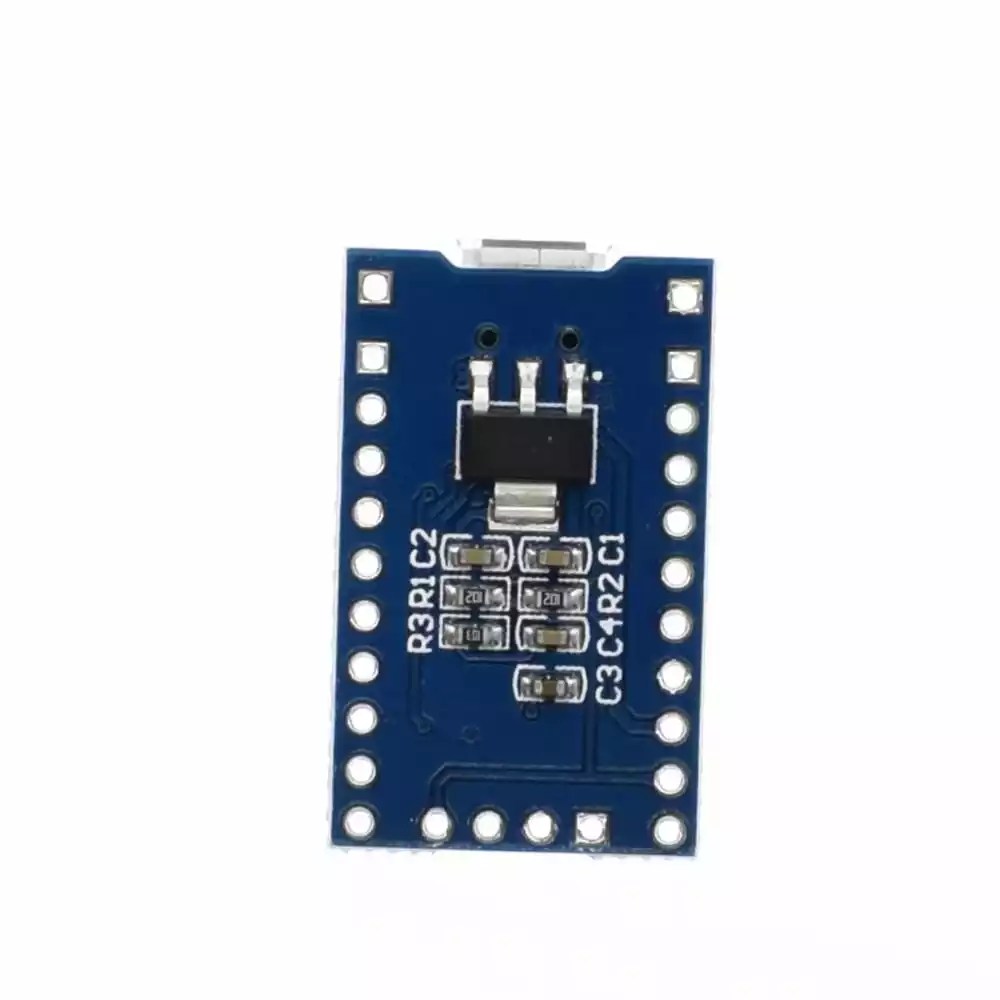

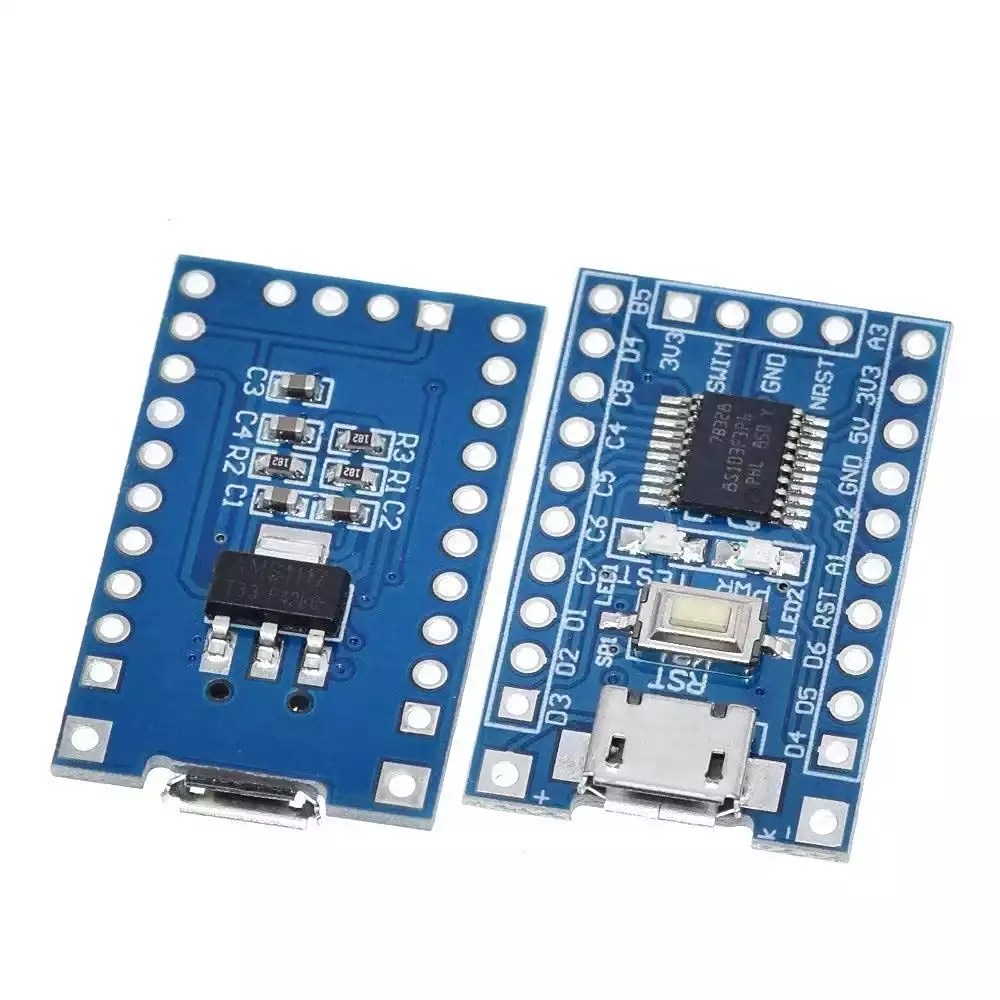

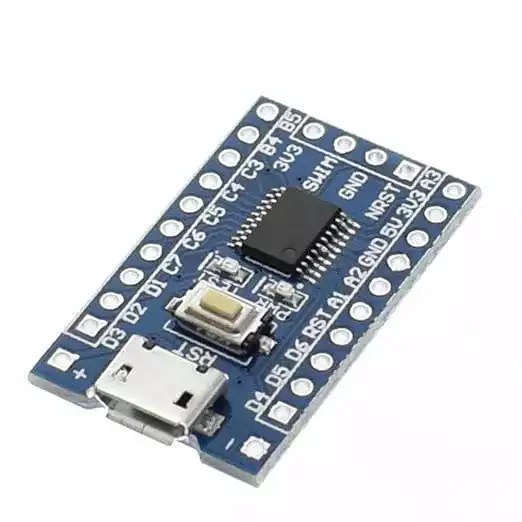

Core Board STM8S103F3P6 STM8 Development Board Minimum System Board
Original price was: ₹256.00.₹93.22Current price is: ₹93.22. (Excl. 18% GST)
Price (Excl. GST): ₹93.22
Price (Incl. GST): ₹110.00
- Chipboard STM32F103C8T6
- On board, SWIM interface and reset button
- Micro USB line or the 2.54 pin to link to the power with the input voltage 4.5V-15V.
- Power light and the Demo indicator light
- Leads all the pins and has detailed label for the Pins.
- Support SWIM debug mode.
| Weight | 4 g |
|---|---|

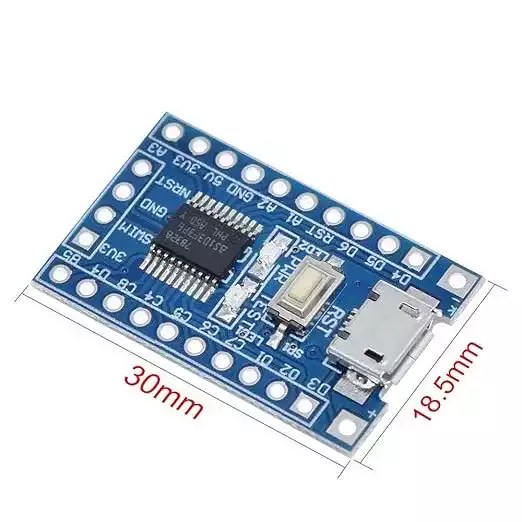

| Dimensions | 30 × 20 × 5 mm |
1 in stock
Out of stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The Core Board STM8S103F3P6 STM8 Development Board Minimum System Board offers several advantages, including its use of a Micro USB for power connection. This is compatible with standard smartphone cables, making data transfer convenient. Unlike older USB MINI cables, which are becoming rare and outdated, the Micro USB provides a more accessible and modern solution.
Notable for its affordability, user-friendly design, and comprehensive documentation, this STM8S development board stands out in the market.
The board allows for power input through either the 2.54 pin header or the power supply pad. When using the power supply pad, it supports an input voltage range of 4.5V-15V and can output 3.3V to external devices.
By utilizing a Micro USB cable, which is commonly available and easy to obtain, the board avoids the now less common USB MINI connections. This makes it more practical for users, saving both time and effort. With its low price, thoughtful design, and complete data resources, this development board offers an excellent balance of cost-effectiveness and functionality.
Features of STM8S103F3P6:
- Chipboard STM32F103C8T6
- On board, SWIM interface and reset button
- Micro USB line or the 2.54 pin to link to the power with the input voltage 4.5V-15V.
- Power light and the Demo indicator light
- Leads all the pins and has detailed label for the Pins.
- Support SWIM debug mode.
Package Includes :
1 x Core Board STM8S103F3P6 STM8 Development Board
