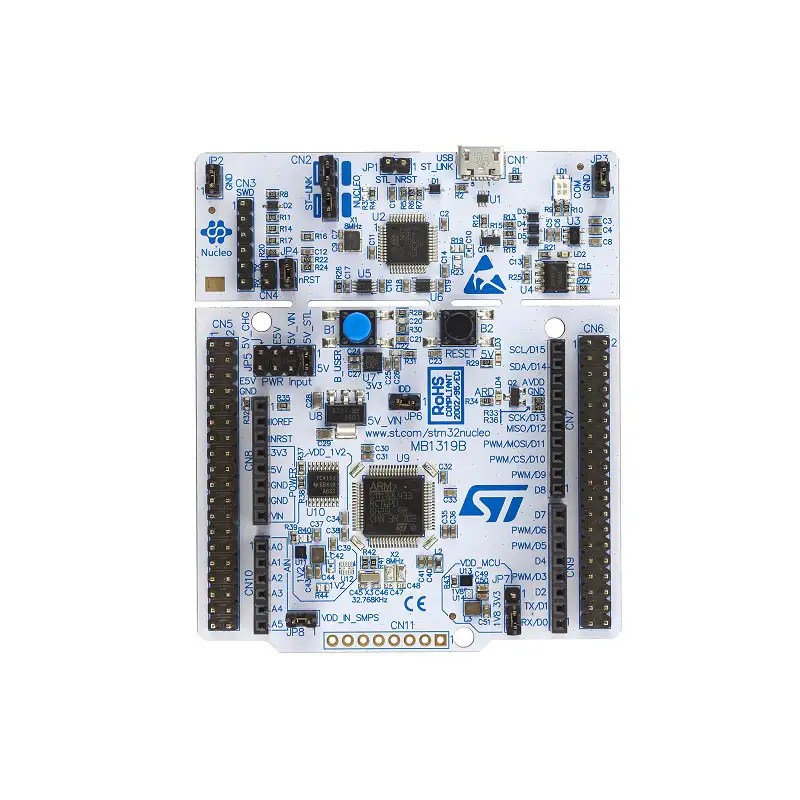

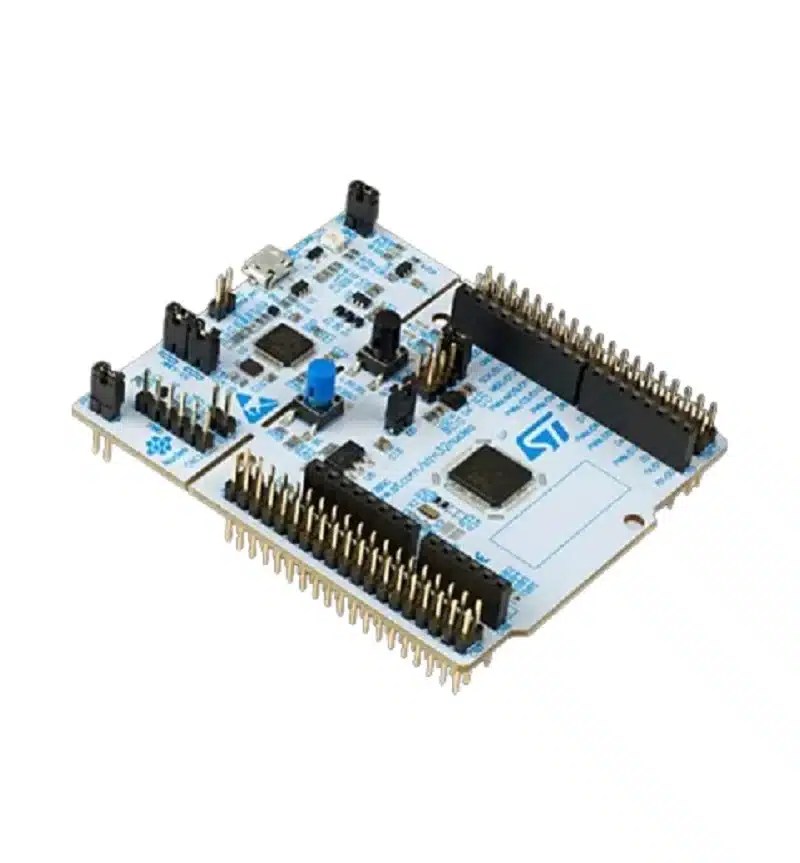

NUCLEO-G474RE Development Board, STM32 Nucleo-64, STM32G474RE MCU, Arduino Uno & ST Morpho Connectivity
Original price was: ₹3,500.00.₹1,800.00Current price is: ₹1,800.00. (Excl. 18% GST)
Price (Excl. GST): ₹1,800.00
Price (Incl. GST): ₹2,124.00
- Product: NUCLEO-G474RE Development Board
- Core Architecture: ARM
- Core Sub-Architecture: Cortex-M4
- Silicon Family Name: STM32G4
- Silicon Core Number: STM32G474RE
- Silicon Manufacturer: STMicroelectronics
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
NUCLEO-G474RE STM32G474RE Development Board
This is an STMicroelectronics NUCLEO-G474RE Development Board.
STM32 Nucleo-64 board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller. The external SMPS significantly reduces power consumption in Run mode for the compatible boards.
The ARDUINO® Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields. The STM32 Nucleo-64 board does not require any separate probe as it integrates the ST-LINK debugger/programmer. The STM32 Nucleo-64 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.
STM32 Nucleo-64 Board Features
- 1 user LED shared with Arduino™ and 1 user and 1 reset push-button
- 32.768KHz crystal and Arduino™ Uno V3 expansion connector
- ST morpho extension pin headers for full access to all STM32 I/Os
- Flexible power-supply options: ST-LINK, USB VBUS, or external sources
- On-board ST-LINK debugger/programmer with USB re-enumeration capability
- Support of a wide choice of IDEs including IAR™, Keil®, and GCC-based IDE
- External SMPS to generate Vcore logic supply, 24MHz HSE, and cryptography
- User USB device full speed, or USB SNK/UFP full speed
- STLINK-V3E on USB Micro-B connector, 24MHz HSE, MIPI® debug connector
- 64-pin LQFP package
NUCLEO-G474RE STM32G474RE Specifications
| Item Type: | Dev. Board |
|---|---|
| Length (mm): | 90 |
| Width (mm): | 75 |
| Height (mm): | 10 |
| CPU Frequency | 32.768KHz |
| MCU Series | STMG474RET6U |
| Shipping Weight | 0.075 kg |
| Shipping Dimensions | 12 × 10 × 5 cm |
Datasheet
Package Includes
- 1 x NUCLEO-G474RE Development Board, STM32 Nucleo-64, STM32G474RE MCU, Arduino Uno & ST Morpho Connectivity
* Product Images are shown for illustrative purposes only and may differ from the actual product.
