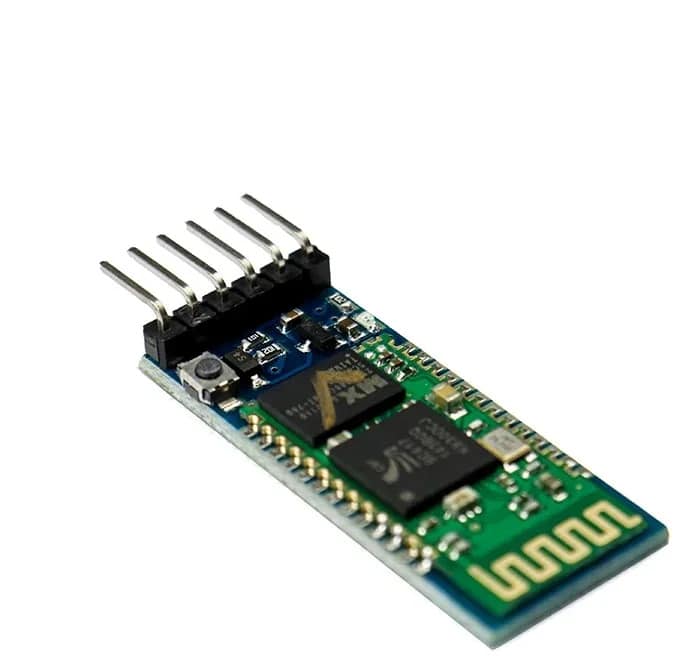

HC-05 6pin Bluetooth Module with Button
Original price was: ₹355.00.₹230.00Current price is: ₹230.00. (Excl. 18% GST)
Price (Excl. GST): ₹230.00
Price (Incl. GST): ₹271.40
- Profiles: Bluetooth serial port Profile
- Bluetooth protocol: Bluetooth Specification v2.0+EDR
- Frequency: 2.4GHz ISM band
- Modulation: GFSK(Gaussian Frequency Shift Keying)
- Emission power: ≤4dBm, Class 2
- Sensitivity: ≤-84dBm at 0.1% BER
- Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps
- Security: Authentication and encryption
- Power supply: +3.3VDC 50mA
- Working temperature: -20 ~ +75Centigrade
- Dimension: 26.9mm x 13mm x 2.2 mm
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The HC-05 6pin Bluetooth Module with Button is a popular and versatile module designed for adding Bluetooth wireless communication capabilities to your microcontroller-based projects. It communicates using the UART (Universal Asynchronous Receiver/Transmitter) protocol, making it easy to integrate with development platforms like Arduino, Raspberry Pi, ESP32, STM32, and others.
The HC-05 module stands out for its ability to operate in both master and slave modes, which means it can not only connect to Bluetooth-enabled devices like smartphones, tablets, or laptops (as a slave) but can also initiate communication with other slave devices (as a master). This is in contrast to the HC-06 module, which operates only in slave mode and cannot initiate connections. This added flexibility of the HC-05 makes it ideal for building wireless sensor networks, remote control systems, and inter-device Bluetooth communication.

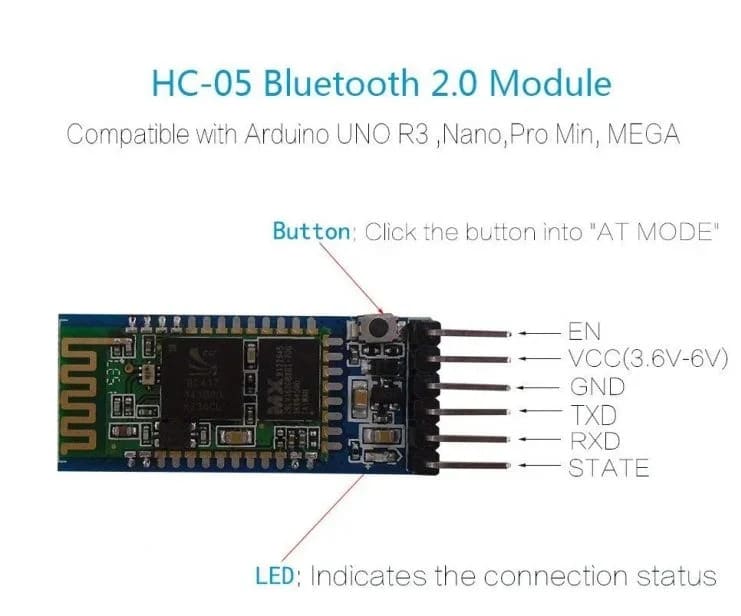

The module features 6 pins: Key, VCC, GND, TXD, RXD, and State. The TXD and RXD pins are used to transmit and receive serial data, while VCC and GND provide the power supply. The Key pin is used to switch the module into AT command mode for configuration, and the State pin can indicate the connection status.
With a standard operating voltage of 3.3V to 5V and a range of up to 10 meters, the HC-05 is widely used in wireless robot control, Bluetooth data logging, home automation, wireless serial communication, and countless IoT projects. Its compact size, low power consumption, and ease of use make it a favorite among electronics hobbyists and students.
If you’re looking to build a Bluetooth-controlled robot, remote sensor system, or even a custom wireless communication interface, the HC-05 Bluetooth module is a reliable and cost-effective solution.
Applications
- Embedded Projects.
- Industrial Applications.
- Computer and Portable Devices.
- GPS receiver.
Features
- Working current: matching for 30 mA, matching the communication for 8 mA.
- Dormancy current: no dormancy.
- Used for a GPS navigation system, water, and electricity gas meter reading system.
- With the computer and Bluetooth adapter, PDA, seamless connection equipment.
- Bluetooth module HC-08 Master and slave Two in one module.
- Use the CSR mainstream Bluetooth chip, Bluetooth V2.0 protocol standards.
- Potter default rate of 9600, the user can be set up.
- Bluetooth protocol: Bluetooth Specification v2.0+EDR
- Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps.
- Security: Authentication and encryption.
- Profiles: Bluetooth serial port.
Package Includes
- 1 x HC-05 6pin Bluetooth Module with Button
