Official Texas Instruments TMDSDOCK28335 – Development Boards & Kits – TMS320 TMS320F28335 Experimenter Kit
Original price was: ₹24,999.00.₹17,000.00Current price is: ₹17,000.00. (Excl. 18% GST)
Price (Excl. GST): ₹17,000.00
Price (Incl. GST): ₹20,060.00
- TMDSCNCD28335: TMS320F28335 DIMM100 based controlCARD
- DIMM100 Docking Station baseboard with DIMM100 controlCARD female connector
- XDS100v1 USB-to-JTAG Debug Probe enables real-time in-system programming and debugging
- Header pin access to key MCU signals – including most major digital IO and analog inputs
- Breadboard area for customizable routing/prototyping
- Board power can be provided by the provided USB cable or a 5V barrel supply
- Hardware Files are in C2000Ware at boards\controlCARDs\TMDSCNCD28335
1 in stock
1 × ESP32 ESP-WROOM-32 Development Board(CH340+Type-C+38PIN)
Out of stock
Original price was: ₹632.00.₹350.00Current price is: ₹350.00. (Excl. 18% GST)
1 × KUONGSHUN ESP32-CAM Development Board Test Board WiFi+ Bluetooth Module ESP32 Serial Port with OV2640 Camera
Out of stock
Original price was: ₹1,899.00.₹999.00Current price is: ₹999.00. (Excl. 18% GST)
Original price was: ₹622.00.₹340.00Current price is: ₹340.00. (Excl. 18% GST)
0
People watching this product now!
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
Description
TMDSDOCK28335 is a DIMM100 controlCARD based evaluation and development tool for the C2000™ Delfino™ F2833x series of microcontroller products. The docking station provides power to the controlCARD and has a bread-board area for prototyping. Access to the key device signals are available using a series of header pins.
Features
Hardware Features

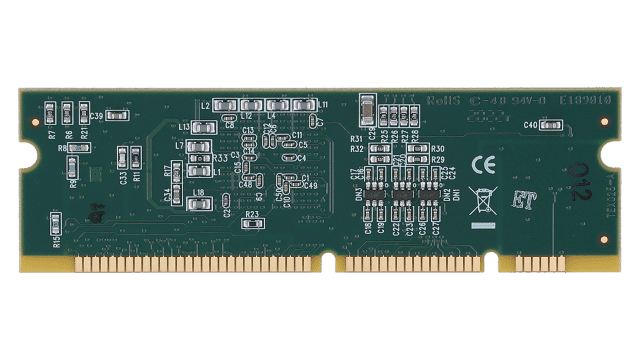

- TMDSCNCD28335: TMS320F28335 DIMM100 based controlCARD
- DIMM100 Docking Station baseboard with DIMM100 controlCARD female connector
- XDS100v1 USB-to-JTAG Debug Probe enables real-time in-system programming and debugging
- Header pin access to key MCU signals – including most major digital IO and analog inputs
- Breadboard area for customizable routing/prototyping
- Board power can be provided by the provided USB cable or a 5V barrel supply
- Hardware Files are in C2000Ware at boards\controlCARDs\TMDSCNCD28335
Software Features
- Free download of Code Composer Studio IDE
- Free download of controlSUITE for device drivers and example projects
- Several C2000 workshops were created to help teach users about the F2833x family of devices
- The 2010 C2000 Teaching ROM was built around a similar TMDSPREX28335 kit and can serve as a good reference.
- MathWorks Embedded Coder support
- solidThinking Embed Support
Get Started
- Install controlSUITE
- Install Code Composer Studio IDE
- Open the Quick Start guide: Experimenter Kit Overview
- Ask questions on the TI C2000 e2e forum
- Datasheet
Package Includes
- 1x TMS320F28335 Experimenter Kit
