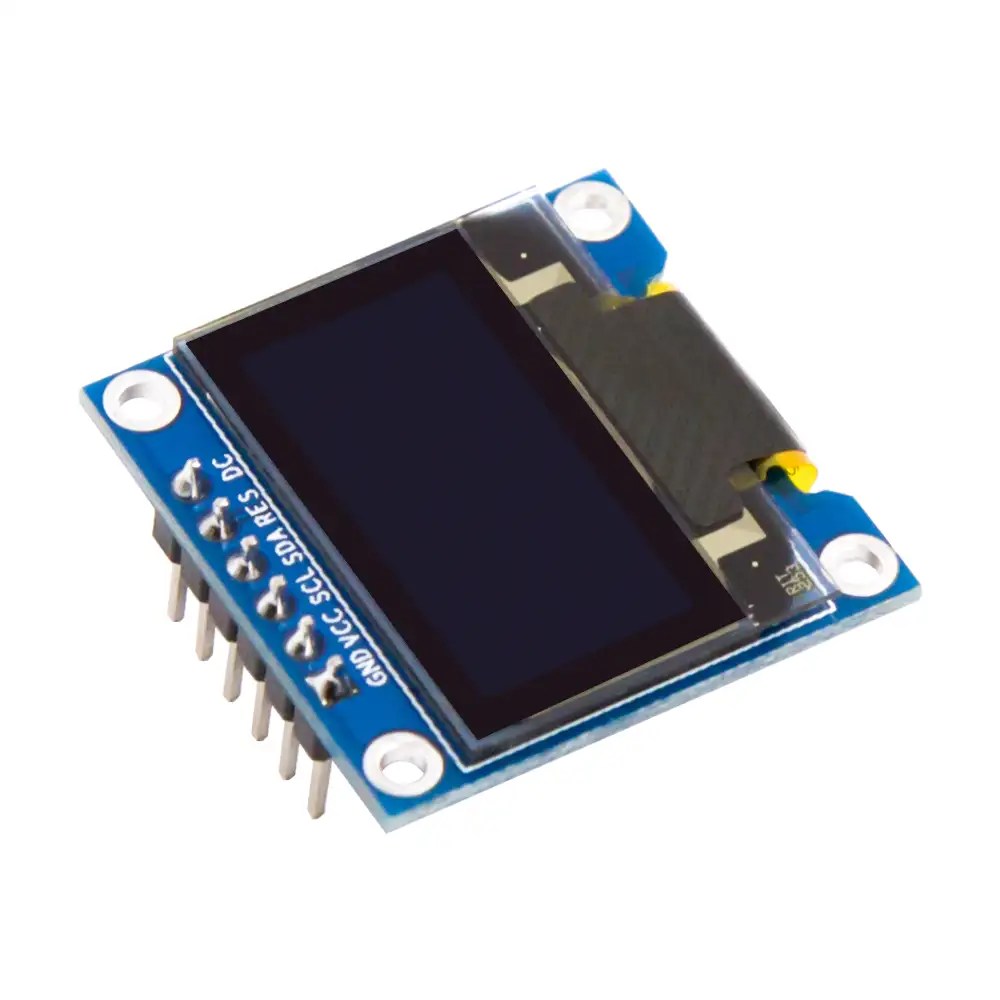

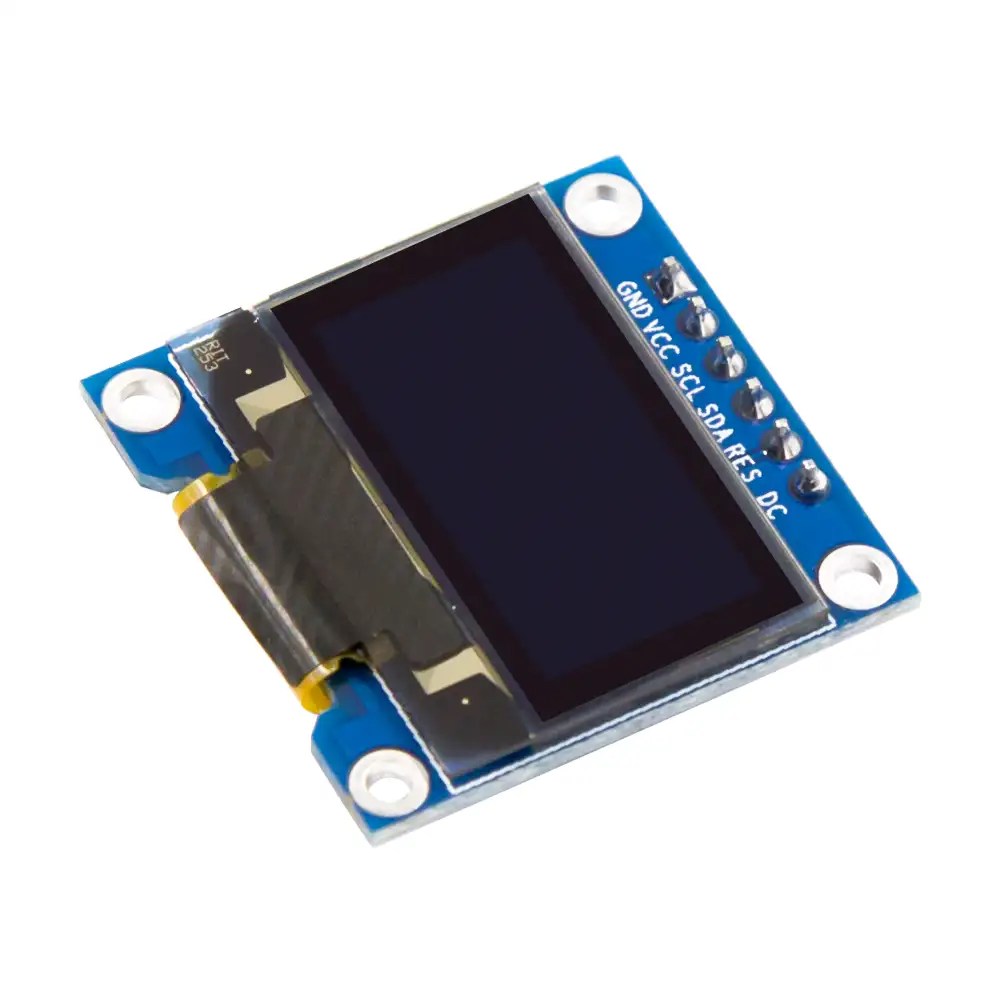

0.96 Inch SPI 6-Pin OLED Display Module (BLUE)
Original price was: ₹484.00.₹260.00Current price is: ₹260.00. (Excl. 18% GST)
Price (Excl. GST): ₹260.00
Price (Incl. GST): ₹306.80
- Size: 0.96 inch
- Resolution: 128 x 64
- Controlling Driver Chip: SSD1306
- Display Area: 21.74 x 10.86mm
- Driving Voltage: 3.3-5V
- Operating Temperature: -40~70 Celsius
- Interface Type: SPI
- Light Color: BLUE
- Number of pins: 6
1 in stock
Out of stock
Out of stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The 0.96-inch SPI OLED LCD Module with a 6-pin interface, featuring connections for VCC and GND, and powered by the SSD1306 Chip, serves as a compact yet versatile display module commonly used in various electronics projects and prototyping endeavors. Its OLED display type ensures high contrast, wide viewing angles, and low power consumption, making it an efficient choice for applications where energy efficiency is crucial. With a 0.96-inch diagonal screen size and typically supporting a resolution of 128×64 pixels, this module provides clear and crisp text and graphics suitable for small-scale displays. Utilizing the SPI communication interface facilitates fast and efficient data transfer between the module and microcontroller, while the SSD1306 chipset drives the OLED panel and manages display functionalities. Operating at 3.3V or 5V, depending on application requirements, it’s adaptable to various projects, from wearable devices to embedded systems. Its ability to display text, graphics, and simple animations makes it ideal for showcasing sensor data, system status, or user interface elements. Easily integrated into existing circuits or microcontroller projects using compatible libraries or software drivers, the 0.96-inch SPI OLED LCD Module with the SSD1306 Chip offers a compact, versatile, and energy-efficient display solution for a wide range of electronic applications.
Specification
Size: 0.96-inch OLED
Material: PM OLED
Resolution: 128*64
Interface type: SPI
Working voltage: 3.3V
Control chip: SSD1306
Display area: 21.744*10.864mm
Module size: 27.3*27.8mm
Pixel pitch: 0.17*0.17mm
Pixel size: 0.154*0.154mm
Number of pins: 6
Viewing direction: >160°
Working temperature: -40~70 degrees

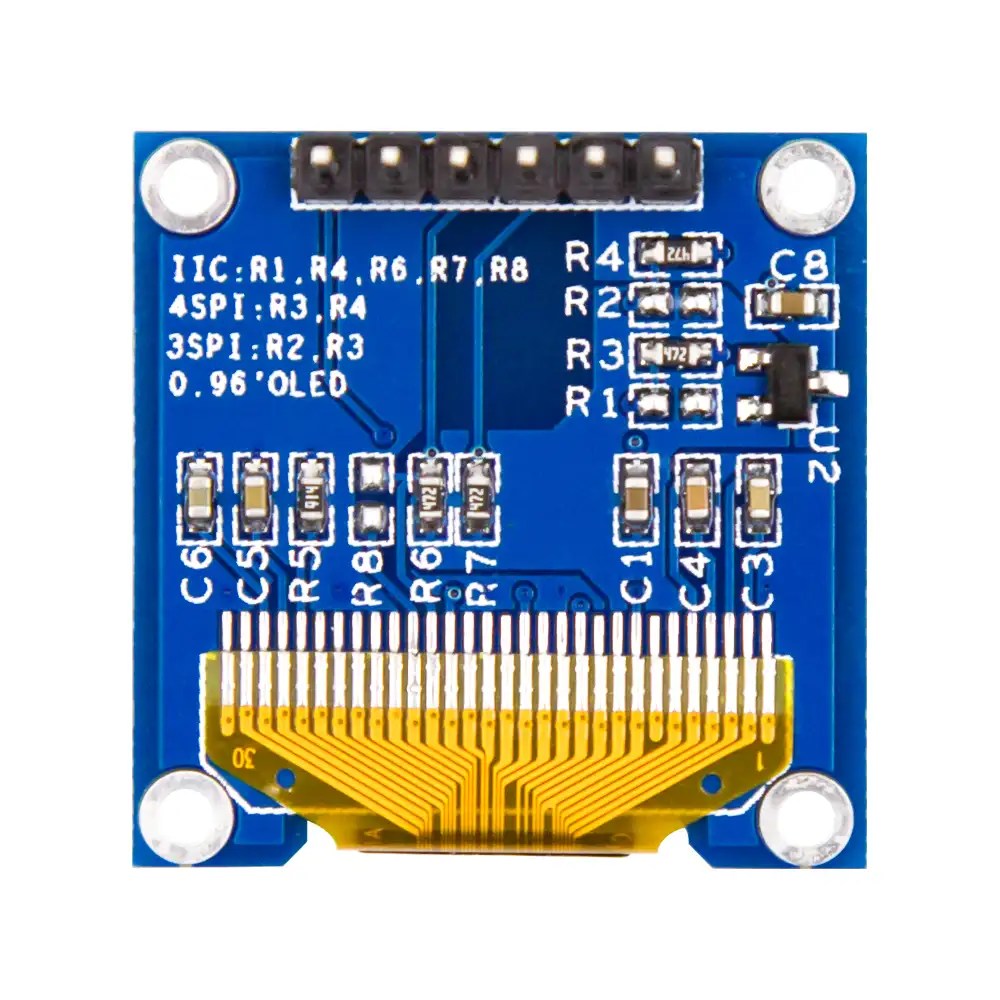

Pin Definition
- GND: power ground wire
- VCC: positive pole of power supply
- SCL: SPI clock line
- SDA: SPI data line
- RST: Display reset
- DC: Data command selection pin
Applications
- Watch
- Head-mounted displays
- Meters
- Other intelligent instruments.
Downloads
Package Include
1 x 0.96 Inch SPI 6-Pin OLED Display Module 6pin (with VCC GND) SSD1306 Chip
