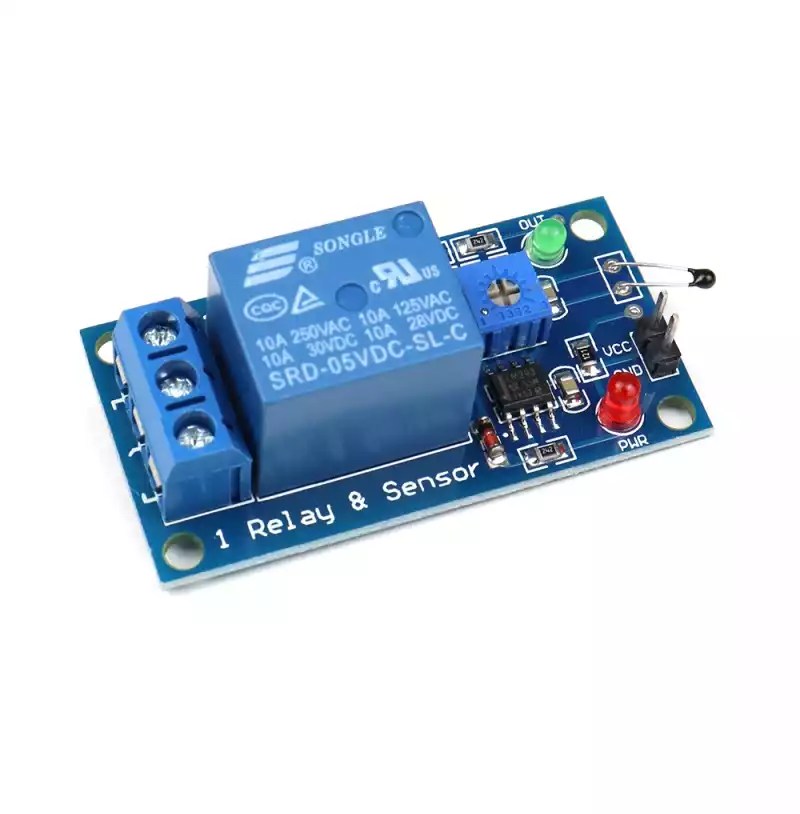

5V Thermal sensor module relay module
Original price was: ₹351.00.₹145.00Current price is: ₹145.00. (Excl. 18% GST)
Price (Excl. GST): ₹145.00
Price (Incl. GST): ₹171.10
- Supply voltage: 5VDC
- Current: greater than 150mA
- Switching Voltage: 250VAC@10A; 30VDC@10A
| Weight | 16 g |
|---|---|
| Dimensions | 50 × 26 × 17 mm |
10 in stock
6 in stock
17 in stock
26 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The 5V Thermal sensor module relay module is a versatile and user-friendly device designed to control electrical loads based on temperature fluctuations. This self-contained switching module operates by energizing or de-energizing a relay depending on the ambient temperature. To use it, simply connect a 5V power supply and attach the load you wish to control. The built-in potentiometer allows users to easily adjust the temperature threshold at which the relay switches between ON and OFF states.
This module is perfect for various applications, such as automatically turning on an exhaust fan when temperatures exceed a set level, making it ideal for greenhouses or aquarium rooms. Conversely, it can be used to activate a heating device when the temperature falls below a specified threshold, ensuring optimal conditions for plants or aquatic life. Its reliable performance and straightforward design make the Thermal Sensor Relay Module a valuable addition to any temperature control system.
Features:
- Operating Voltage: 3.3 ~ 5VDC
- Maximum Voltage: 5VDC
- Maximum Operating Current: 0.15A
- Trigger Voltage: 5VDC
- Switching Voltage: 250VAC@10A
- Switching Voltage: 30VDC@10A
- Operating Temperature: -40 ~ 100°C
- Opt. Relative Humidity(RH: 20% ～ 85%
- Storage condition: -40 ~ 125℃
Package Includes:
- 1 x 5V Thermal sensor module relay module
