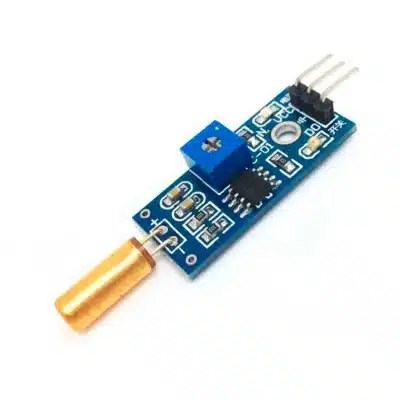

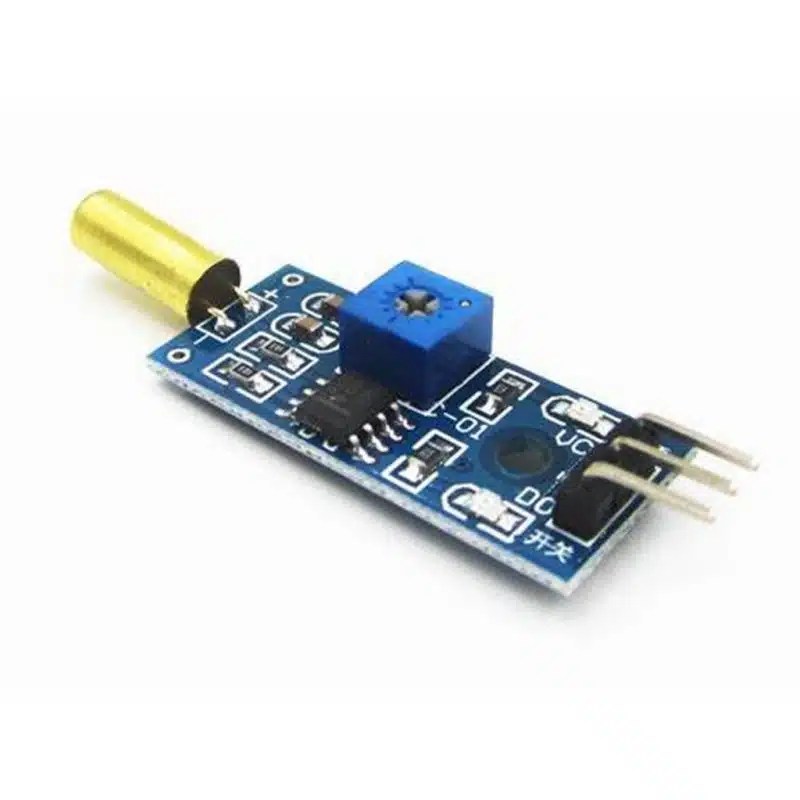

SW520D Tilt Sensor Module
Original price was: ₹100.00.₹40.00Current price is: ₹40.00. (Excl. 18% GST)
Price (Excl. GST): ₹40.00
Price (Incl. GST): ₹47.20
- Voltage supply range: 3.3V to 5V
- Maximum output current: 15mA
- Conductive time: 2ms
- Operating temperature range: 0℃ to +80℃
- Size: 3cm*2cm*1cm (L*W*H)
5 in stock
28 in stock
8 in stock
19 in stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The SW520D Tilt Sensor Module is a crucial component in modern security alarm systems, offering essential functionality for detecting orientation changes or movement. These sensors are designed to sense tilt angles or shifts, making them useful for various applications beyond security, such as in robotics and automotive systems. The SW520D Tilt Sensor Module operates using a roller-ball mechanism, which includes two conductive poles and a free-moving conductive ball. When the sensor is tilted, the ball rolls to make contact with the poles, creating a short circuit that acts as a switch.
Recent advancements in tilt sensor technology have led to improvements in accuracy, reduced costs, and increased durability. The SW520D Tilt Sensor Module can be mounted using mechanical threading, magnets, or adhesives, depending on the surface and application needs. Additionally, microcontroller-compatible versions of the SW520D module are available at affordable prices, facilitating easy integration into various electronic projects and systems.
Features:
- DC or AC signal, control, you can control the 220V AC load
- Small size, simple to use and easy installation
- Digital output
- Long lifeline
- LED indication when the switch is on
- Can work on low voltage
- Easy interface with Arduino and other controllers
Applications:
- Vibration and movement activated devices
- Stability of platform
- Test & detection device
- Security systems
- Digital cameras
- Toys
- Motors
- Robotic arms
- Vending machines
- Measuring instruments
- Hobby projects
Package Includes:
- 1 X SW-520D Tilt Vibration Sensor Module
