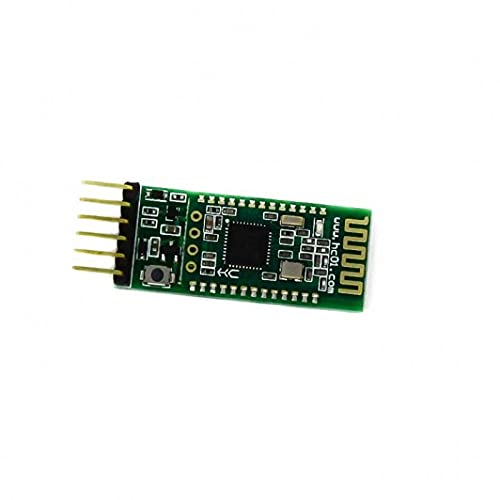

HC-08 6PIN Bluetooth Module With Button
Original price was: ₹1,100.85.₹698.00Current price is: ₹698.00. (Excl. 18% GST)
Price (Excl. GST): ₹698.00
Price (Incl. GST): ₹823.64
- Frequency: 2.4GHz ISM.
- Protocol: BLE 4.0.
- Max transmitting power: max. 4dBm.
- Modulation System: GFSK.
- Serial Baud Rate: 1200 to 115200 bps.
- Reference Distance: 80 meters.
2 in stock
13 in stock
Out of stock
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. Product Images are shown for illustrative purposes only and may differ from the actual product.
The HC-08 Bluetooth 4.0 BLE Serial Port Module is a compact, reliable, and energy-efficient wireless communication solution designed for IoT, wearable, and embedded system applications. Built on Bluetooth Low Energy (BLE) technology, the HC-08 offers significantly lower power consumption compared to classic Bluetooth, making it ideal for battery-powered devices that require long operational life.
Unlike traditional Bluetooth modules that are designed for continuous data streaming, BLE is optimized for fast, short data transfers, allowing devices to run for months or even years on a small battery. This makes the HC-08 Bluetooth BLE module perfect for smart sensors, home automation systems, health monitoring devices, and wireless control applications.
The HC-08 module is powered by the Texas Instruments CC2540 chipset, featuring 256 KB of flash memory for stable and efficient performance. Operating on the 2.4 GHz ISM band, it offers a reliable wireless range of up to 80 meters (approximately 87 yards) in open environments. The module supports serial communication (UART) and is fully configurable using AT commands, allowing users to change parameters such as baud rate, device name, and operating role (master or slave).
Compatibility is another key advantage of the HC-08. It can easily connect to iOS 5 and above and Android 4.3 and above using standard BLE serial terminal applications, ensuring wide device support. Its compact design and well-documented command set make it suitable for both beginners and professional developers.
Manufactured by an experienced Bluetooth module supplier, the HC-08 BLE module is mass-produced, well-tested, and widely adopted in commercial and DIY projects. Its proven reliability, low power consumption, and ease of integration make it a popular choice for modern Bluetooth 4.0 BLE wireless solutions.
Features
- Frequency: 2.4GHz ISM.
- Protocol: BLE 4.0.
- Max transmitting power: max. 4dBm.
- Modulation System: GFSK.
- Serial Baud Rate: 1200 to 115200 bps.
- Reference Distance: 80 meters.
- Speed: 1Mbps (Max).
- Power supply: 2.0 – 3.6 V.
- Sleep Mode Current: 0.4uA (MODE 2).
- Communication Port: UART 3.3V TTL.
- Working temperature: -20 ~ +75°C.
Package Includes
- 1 x HC-08 6PIN Bluetooth Module With Button
